CD4017 Decade Counter IC-16 Pin – 1 Pcs

Description

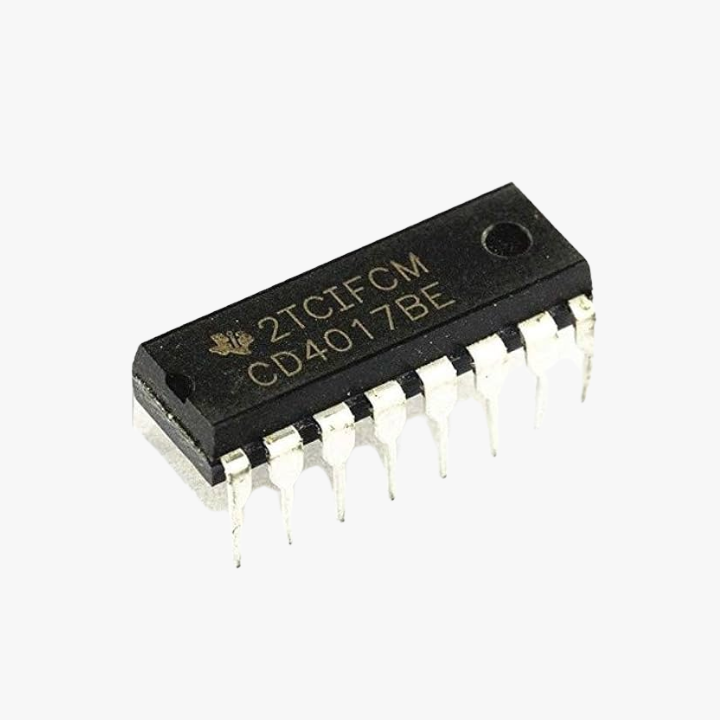

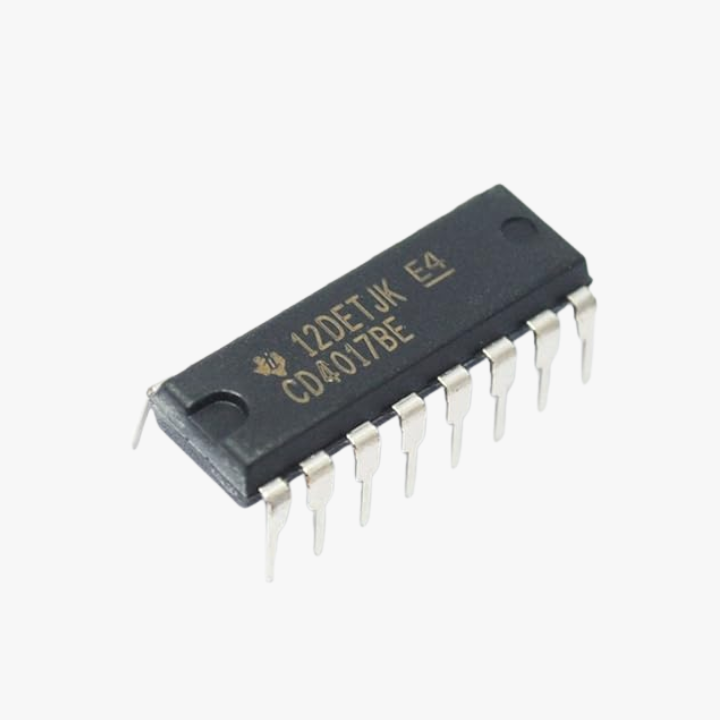

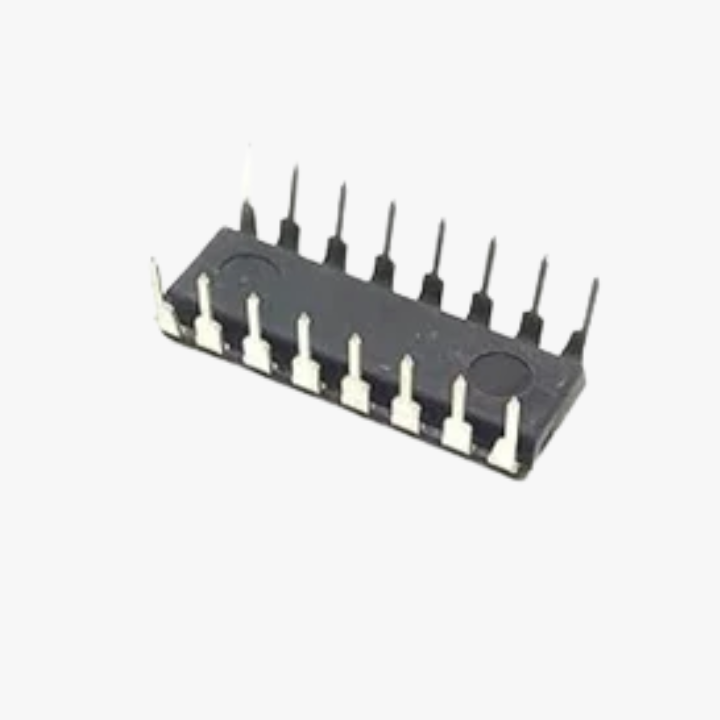

CD4017 Decade Counter IC-16 Pin – 1 Pcs

The CD4017 is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carry-out bit. It is designed for medium-speed operation and ensures a hazard-free counting sequence. With a wide supply voltage range and high noise immunity, the CD4017 is suitable for various digital applications, including LED chasers, frequency dividers, and timing circuits. Each of the 10 decoded outputs transitions to a logical “1” only at its respective time slot, staying high for one full clock cycle. The carry-out signal completes a full cycle for every 10 clock input cycles, making it useful for cascading multiple counters.

Key Features:

✔ Wide Supply Voltage Range: 3.0V to 15V for flexible operation.
✔ High Noise Immunity: 0.45 VDD (typ.) ensures reliable performance.
✔ Low Power Consumption: 10 µW (typ.) for efficient power use.
✔ Medium Speed Operation: 5.0 MHz (typ.) at 10V VDD.
✔ Fully Static Operation: No need for a minimum clock frequency.
✔ 10 Decoded Outputs: Ideal for LED sequencers and counters.
✔ Carry-Out Signal: Useful for cascading multiple ICs.
✔ TTL Compatibility: Can drive 74L TTL or 74LS devices.

Product Specifications:

⚡ Supply Voltage Range: 3.0V to 15V
⚡ Max Clock Frequency: 5.0 MHz (typ.) at 10V VDD
⚡ Power Consumption: 10 µW (typ.)
⚡ Package Type: DIP-16
📏 Applications: LED chasers, frequency dividers, sequential timers, digital clocks.

Ideal for:

🔋 LED Sequencers: Create light chasers and displays.
📟 Frequency Dividers: Divide input frequency by 10 for timing circuits.
🛠️ Digital Counters: Build reliable and precise counters for various projects.

Package Includes:

📦 1 x CD4017 Decade Counter IC-16 Pin
