LM741 Op-Amp (Operational Amplifier) IC – 2 Pcs Pack

Description

LM741 Op-Amp (Operational Amplifier) IC – 2 Pcs Pack

The LM741 Op-Amp integrated circuit is a general-purpose operational amplifier that outperforms industry standards such as the LM709. It serves as a direct, improved plug-in replacement for the 709C, LM201, MC1439, and 748. With its various features, the LM741 ensures reliable performance and ease of use in numerous applications.

Key Features:

• Overload Protection: Includes protection on both input and output.
• No Latch-Up: Prevents latch-up when the common mode range is exceeded.
• Stable Performance: Freedom from oscillations for consistent operation.
• Temperature Range: LM741C is guaranteed to operate between 0°C to +70°C, whereas LM741 and LM741A can handle -55°C to +125°C.

Applications:

• Amplifiers: Ideal for creating various types of amplifier circuits.
• Voltage Follower Circuits: Used in buffer and follower circuits.
• Clipping Amplifier Circuit: Suitable for clipping applications.
• Summing Amplifier or Adder Circuit: Used in summing amplifier configurations.
• General Feedback Applications: Useful in many feedback and control systems.

Specifications:

• Power Supply: 5V to 18V
• Operating Temperature Range: 0°C to +70°C
• Output Impedance: 75 Ohms
• Number of Op-Amps: 1

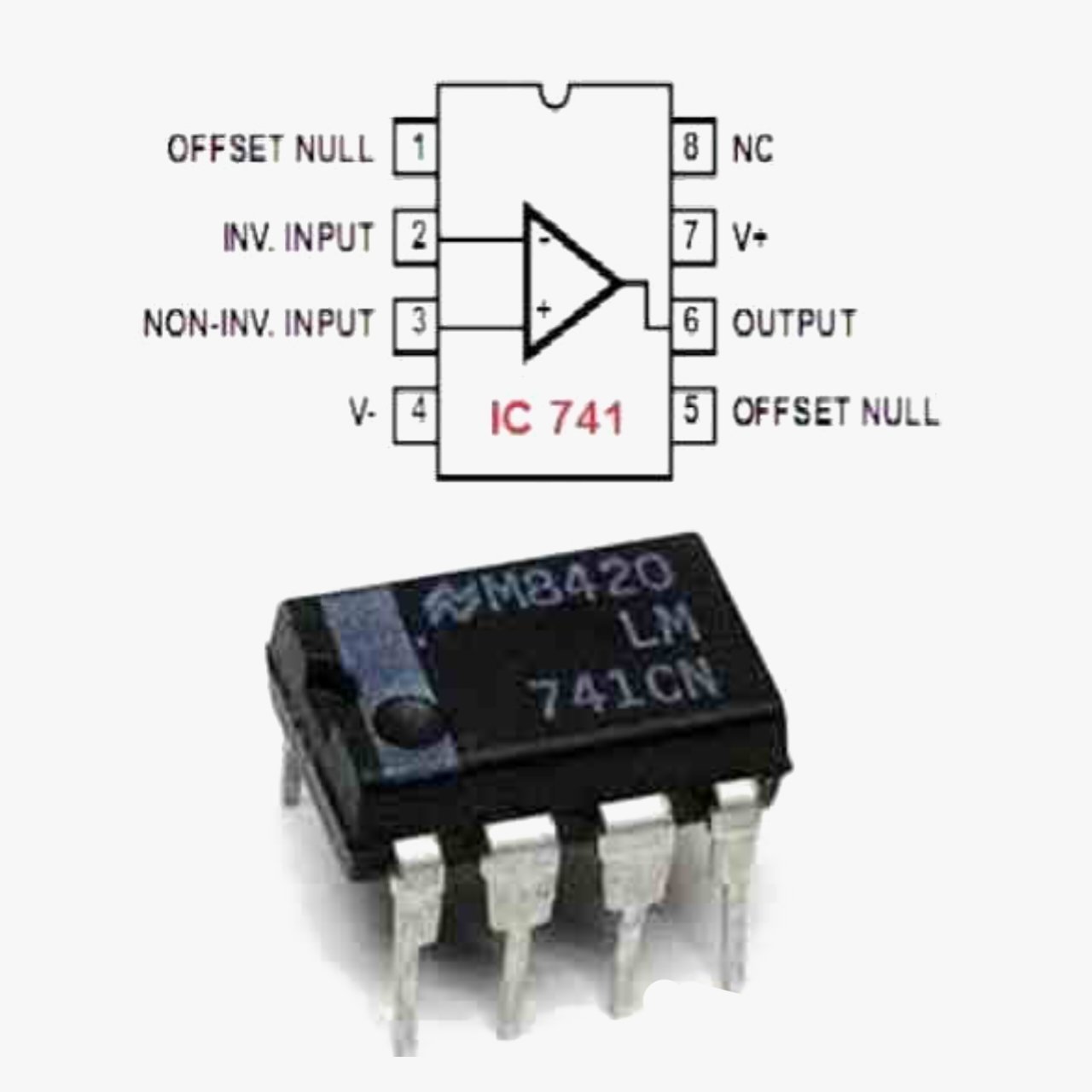

Pinout:

1. Offset Null
2. Inverting Input
3. Non-Inverting Input
4. V- (Negative Voltage Supply)
5. Offset Null
6. Output
7. V+ (Positive Voltage Supply)
8. NC (No Connection)

Package Includes:

• 2 x LM741 Op-Amp IC
