5V 6A PCB Mount Sugar Cube SPDT Relay – 1 Pcs

Description

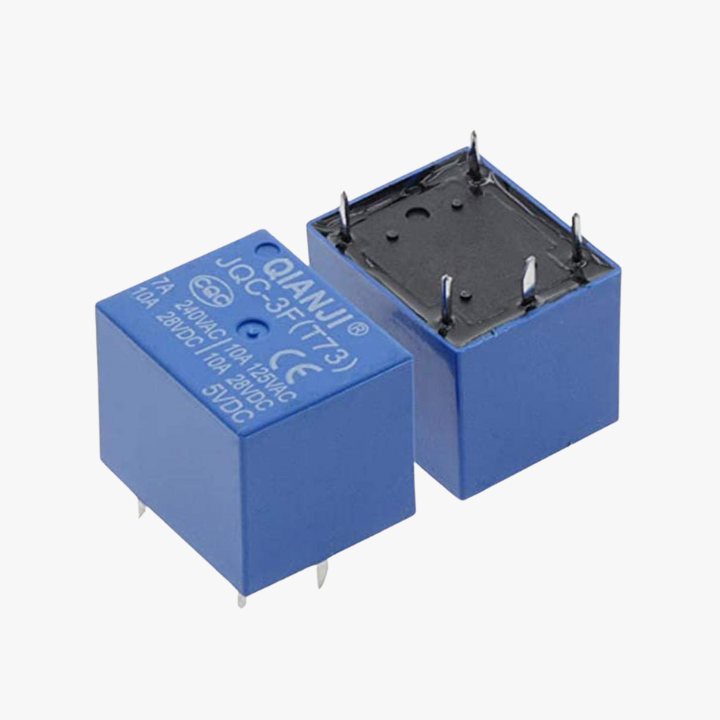

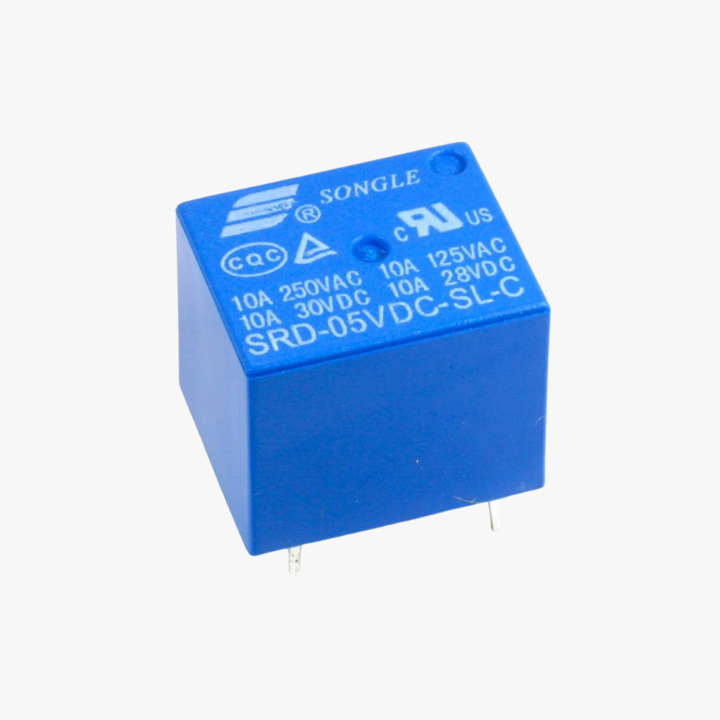

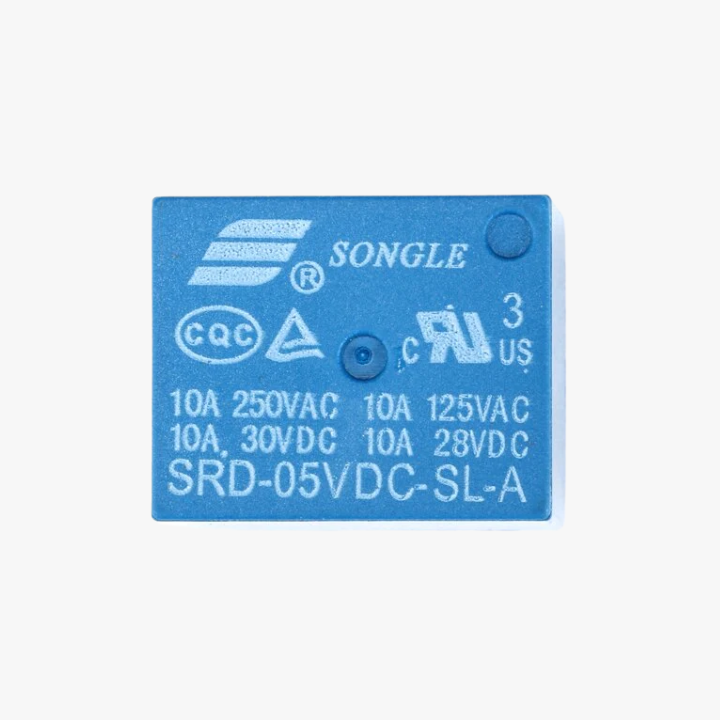

5V 6A PCB Mount Sugar Cube SPDT Relay – 1 Pcs

The 5V 6A PCB Mount Sugar Cube SPDT Relay is a compact yet powerful switch designed for controlling high current AC/DC appliances through a microcontroller or sensor output. Despite its small size, this relay is capable of handling loads up to 7A. The relay features a 5V trigger voltage and operates with a coil resistance of 70 ohms, drawing 70mA of current. It’s an ideal choice for use in various applications such as home automation, switching circuits, and security systems.

Key Features:
✔ High-Quality Material: Built for durability and consistent performance.
✔ Compact Cube Shape: Space-efficient design for easy PCB mounting.
✔ Operate Voltage: 5V trigger voltage for compatibility with microcontrollers.
✔ Operate Current: 70mA for reliable operation.
✔ Load Switching: Can control loads up to 6A/7A.

How it Works:

• Coil End 1 & Coil End 2: Used to trigger the relay ON/OFF with a 5V supply and ground connection.
• Common (COM): Connected to the load that needs to be controlled.
• Normally Closed (NC): The load remains ON before triggering.
• Normally Open (NO): The load remains OFF before triggering.

Applications:
🏠 Home Automation: Control household appliances.
🔒 Security Systems: Trigger alarms and other security devices.
⚡ Switching Circuits: Control high-power loads remotely.

Package Includes:
📦 1 x 5V 6A PCB Mount Sugar Cube SPDT Relay – 1 Pcs
