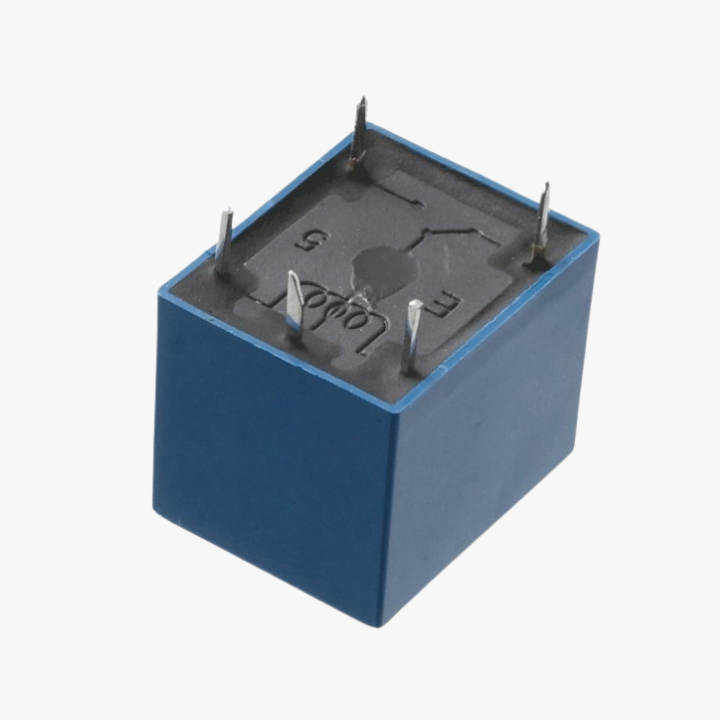

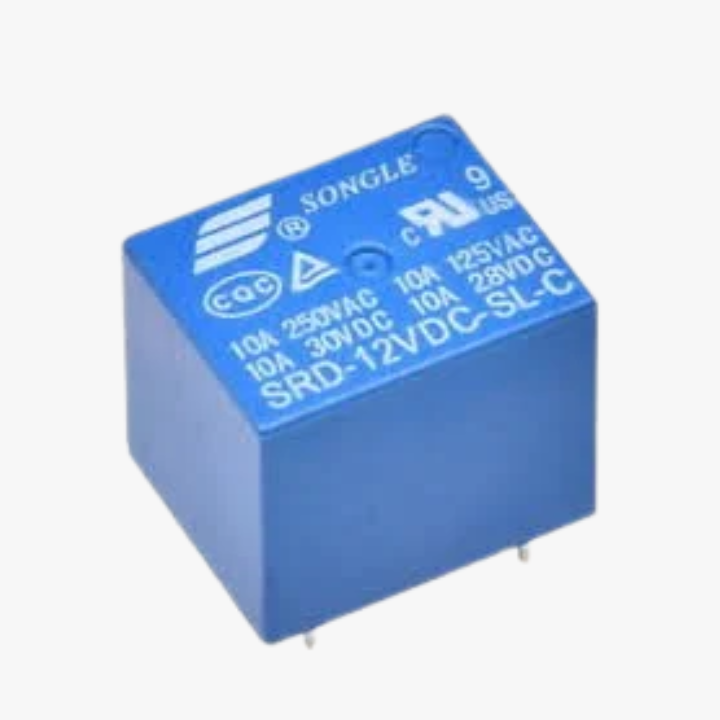

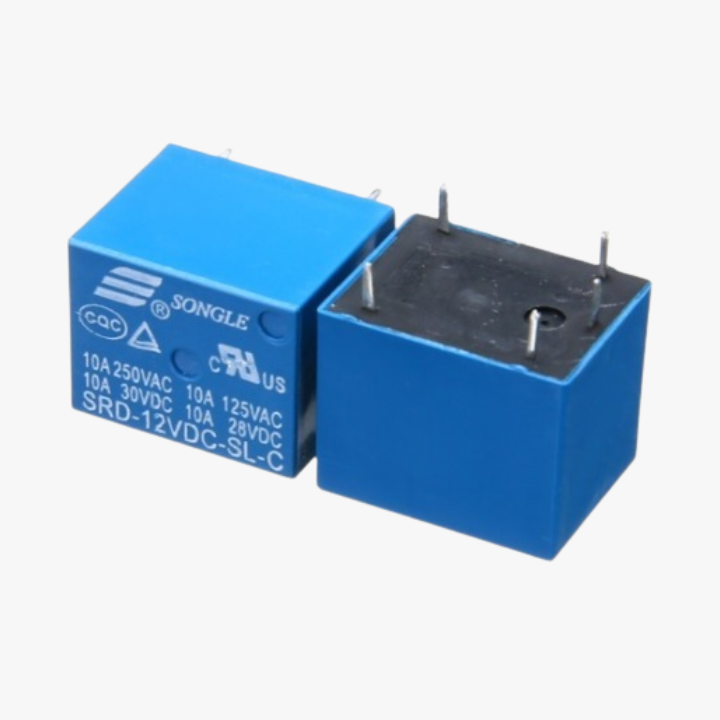

12V 6A PCB Mount Sugar Cube SPDT Relay – 1 Pcs

Description

12V 6A PCB Mount Sugar Cube SPDT Relay – 1 Pcs

The 12V 6A PCB Mount Sugar Cube SPDT Relay is a reliable and compact switching solution for controlling high-current AC/DC appliances via a microcontroller or sensor output. With its small size, this relay can handle loads up to 6A. The relay operates with a 12V trigger voltage and a coil resistance of 70 ohms, drawing a current of 70mA. It is ideal for various applications such as home automation, switching circuits, and security systems.

Key Features:
✔ High-Quality Material: Designed for durability and long-lasting performance.
✔ Compact Cube Shape: Space-saving design for easy PCB mounting.
✔ Operate Voltage: 12V trigger voltage for integration with a variety of systems.
✔ Operate Current: 70mA current for efficient operation.
✔ Load Switching: Can control loads up to 6A.

How it Works:

• Coil End 1 & Coil End 2: Used to trigger the relay ON/OFF with a 12V supply and ground connection.
• Common (COM): Connected to the load that needs to be controlled.
• Normally Closed (NC): The load remains ON before triggering.
• Normally Open (NO): The load remains OFF before triggering.

Applications:
🏠 Home Automation: Control household appliances remotely.
🔒 Security Systems: Trigger alarms and other devices.
⚡ Switching Circuits: Easily control high-power loads.

Package Includes:
📦 1 x 12V 6A PCB Mount Sugar Cube SPDT Relay – 1 Pcs
