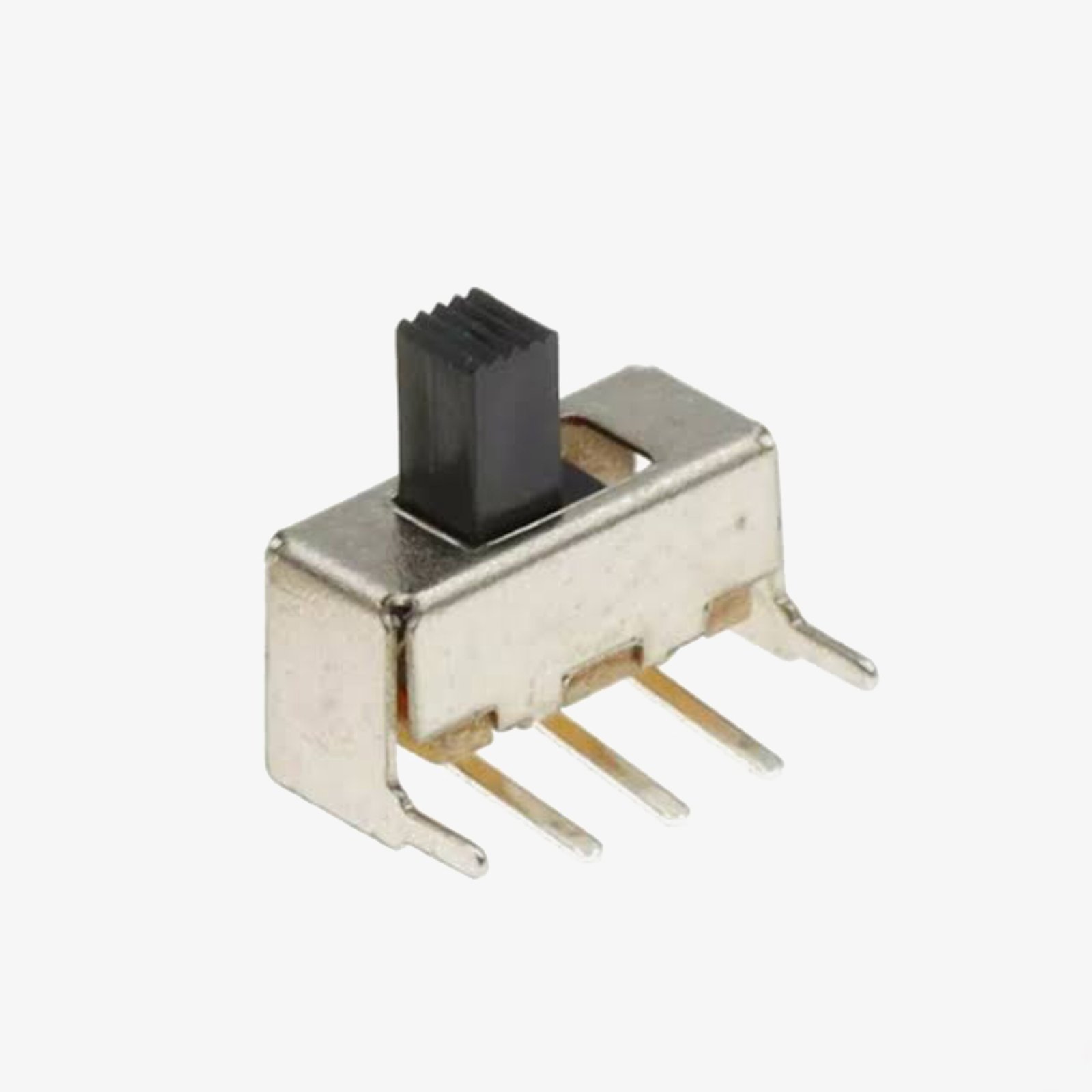

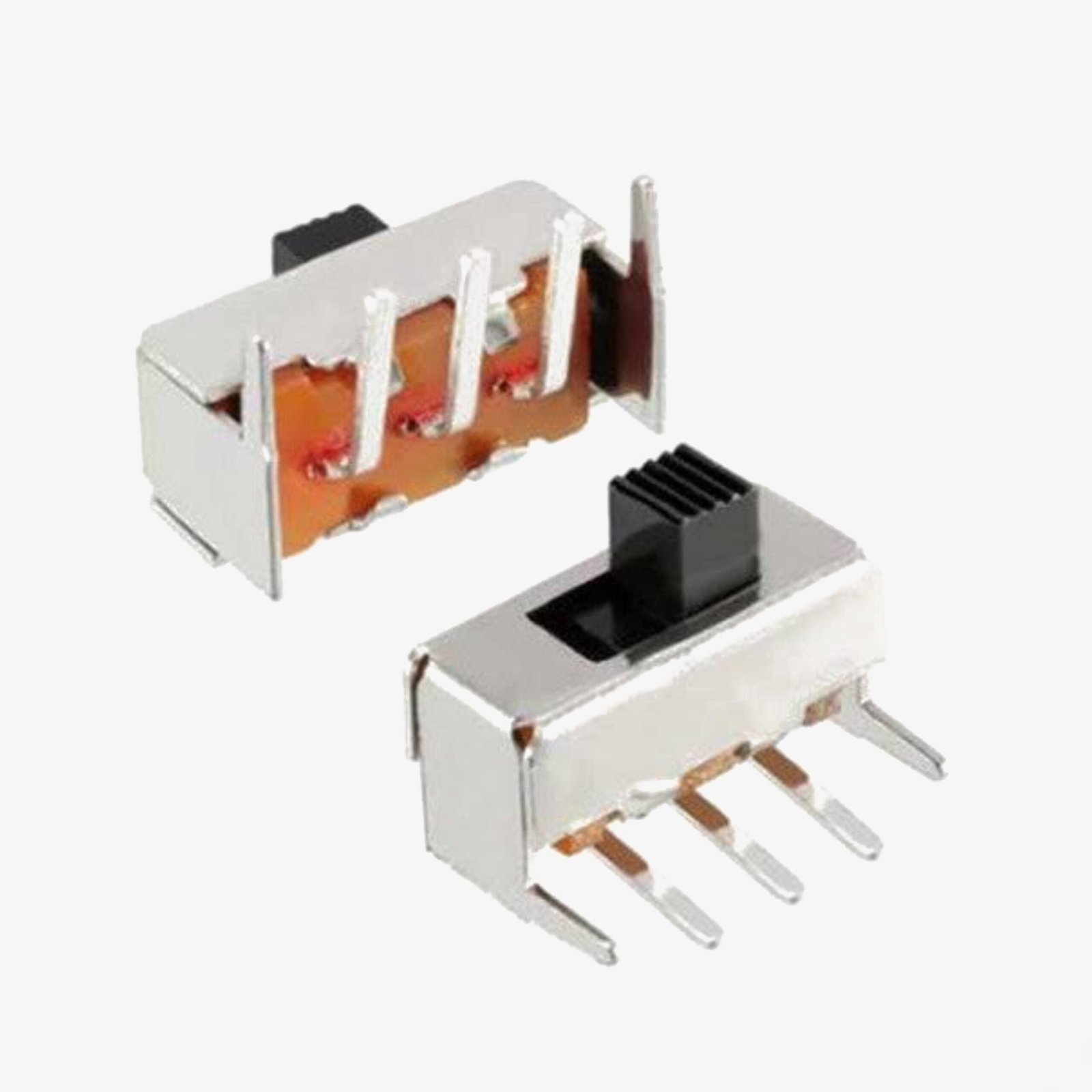

3 Pin 2 way Mini Right Angle Slide Switch-L Shape (PCB Mount, Pitch 0.1 inch)

Description

Right Angle Slide Switch (PCB Mount, Pitch 0.1 inch)

The Right Angle Slide Switch is a versatile component widely used for controlling operations in small power electronic projects. Its compact design, right-angled orientation, and solderable pins make it perfect for applications such as volume controls, dimmer switches, and various DIY projects.

Features & Specifications

• 🔌 Type: 1 Pole 2 Throw (SPDT)
• 📏 Orientation: Right-angled, PCB mount
• 🛠️ Construction: High-quality green fiberglass
• ⚙️ Material: Plastic and metal
• 🎨 Color: Silver tone and black
• ⚡ Working Power: 0.5A at 50V DC
• 🔍 Contact Resistance: Maximum 30mΩ
• 🛡️ Insulation Resistance: Minimum 100mΩ at 500V DC
• 🔌 Maximum Voltage: Can withstand AC 500V for 10 seconds
• 📐 Pin Pitch: 2.54mm (0.1 inch)

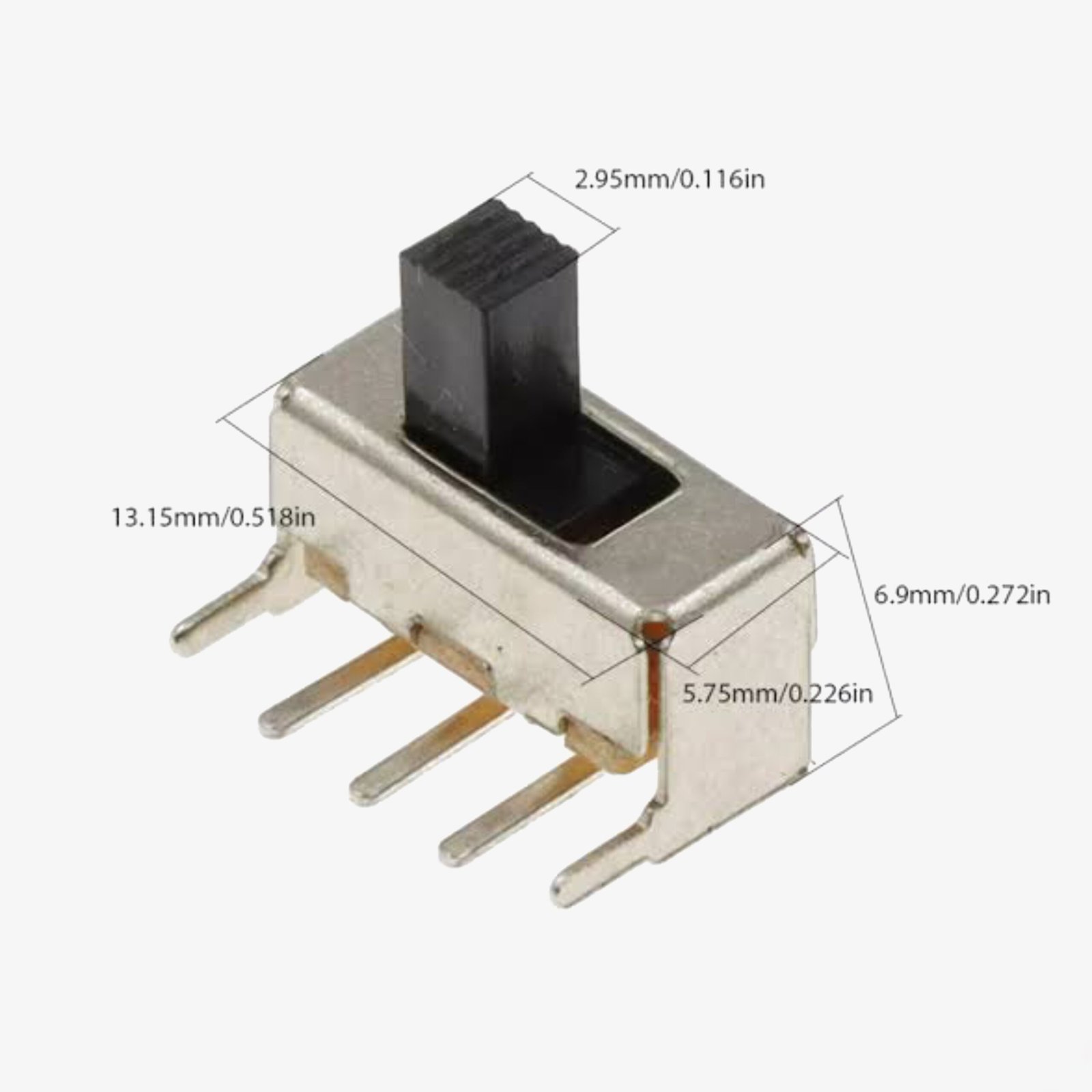

• 📏 Main Body Size: 13mm x 6.5mm x 5.5mm
• 🔧 Actuator Type: Sliding knob
• 📌 Terminals: 3 terminals, easy to solder

Applications

• ⚡ Control Systems: Ideal for controlling operations in small electronic projects
• 🎵 Audio/Video Equipment: Useful for volume control and other settings
• 💡 Lighting: Can be used in dimmer controls
• 🛠️ DIY Projects: Suitable for various custom electronics projects due to its solderable pins

Benefits

• ✅ Compact Design: Fits easily in small electronic setups
• ✅ Easy Installation: Right-angled pins ensure simple PCB mounting
• ✅ Reliable: High-quality materials ensure long-lasting performance
• ✅ Versatile: Suitable for various electronic applications

Package Includes

• 1 x Right Angle Slide Switch
