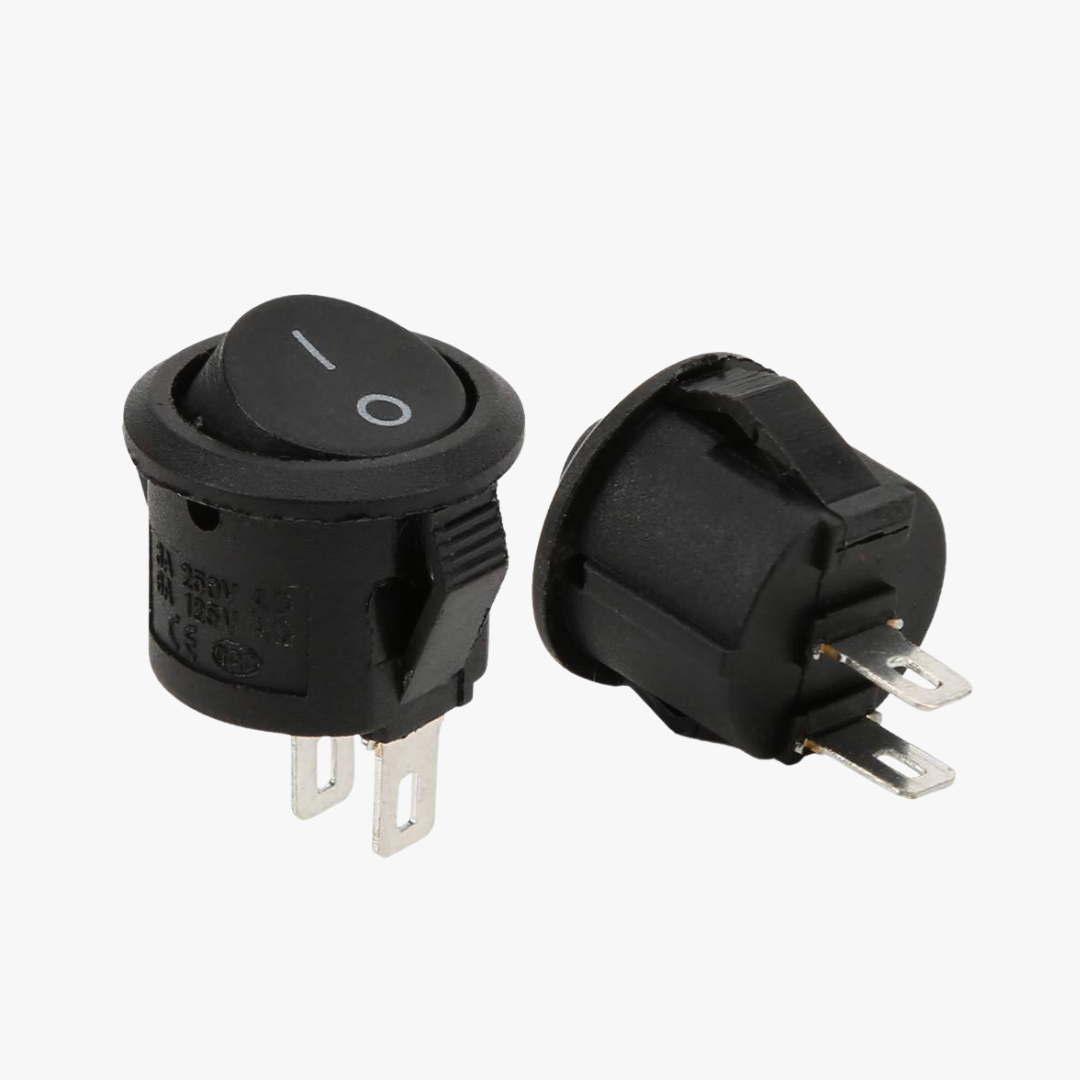

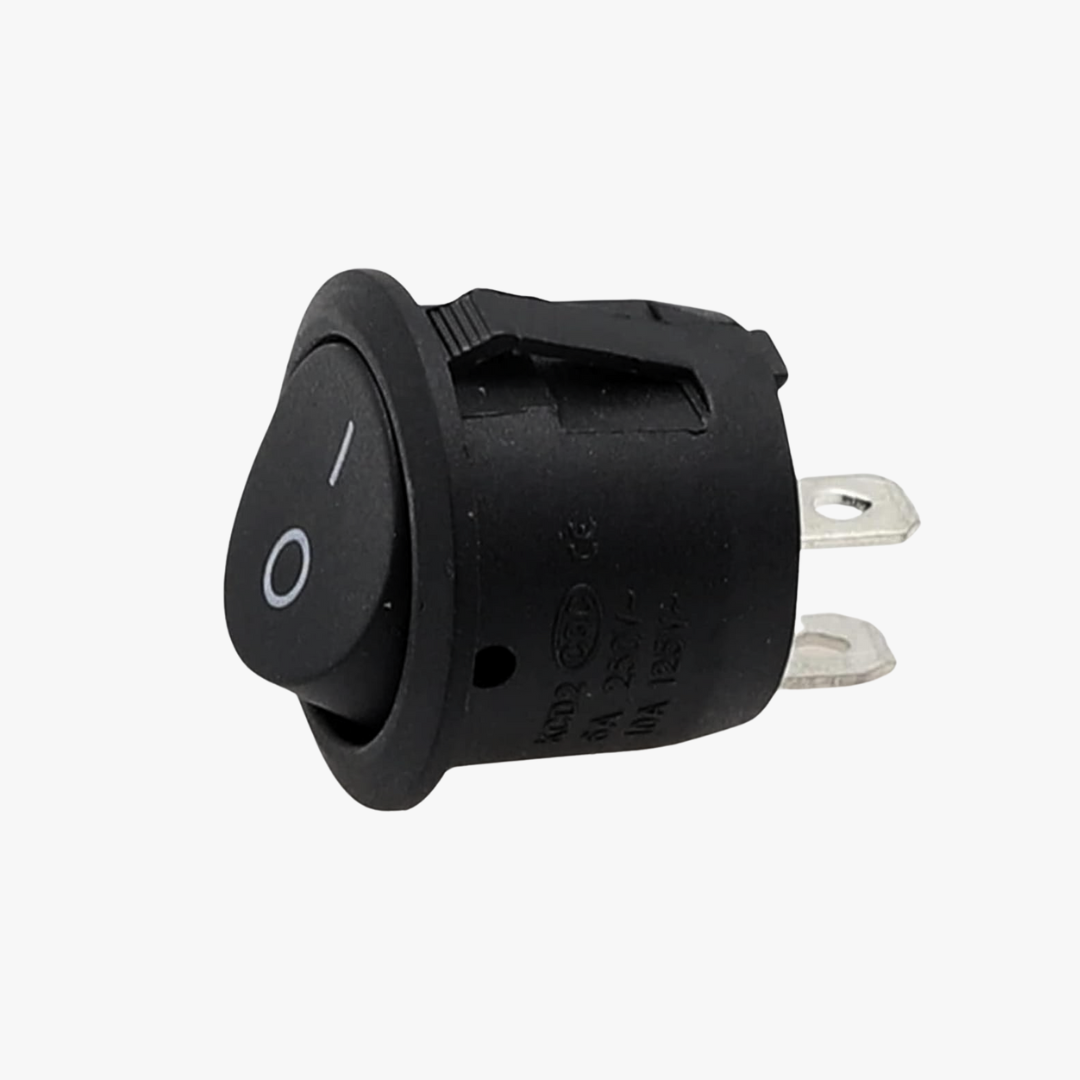

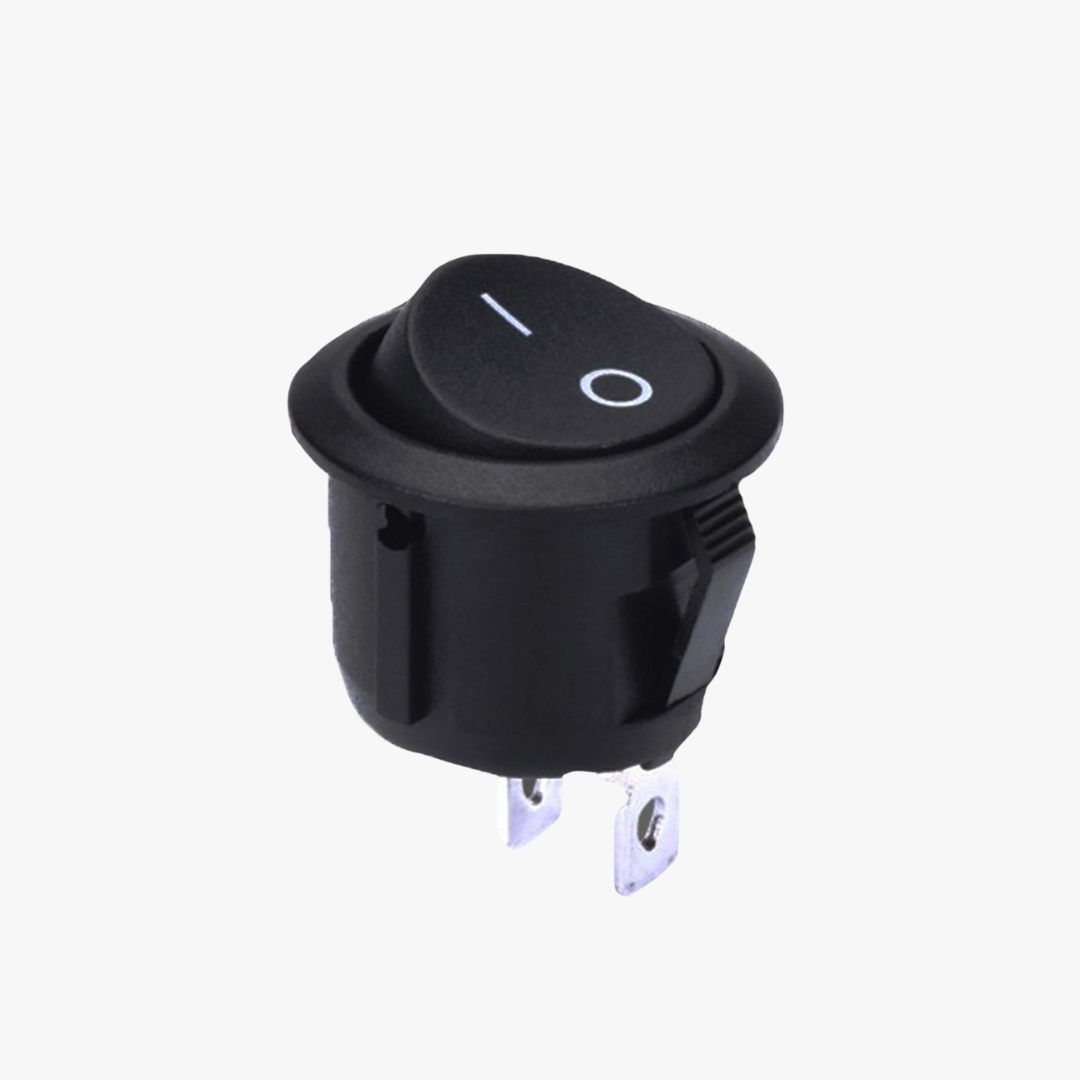

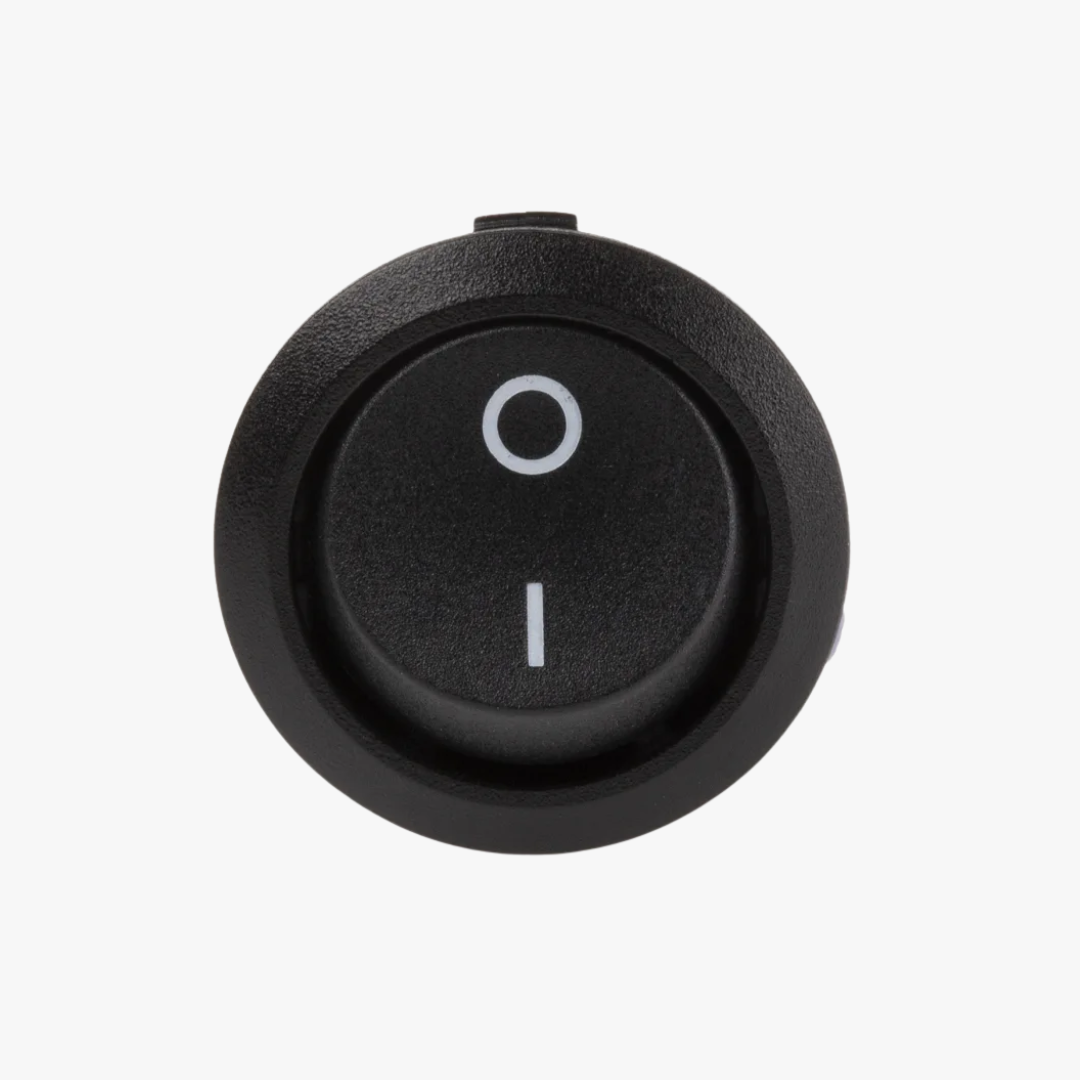

Black Round Rocker Switch – 2-Pin ON/OFF | No Lamp | Durable & Versatile
• Model: KCD1-5-101
• Operation: ON-OFF (SPST)
• Pins: 2
• Current/Voltage Rating: 10A @ 125VAC / 6A @ 250VAC
• Contact Resistance: ≤ 35 mΩ
• Insulation Resistance: ≥ 100 mΩ (500VDC)
• Dielectric Strength: 1500VAC (1 min)
• Electrical Life: ≥ 10,000 cycles
• Mechanical Life: ≥ 100,000 cycles
• Material: Nylon 66 (Housing), Brass (Terminals)
• Operating Temp: -25°C to +85°C
• Color Options:
– Housing: Black
– Button: Black, White
Products are almost sold out
available only:
47In Stock
Payment. Payment upon receipt of goods, Payment by card in the department, Google Pay, Online card, -5% discount in case of payment
Warranty. The Consumer Protection Act does not provide for the return of this product of proper quality.
Description
🔹Black Round Rocker Switch – 2-Pin ON/OFF | No Lamp | Durable & Versatile
The KCD1-5-101 is a compact and durable 2P ON-OFF round rocker switch designed without an indicator lamp. Built with high-grade Nylon 66 housing and silver-plated brass terminals, it delivers reliable performance across a wide range of electrical and DIY applications. With CE, CQC, and SGS certifications, this switch is ideal for both OEM and ODM use.
🔧 KEY FEATURES
• ⚡ 2-Pin ON-OFF Operation
– Simple Single Throw control for basic power switching
• 🏠 Durable Nylon 66 Housing
– Flame-retardant and rugged for long-term use
• 🔩 Silver-Plated Brass Terminals
– Ensures optimal conductivity and corrosion resistance
• 🌡️ Wide Operating Temperature
– Performs from -25°C to +85°C
• 🎨 Multiple Color Options
– Housing: Black, White, Grey
– Button: Black, White, Grey, Red, Transparent
• ✅ Certified for Quality
– CE, CQC, and SGS approved
📐 SPECIFICATIONS
• Model: KCD1-5-101
• Operation: ON-OFF (SPST)
• Pins: 2
• Current/Voltage Rating: 10A @ 125VAC / 6A @ 250VAC
• Contact Resistance: ≤ 35 mΩ
• Insulation Resistance: ≥ 100 mΩ (500VDC)
• Dielectric Strength: 1500VAC (1 min)
• Electrical Life: ≥ 10,000 cycles
• Mechanical Life: ≥ 100,000 cycles
• Material: Nylon 66 (Housing), Brass (Terminals)
• Operating Temp: -25°C to +85°C
• Color Options:
– Housing: Black
– Button: Black, White
• Lamp: None
• OEM/ODM: Supported
💡 BENEFITS
• 🛠 Perfect for various home and industrial control applications
• 🔌 Ideal for panel mounting and compact electronic builds
• 💪 Designed for high durability and long-lasting performance
• 🌍 OEM/ODM compatibility for customized applications
📦 PACKAGE INCLUDES
• 1 × KCD1-5-101 Round Rocker Switch (2-Pin, ON-OFF, No Lamp)
