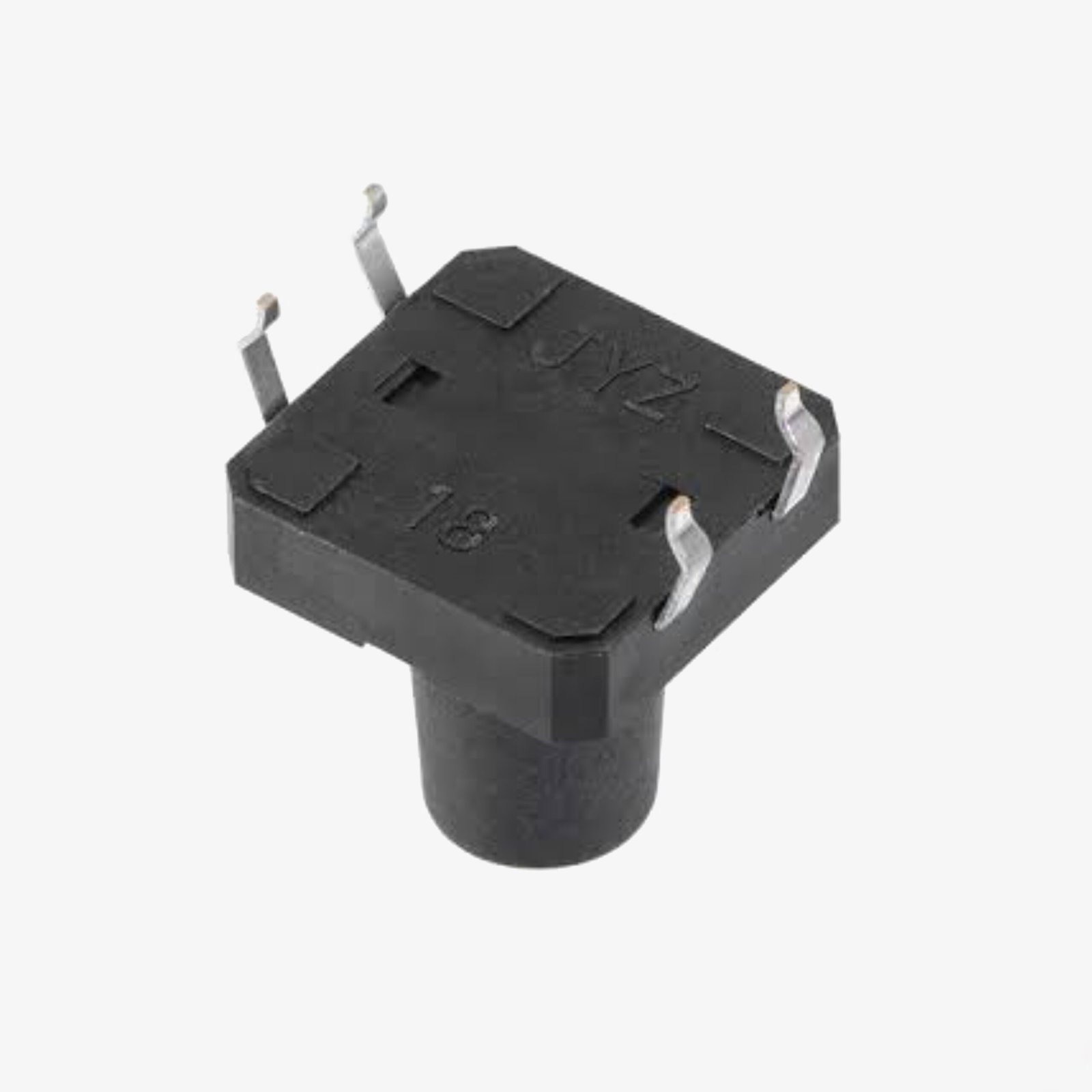

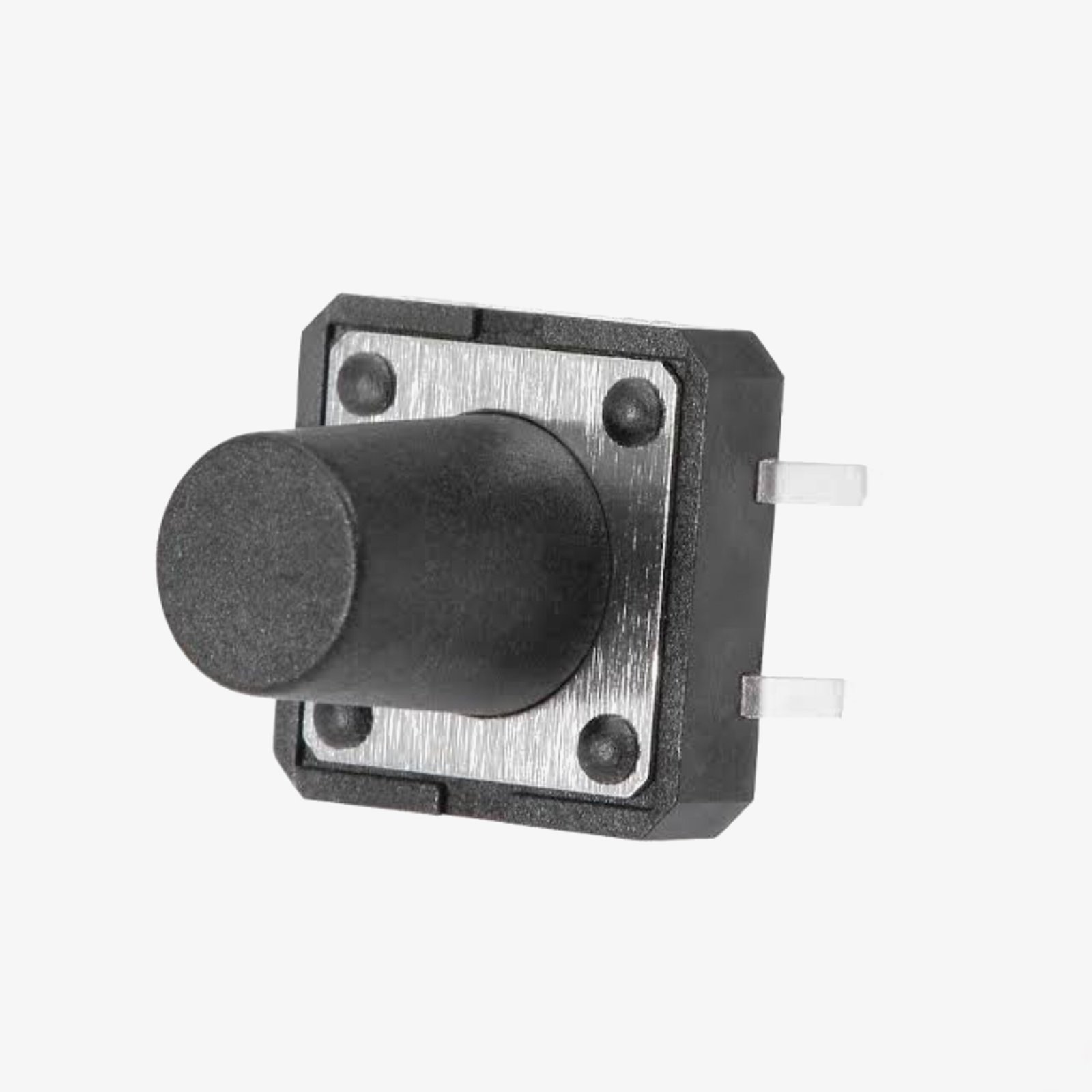

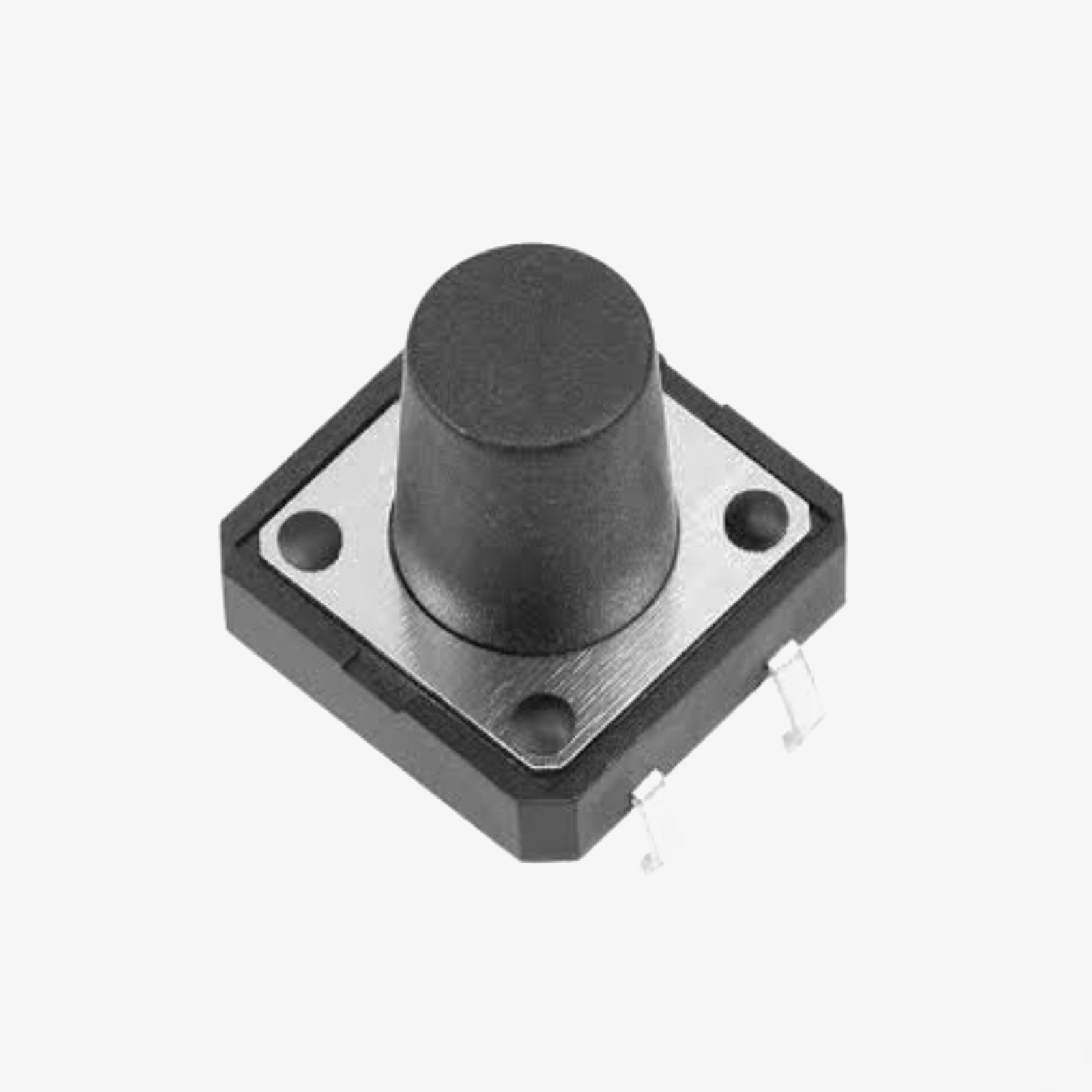

12X12X12MM 4 Pin Square Shape Tactile Push Button Switch

Description

Square Shape Tactile Push Button Switch

The Square Shape Tactile Push Button Switch is a versatile and essential component for electronic projects, providing a reliable and standard input mechanism. This switch is designed for PCB mounting but can also be used on a solderless breadboard for temporary connections during prototyping. When pressed, the switch momentarily closes the circuit, offering dependable dome contact technology and strong tactile feedback. This makes it suitable for a wide range of applications, including telecommunications, consumer electronics, audio/visual equipment, medical devices, testing/instrumentation, and computer peripherals. Note that the switch does not come with a cap, which can be sourced separately if needed.

Features & Specifications:

• 🔌 Type: Momentary Push Button, SPST (Single Pole Single Throw)
• ⚙️ Function: Push to ON
• 🛠️ Mounting Type: Through-Hole for Secure PCB Mounting
• 🔩 Contact Material: Aluminum Alloy
• 🏗️ Body Material: Plastic
• 📏 Operating Force: Approximately 3-5N
• 📐 Operation Stroke: 1.05mm
• 🔧 Durability: Mechanical and Electrical Life of 300,000 Cycles

Electrical Specifications:

• ⚡ Operating Voltage: 12V DC
• 🔌 Operating Current: 50mA
• 🔍 Contact Resistance: 50mΩ
• 🛡️ Insulation Resistance: 100MΩ

Environmental Specifications:

• 🌡️ Operating Temperature Range: -20°C to +70°C

Mechanical Specifications:

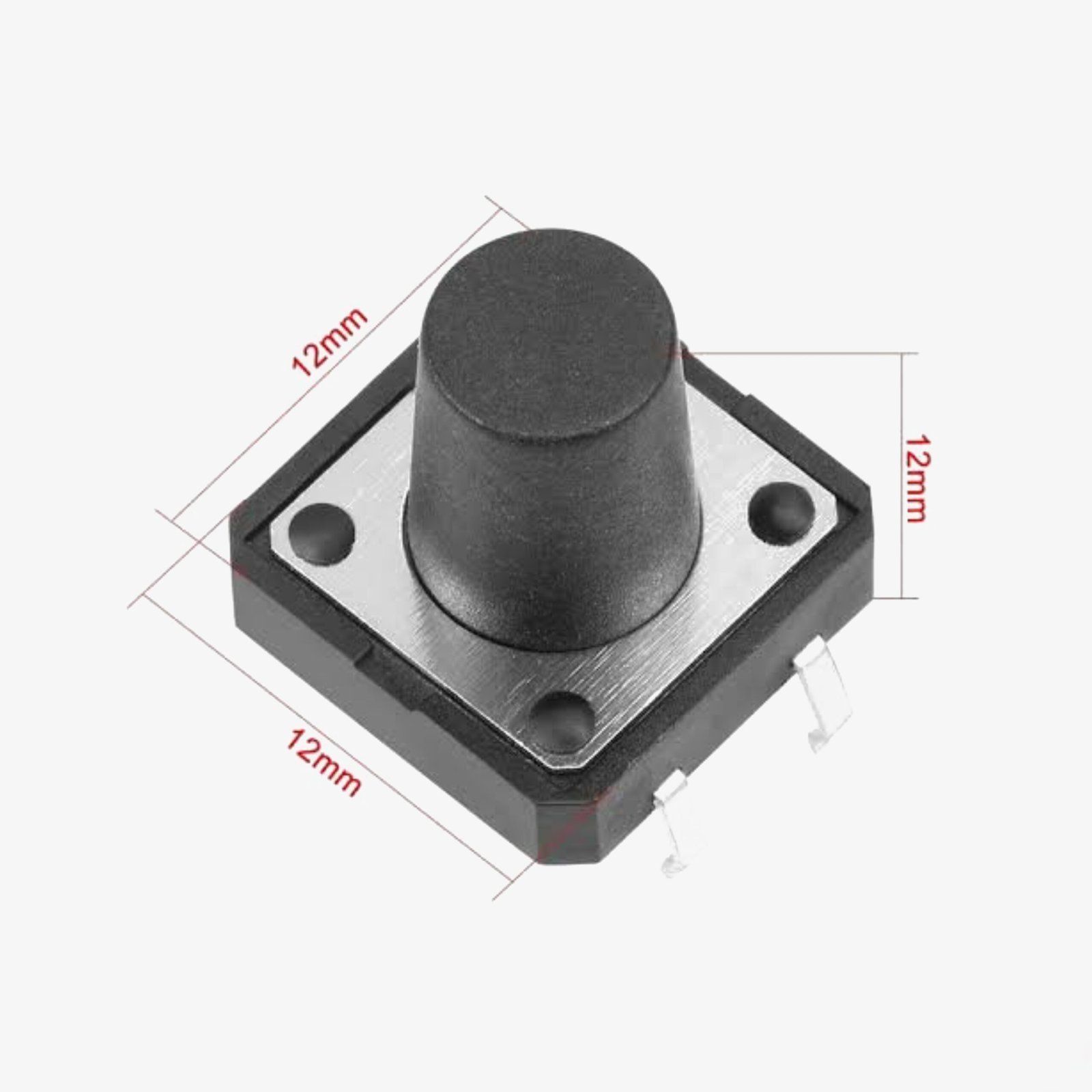

• 📏 Dimensions: 12mm x 12mm x 12mm (Length x Width x Height)

Applications:

• 📞 Telecommunications: Ideal for Use in Communication Devices
• 📱 Consumer Electronics: Widely Used in Various Electronic Gadgets
• 🎬 Audio/Visual Equipment: Suitable for Control Buttons in AV Devices
• 🏥 Medical Devices: Reliable for Use in Medical Instrumentation
• 🧪 Testing/Instrumentation: Essential for Test Equipment and Instruments
• 💻 Computer/Peripherals: Perfect for Input Buttons in Computer-Related Devices

Package Includes:

• 📦 1x Square Shape Tactile Push Button Switch
