Description

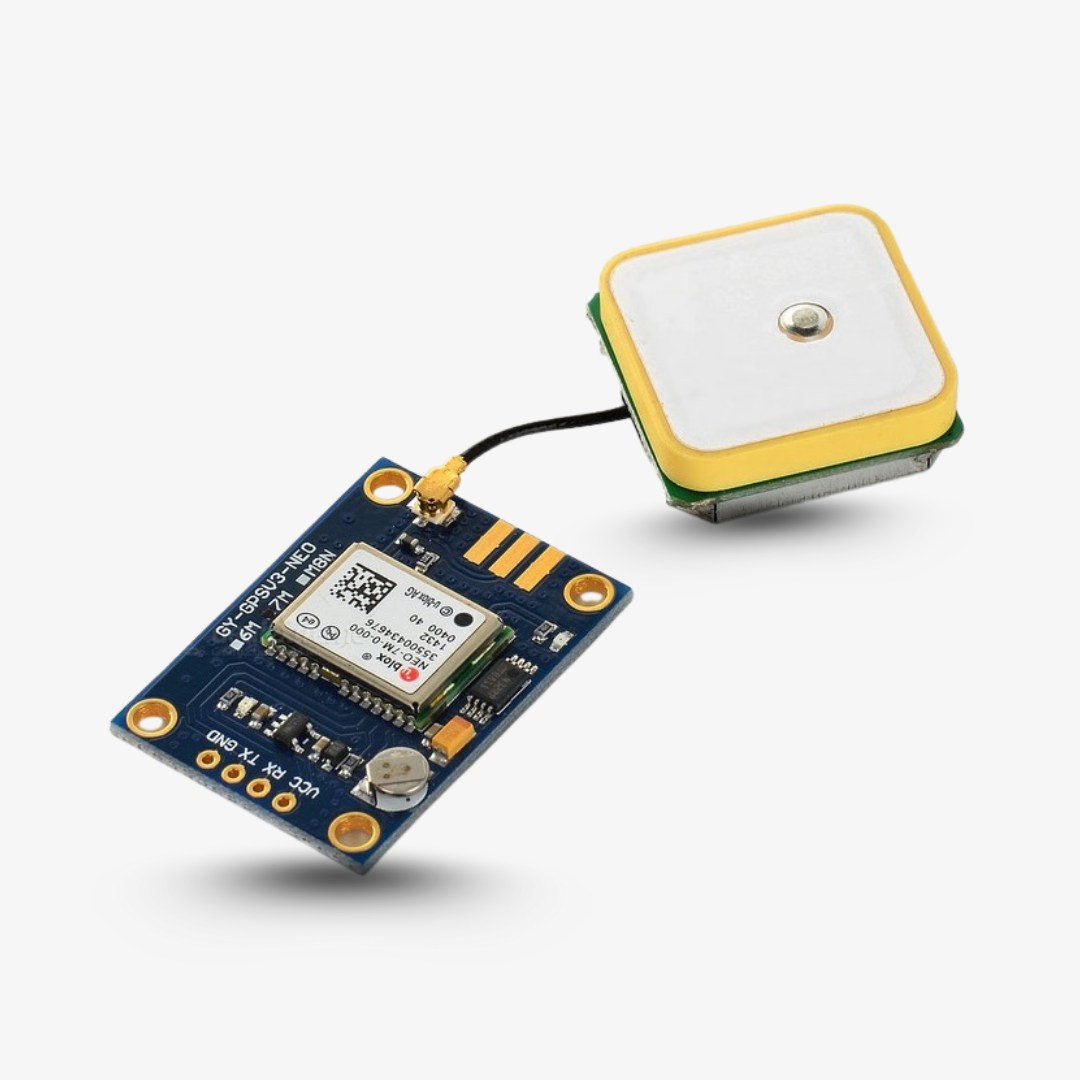

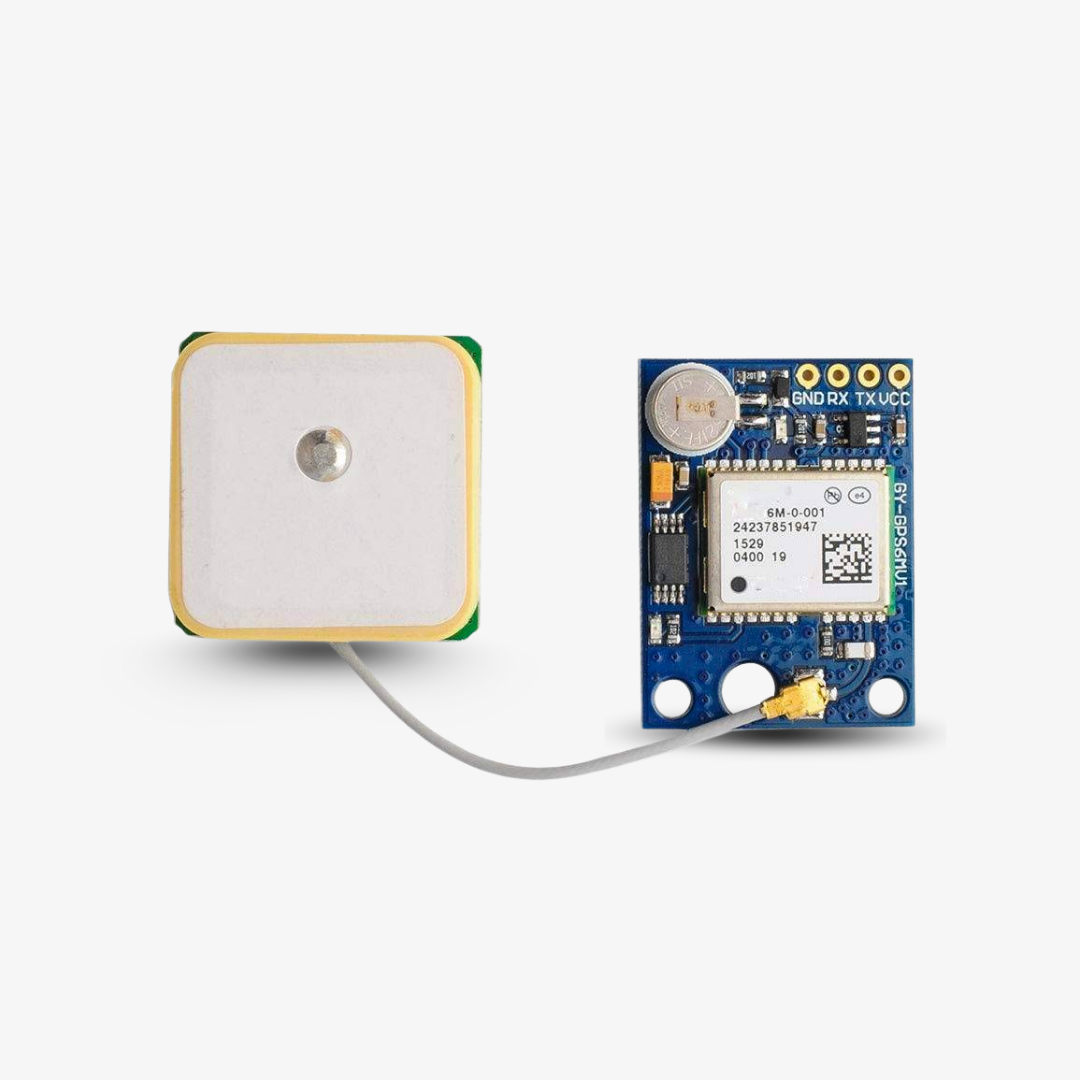

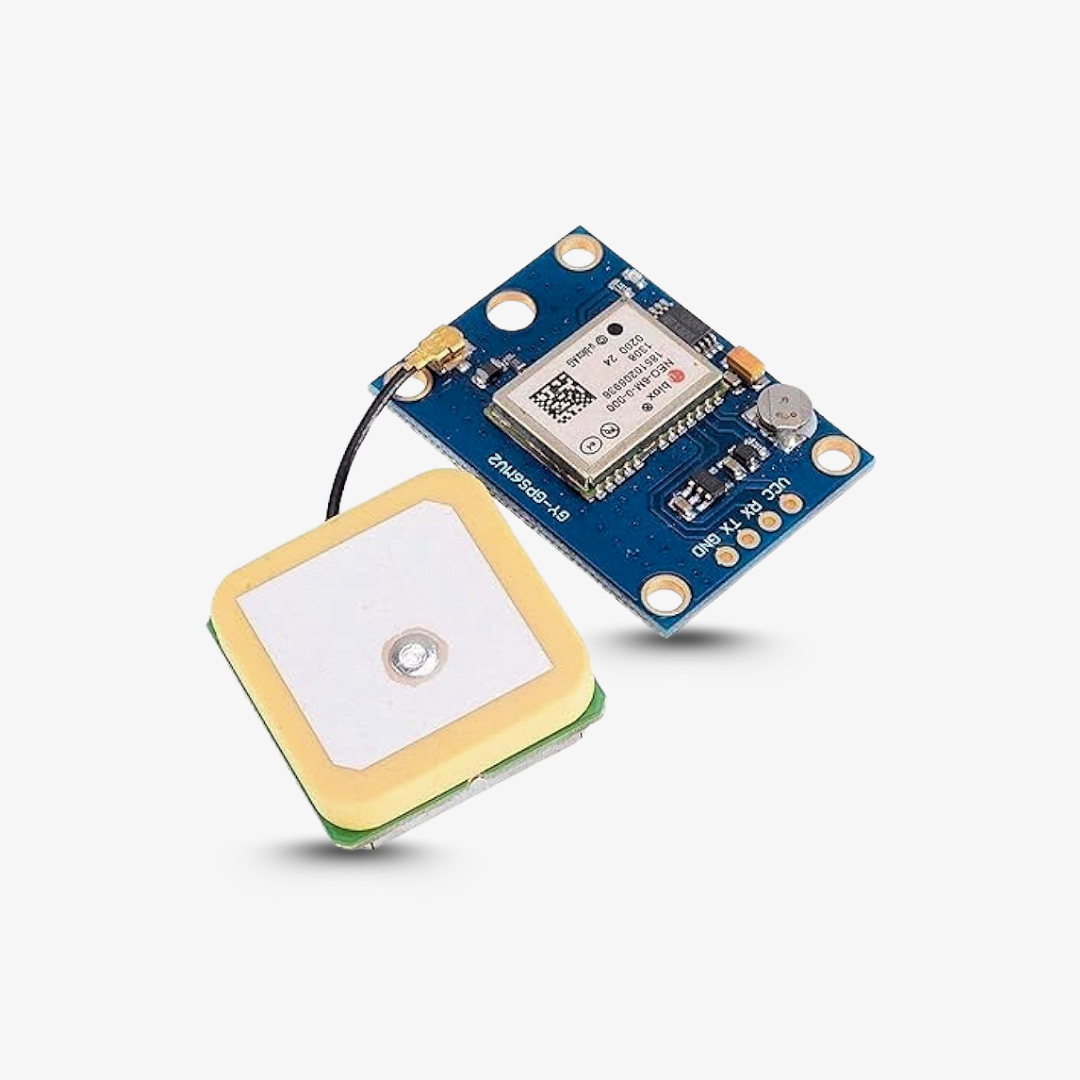

The Ublox NEO-6M GPS Module is a reliable and high-precision positioning solution based on the proven Ublox NEO-6M chipset. It features a large active GPS antenna, rechargeable backup battery, and EEPROM to store configuration settings—helping the module achieve faster GPS lock times. With high sensitivity and stable performance, it’s ideal for Ardupilot Mega (APM) and other multirotor or robotics control platforms, even in challenging indoor environments.

---

KEY FEATURES

• High-Precision Ublox NEO-6M Engine: Accurate positioning with stable output
• Rechargeable Backup Battery: Faster lock via retained satellite data
• EEPROM Storage: Saves configuration settings for quick startup
• SuperSense® Technology: High sensitivity for indoor tracking
• TTL UART Interface: Simple TX/RX communication with controllers
• Detachable Active Antenna: Improved signal reception and flexibility
• Wide Baud Rate Support: Configurable from 4800 to 115200 (default 9600)

---

SPECIFICATIONS

• Product Type: GPS Module
• GPS Chipset: Ublox NEO-6M
• Interface: UART TTL (TX, RX, VCC, GND)
• Tracking Sensitivity: –162 dBm
• Cold Start Time: ~38 seconds
• Hot Start Time: ~1 second
• Baud Rate: 4800 – 115200 (Default: 9600)
• SBAS Support: WAAS, EGNOS, MSAS, GAGAN
• Antenna Size: 2.5 × 2.5 cm (Active) / Separated 1.8 × 1.8 cm GPS Antenna
• Compatibility: Ardupilot Mega v2, Multirotor Controllers

---

BENEFITS

• 🛰 Accurate Navigation: Reliable positioning for drones and robotics
• ⚡ Faster GPS Lock: Battery backup and EEPROM retain settings
• 🏠 Indoor Friendly: High sensitivity performs well indoors
• 🔧 Easy Integration: Simple UART TTL connection
• 🚁 Flight Controller Ready: Optimized for APM and multirotor platforms

---

📦 PACKAGE INCLUDES

• Ublox NEO-6M GPS Board: 1 Unit
• Detachable GPS Antenna: 1 Unit
