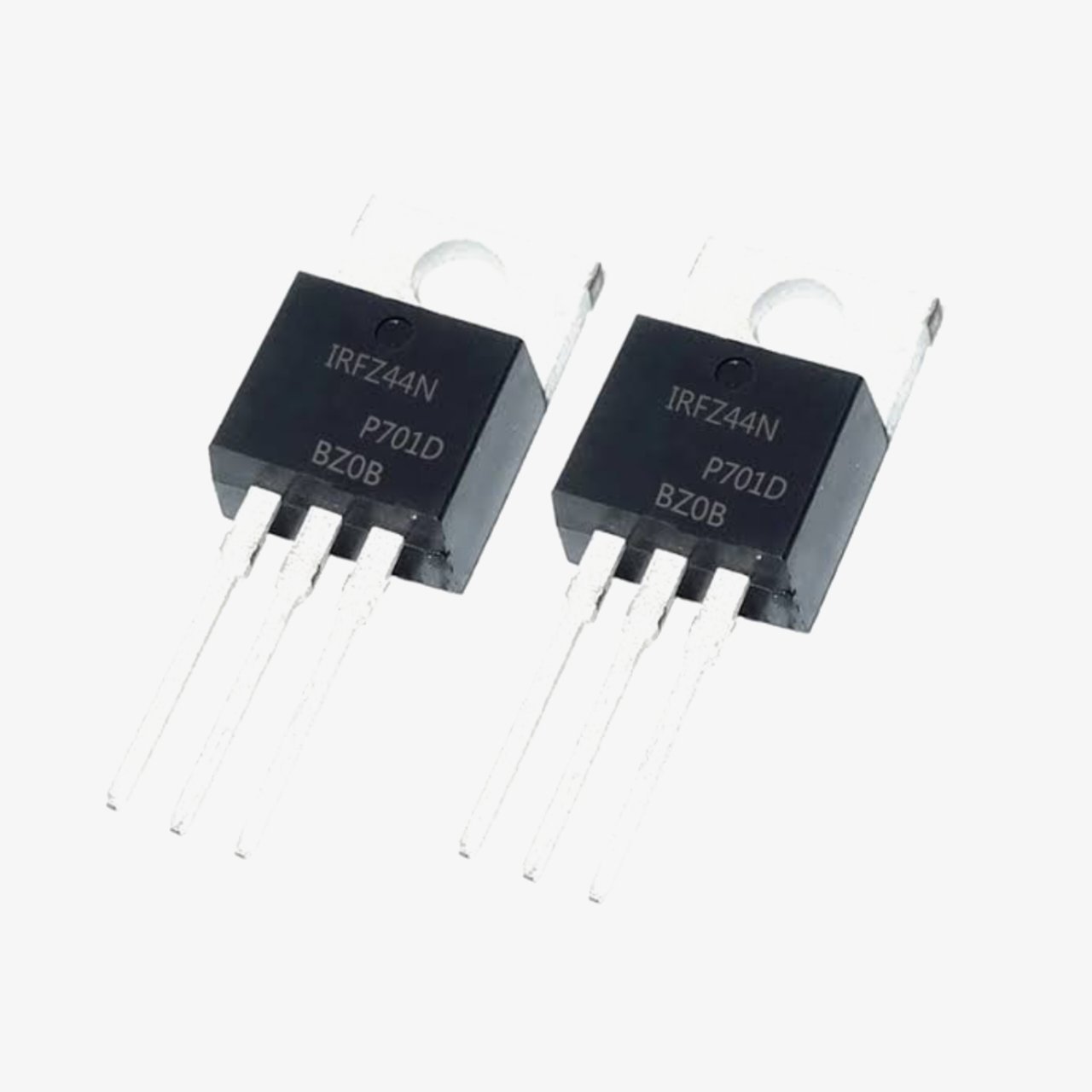

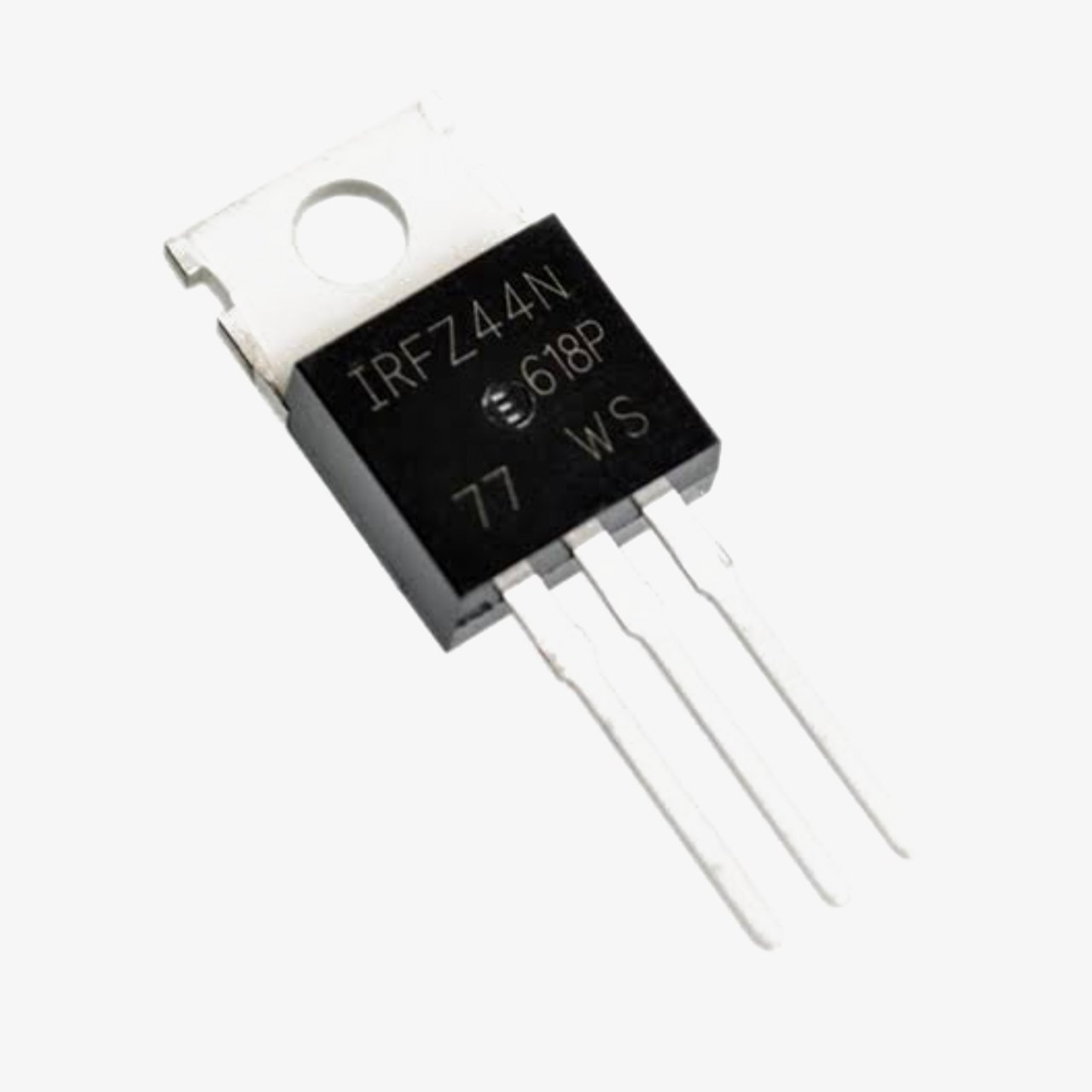

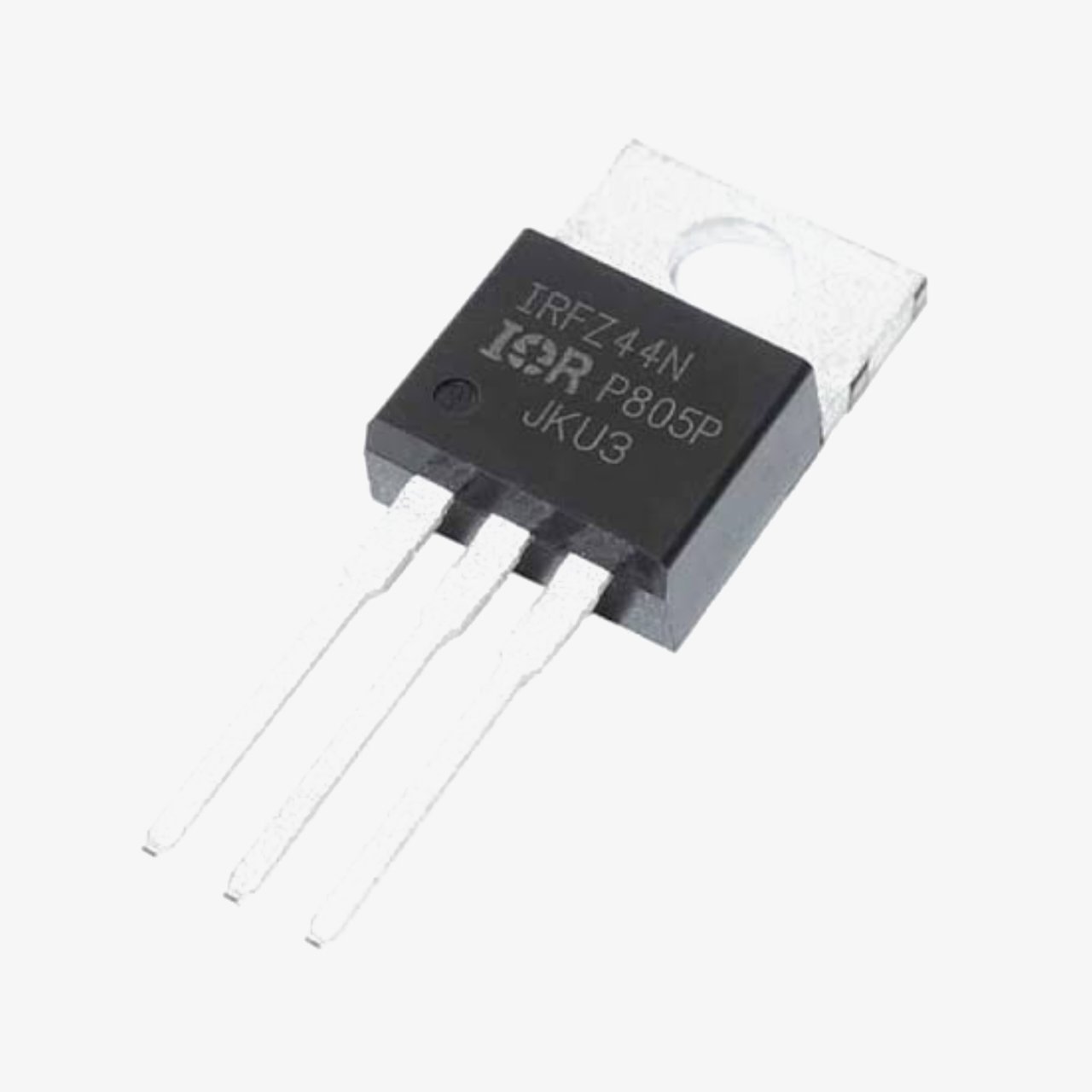

IRFZ44N N-Channel Power Mosfet – TO-220 Package

Description

IRFZ44N N-Channel Power Mosfet – TO-220 Package

Description:

The IRFZ44N N-Channel Power MOSFET is a high-performance semiconductor device designed for power switching applications. Featuring advanced process technology, this MOSFET offers ultra-low on-resistance and fast switching speed, making it suitable for a wide range of industrial and commercial applications. With a continuous drain current of 49A and a pulsed drain current of 160A, it delivers reliable performance even under high-load conditions. The MOSFET is fully avalanche rated and operates at a maximum temperature of 175°C, ensuring robustness and durability in demanding environments. Packaged in a TO-220 package, it provides low thermal resistance and cost-effectiveness, making it a preferred choice for various power dissipation levels up to approximately 50 watts.

Features:

• Continuous Drain Current: 49A
• Pulsed Drain Current: 160A
• Power Dissipation: 94 watts
• Advanced Process Technology: Ensures high performance and reliability
• Ultra Low On-Resistance: Provides efficient power switching
• Dynamic dv/dt Rating: Enables fast switching speed
• Operating Temperature: Up to 175°C
• Fast Switching: Suitable for high-frequency applications
• Fully Avalanche Rated: Ensures protection against overvoltage conditions
• TO-220 Package: Universally preferred for commercial-industrial applications with low thermal resistance and cost-effectiveness

Applications:

• Power switching circuits
• Motor control
• Voltage regulation
• DC-DC converters
• Inverters
• Amplifiers
• LED lighting
• Automotive electronics
• Industrial automation

Package Includes:

• 1 x IRFZ44N N-Channel Power MOSFET
