Description

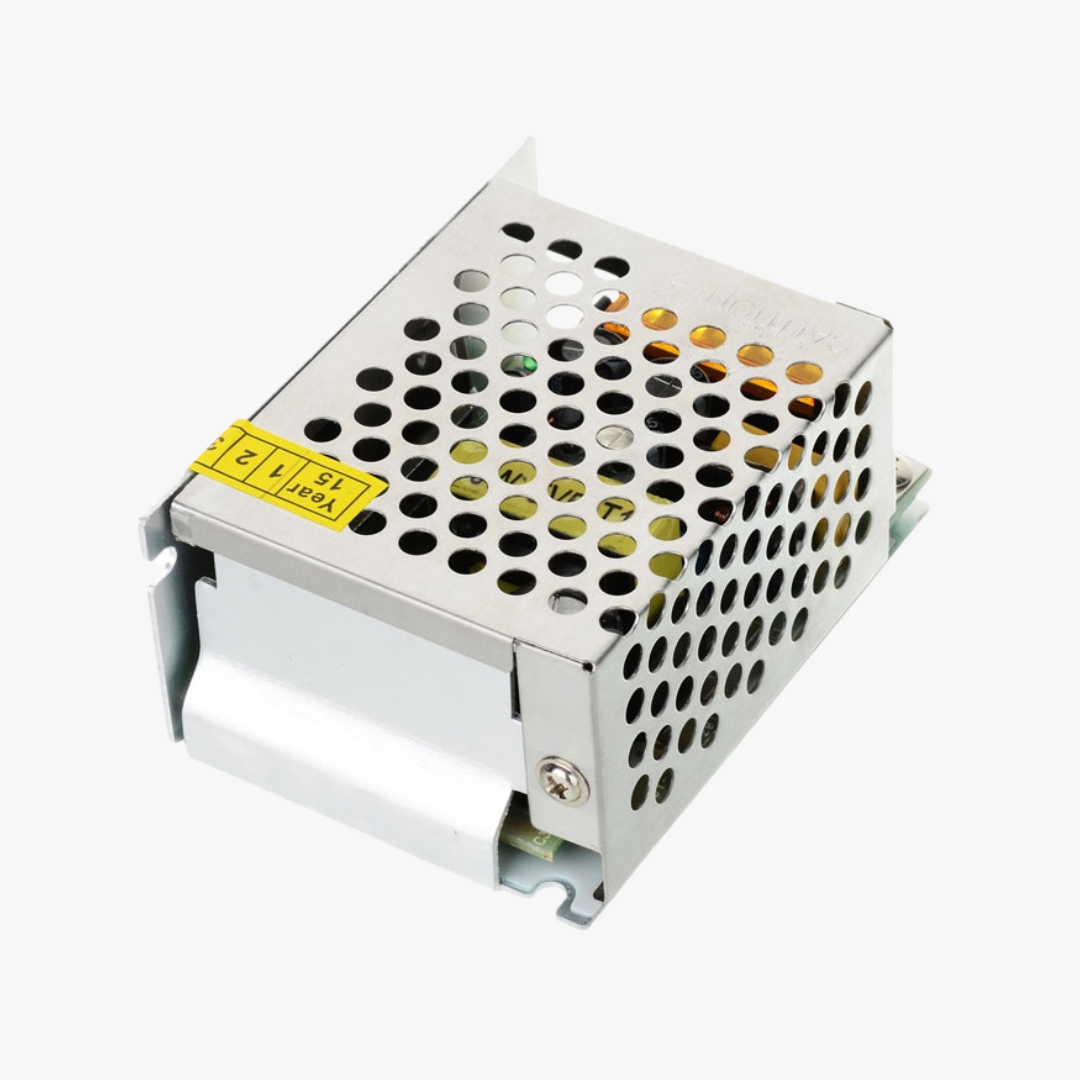

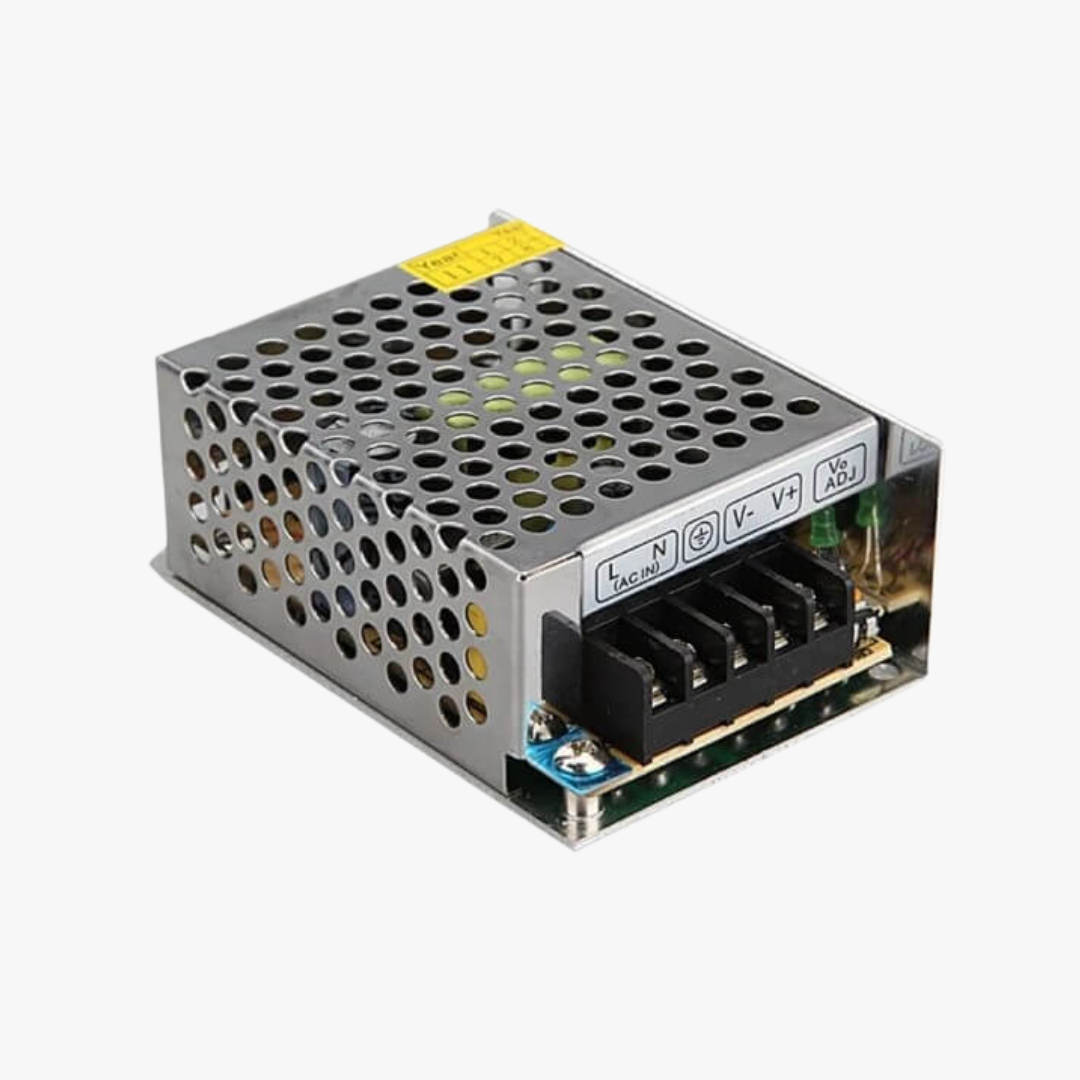

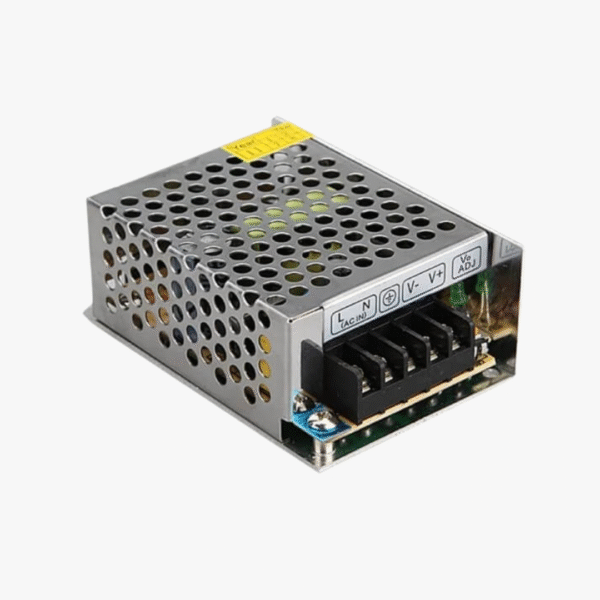

5V, 5Amp SMPS Power Supply | Indoor DC Power Adapter for LED Lighting (High Quality)

Power your LED lighting or electronic projects efficiently with this 5V Switched Mode Power Supply (SMPS) designed for high performance and reliability. It features a compact metal body for hidden indoor installations, ideal for LED strip lighting, embedded electronics, and other 5V DC applications. Built with overload and short circuit protection, it ensures both safety and durability in everyday use.

⚠️ Note: Product casing may vary slightly from images shown. Output voltage/current may have small tolerances.

---

🔧 KEY FEATURES

• ⚡ Efficient Switching Technology
 – Converts AC mains to stable 5V DC with minimal energy loss

• 🛡 Built-In Protections
 – Overload, Over Voltage, and Short Circuit protection with auto-recovery

• 🔄 Universal AC Input
 – Supports full AC range from 220V–240V at 50/60Hz

• 🌐 Earthing Support for Safety
 – Metal casing includes ground (earth) terminal for electrical safety

• 🔬 Built-in EMI Filter
 – Enhances signal stability and reduces electrical noise

• 🌬 Fan-Free Passive Cooling
 – Air convection design ensures silent operation

• 🧪 100% Full Load Burn-In Tested
 – Assures long-term reliability and performance

• 🪛 Compact & Lightweight
 – Metal case designed for hidden and embedded installations

---

📐 SPECIFICATIONS

• Input Voltage: AC 220–240V, 50/60Hz
• Output Voltage: 5V DC
• Output Type: DC
• Protection Features: Overload, Over Voltage, Short Circuit
• Output Current: 5 Amp
• Shell Material: Metal Case / Aluminum Base
• Color: Silver
• Cooling Method: Free air convection
• Design: Built-in EMI Filter
• Usage Type: Indoor Only
• Category: Switch Mode Power Supply (SMPS)

---

🔌 WIRING DETAILS

AC Input (from mains):
• 🔴 L (Live): Connect to AC Line (220–240V)
• 🔵 N (Neutral): Connect to AC Neutral
• 🟢 ⏚ Earth (Ground): Connect to Earth terminal for safety (especially when metal casing is used)

DC Output (to load):
• 🔴 +V: Positive 5V DC Output
• ⚫ –V: Ground / Negative Output

---

🧰 IDEAL APPLICATIONS

• 💡 Indoor LED Strip Lighting
• 🖥 Embedded Electronics Projects
• 📦 Enclosed Cabinet Lighting
• 🧰 DIY Hobby & Prototype Builds
• 🧪 Lab Testing Power Supply
• 🔌 Compact Power Distribution Units

---

📦 PACKAGE INCLUDES

• 1 × 5V SMPS DC Power Supply (Indoor Use Only)
