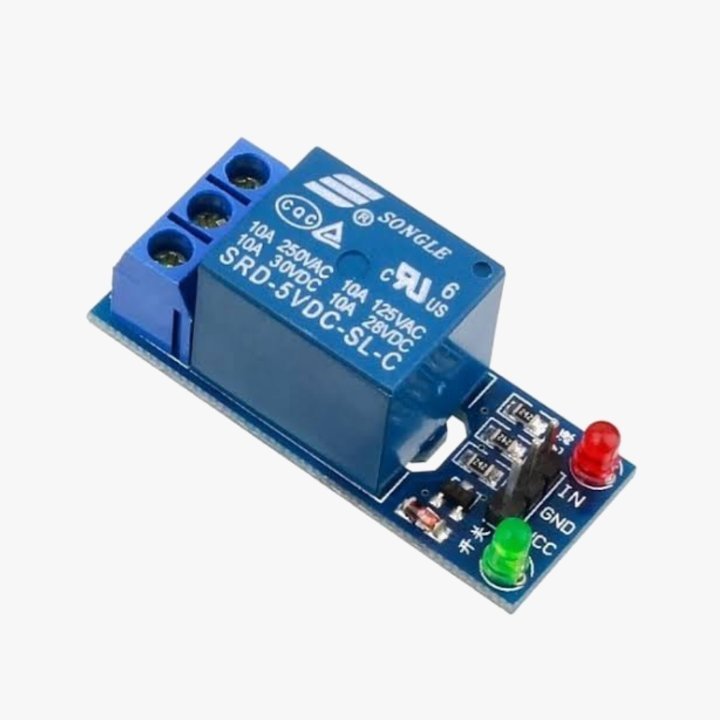

5V-1 Channel Relay Module with Optocoupler – 1 Pcs

Description

5V-1 Channel Relay Module without Optocoupler – 1 Pcs

Product Overview:

The 5V-1 Channel Relay Module without Optocoupler is a reliable solution for controlling high-power devices using microcontrollers like Arduino, AVR, PIC, and ARM. Designed to handle high current and voltage, this module is ideal for home automation projects, robotics, and DIY electronics.

Key Features:

• ⚡ High Power Handling: Supports DC 5V/10A and AC 250V/10A, making it suitable for controlling various high-power devices.
• 🔄 1 Channel Relay: Equipped with one normally closed (NC) and one normally open (NO) contact for flexible control.
• 🔋 Low Power Requirement: Requires only 15mA – 20mA driver current, ensuring efficient operation.
• 📏 Triode Drive: Enhances the relay coil performance for stable switching.
• 🔒 High Impedance Control: Features a high impedance controller pin to prevent interference.
• 🛡️ Pull-Down Circuit: Integrated pull-down circuit to avoid false triggering.

📋 Specifications:

• Operating Voltage: 5V DC
• Max Current: 20mA
• Relay Contact Capacity:
  • AC 250V: 10A
  • DC 5V: 10A
• Contacts: 1 NO (Normally Open), 1 NC (Normally Closed)
• Optocoupler: No (direct control)
• Compatibility: Arduino, AVR, PIC, ARM, and other microcontrollers

🎯 Applications:

• 🏠 Home Automation: Control lights, fans, and other appliances remotely.
• 🤖 Robotics: Switch motors and other high-power components safely.
• 🔄 Industrial Control: Ideal for controlling pumps, solenoids, and other equipment.
• 🎓 Educational Projects: Suitable for learning about relays and control circuits.
• 🛠️ DIY Electronics: Perfect for custom projects requiring high-power control.

🌟 Benefits:

• ✅ Efficient Control: Low power requirement ensures minimal energy consumption.
• ✅ Versatile Use: Compatible with a wide range of microcontrollers.
• ✅ Safe Switching: Designed to handle high voltage and current safely.
• ✅ Cost-Effective: Provides high performance at an affordable price.
• ✅ Simple Integration: Easy to connect and program with microcontrollers.

📦 Package Includes:

• 1 x 5V-1 Channel Relay Module without Optocoupler
