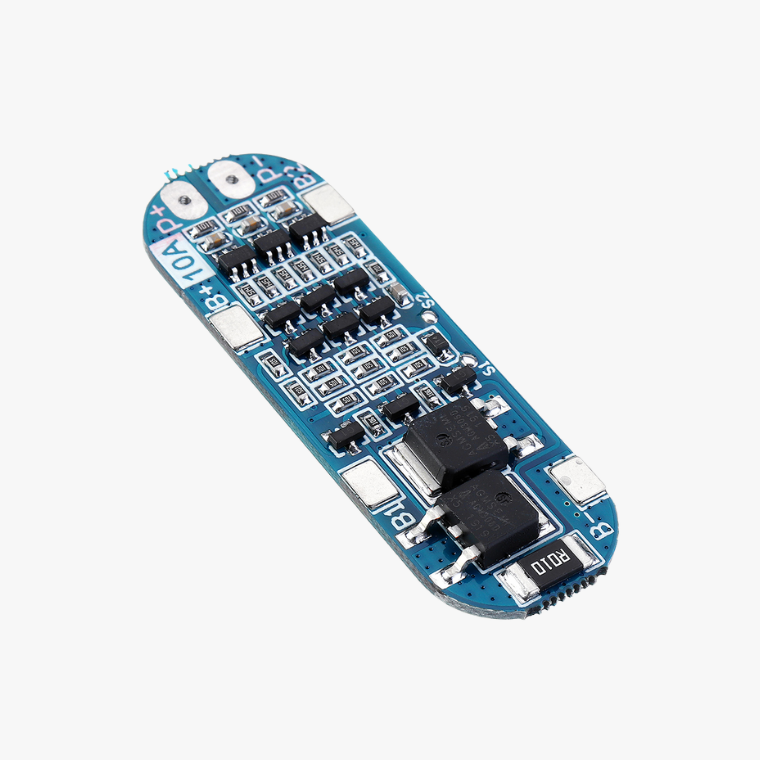

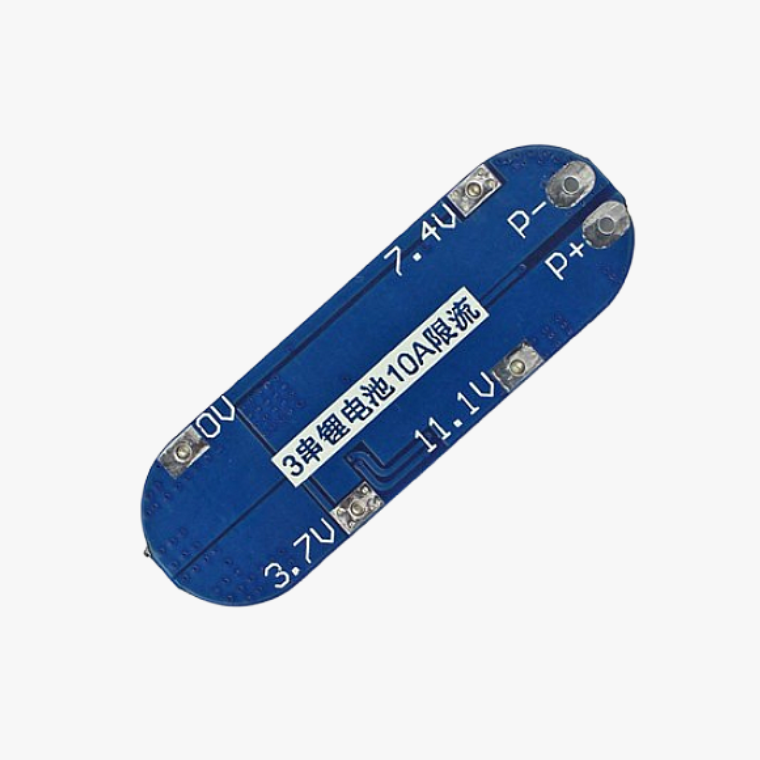

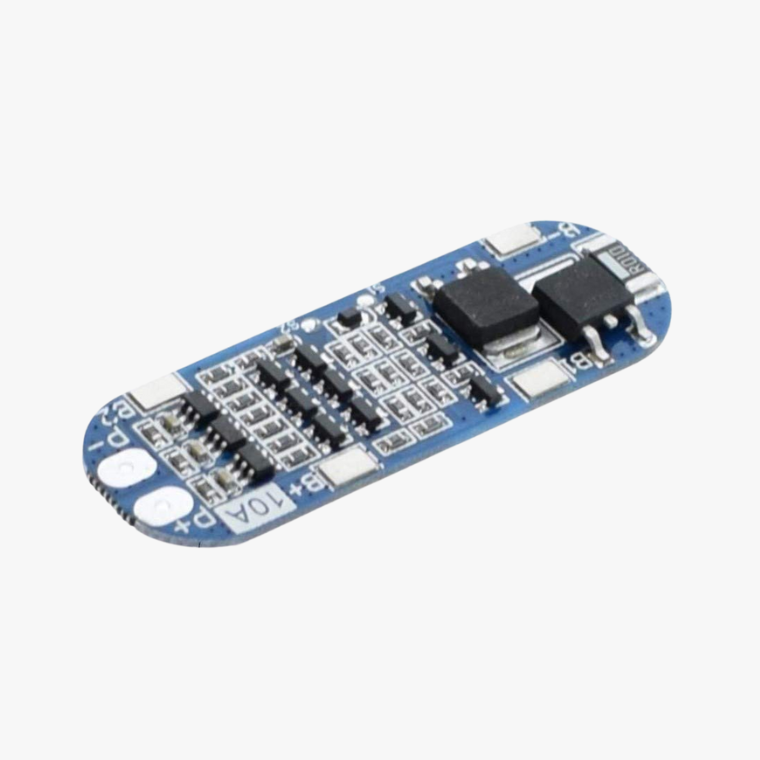

3S 10A BMS For 12v-18650 Lithium Battery Protection – 1 Pcs

Description

3S 10A BMS For 12V 18650 Lithium Battery Protection – 1 Pcs

Product Overview:

The 3S 10A BMS (Battery Management System) is designed to safeguard 3-series 18650 lithium batteries, ensuring safe charging, discharging, and reliable performance. This protection module is compatible with 12V lithium battery packs, providing protection against over-charge, over-discharge, over-current, and short circuits. With a maximum discharge current of 10A and an efficient design, this BMS is ideal for DIY battery packs, portable power banks, and other lithium-ion applications.

Key Features:

• 🔋 Comprehensive Protection: Safeguards against over-charge, over-discharge, over-current, and short circuits.
• ⚡ High Current Handling: Supports up to 10A discharge current for power-intensive applications.
• 🔄 Self-Recovery: Equipped with self-recovery functionality for enhanced safety and convenience.
• 📏 Compact Design: Small form factor for easy integration into battery packs.
• ⏳ Long Lifespan: Designed for over 30,000 hours of reliable operation.
• 🌡️ Wide Temperature Range: Operates efficiently from -40℃ to +80℃.

📋 Specifications:

• Battery Configuration: 3S (3 series 18650 cells)
• Rated Voltage: 11.1V (18650) / 12.6V (Fully Charged)
• Operating Current: 6-8A
• Current Limit: 10-13A
• Resting Current: < 30µA
• Internal Resistance: < 100mΩ
• Short-Circuit Protection: Yes, with self-recovery delay
• Storage Temperature: -40℃ to +80℃
• Effective Lifetime: Over 30,000 hours

🎯 Applications:

• 🔋 DIY Battery Packs: Ideal for building custom lithium-ion battery packs.
• 🚲 E-Bikes and Scooters: Ensures safe power management for electric vehicles.
• ⚡ Portable Power Banks: Suitable for power banks with 12V lithium batteries.
• 📡 Solar Energy Systems: Integrate into solar battery setups for efficient energy management.
• 🛠️ Hobby Projects: Perfect for RC cars, drones, and other DIY projects.

🌟 Benefits:

• ✅ Enhanced Safety: Prevents potential risks like overcharging and short circuits.
• ✅ Reliable Performance: Consistent power management for high-demand applications.
• ✅ Energy Efficient: Low resting current minimizes power loss.
• ✅ User-Friendly: Easy to integrate into various lithium-ion applications.
• ✅ Cost-Effective: Offers robust protection at an affordable price.

📦 Package Includes:

• 1 x 3S 10A BMS For 12V 18650 Lithium Battery Protection
