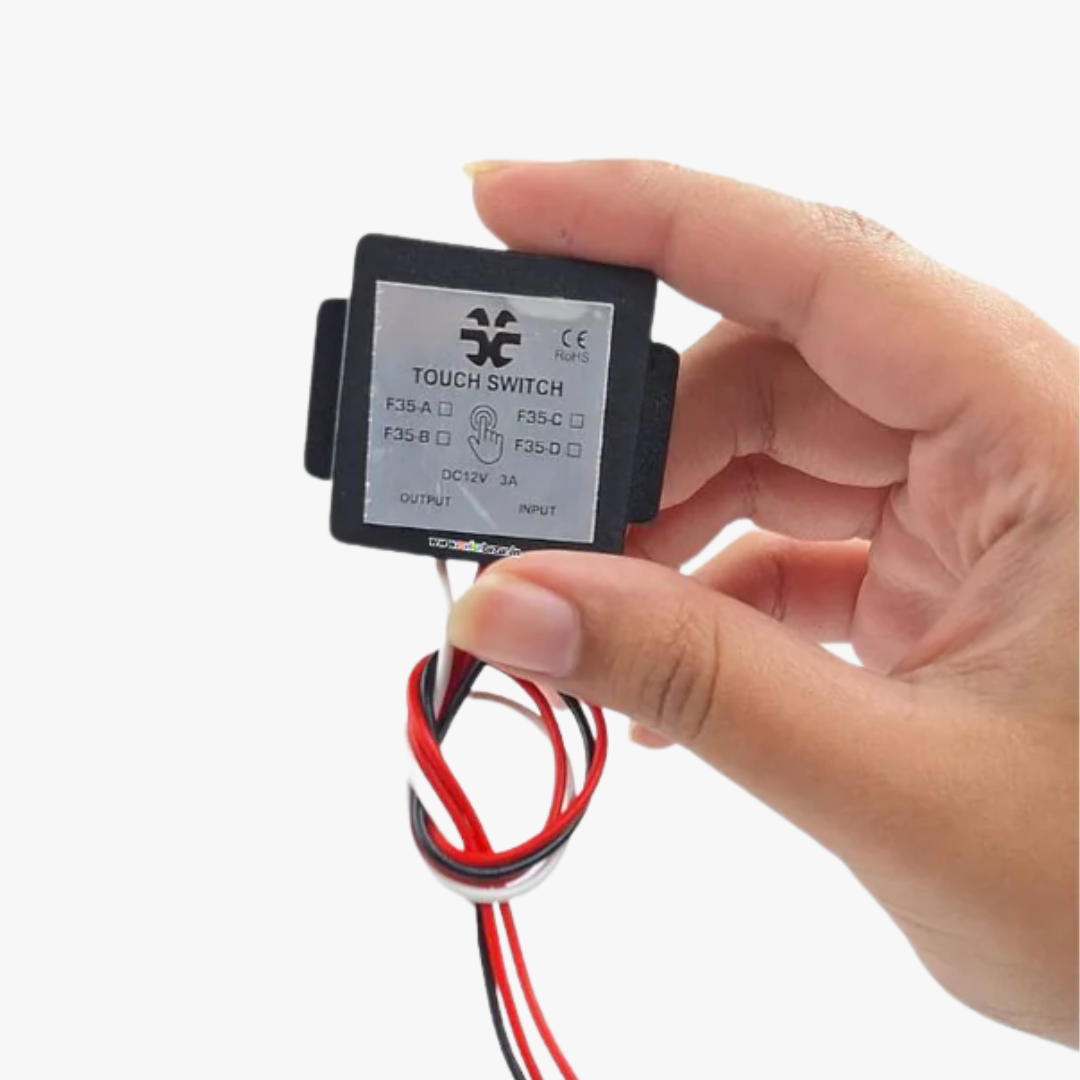

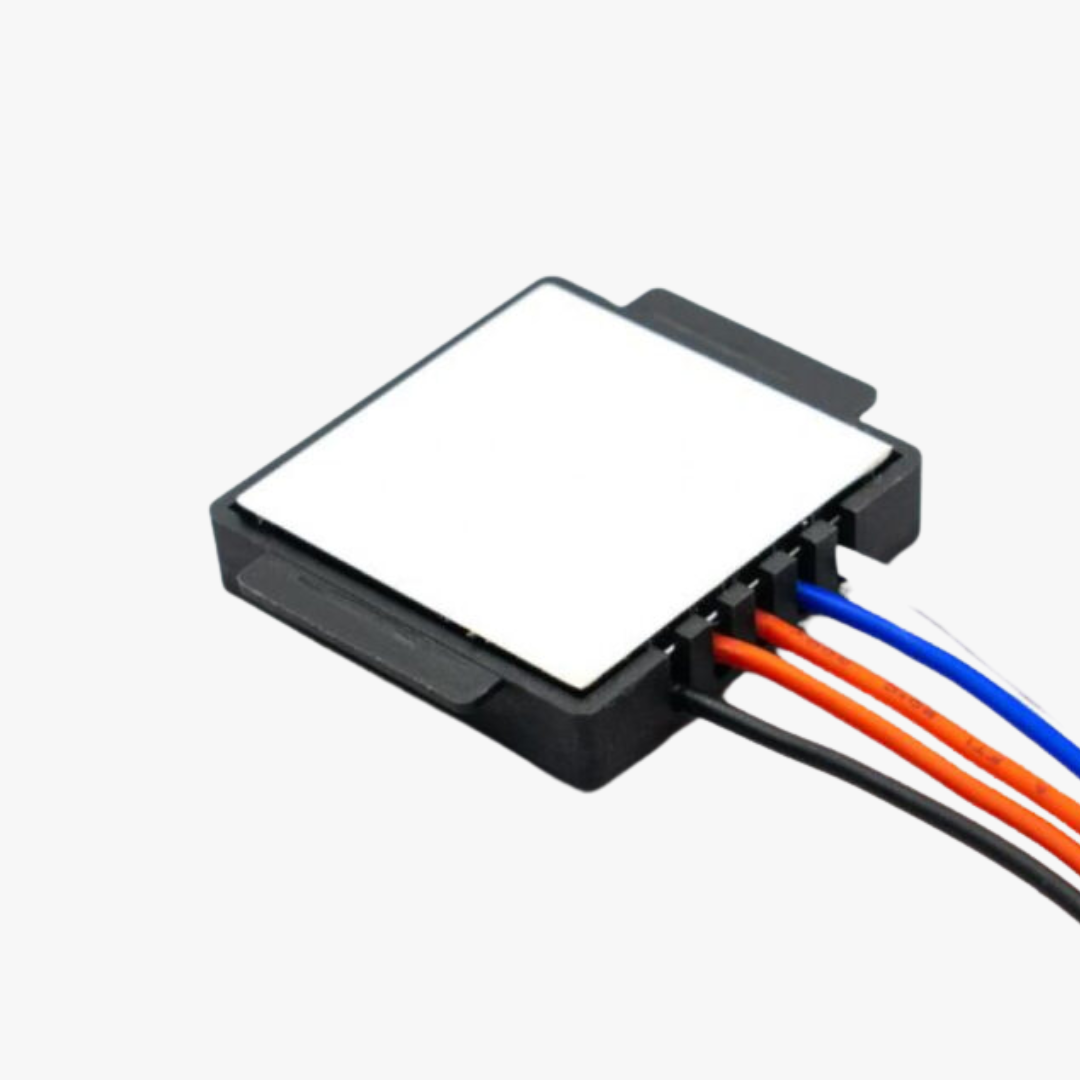

12V 3A Touch Sensor Switch for Mirror Light | Smart Dual LED Control with Dimming

Description

🔹 12V 3A Touch Sensor Switch for Mirror Light | Smart Dual LED Control with Dimming

Take your smart mirror or LED lighting project to the next level with this Capacitive Touch Sensor Switch designed for 12V DC LED strip control. Perfect for vanity mirrors, bathroom mirrors, wardrobes, or any two-channel lighting setup where sleek, touch-based control is desired.

🔧 KEY FEATURES

• 👆 Touch-Based Operation
 – Simple single-touch switching for multiple lighting modes

• 💡 Dual Output Control
 – Controls two LED channels independently or together

• 🌈 Backlit Touch Indicator
 – White glow in standby mode, turns blue when lights are on

• 📉 Smooth Dimming Function
 – Long-press for stepless brightness adjustment

• 🔁 Intelligent Toggle Sequence
  1️⃣ 1st Touch: Green wire channel ON
  2️⃣ 2nd Touch: White wire channel ON
  3️⃣ 3rd Touch: Both channels ON
  4️⃣ 4th Touch: All OFF

📐 SPECIFICATIONS

• Input Voltage: 12V DC
• Max Output Current: 3A
• Control Function: White/Warm Dual-Color Infinite Dimming
• Sensor Dimensions: 36 × 33 × 7 mm
• Input Wire: 2 wires (Red & Black), 300mm length
• Output Wire: 3 wires (Red, Green, White), 150mm length
• Weight: Approx. 10g

🔌 WIRING DETAILS

Input (Power):
• 🔴 Red: +12V DC
• ⚫ Black: GND

Output (To LEDs):
• 🔴 Red: +12V Common (Shared Positive)
• 🟢 Green: –VE for LED Strip 1
• ⚪ White: –VE for LED Strip 2

🧰 IDEAL APPLICATIONS

• 🪞 Smart LED Mirrors
• 💡 Dual-Color or Dual-Zone LED Strips
• 🚗 Automotive Ambient Lighting
• 🏠 Compact Appliance Lighting Control
• 🛠 DIY Vanity or Wardrobe Projects

📦 PACKAGE INCLUDES

• 1 × 12V 3A Touch Sensor Switch (Red-Green-White Output Type)
