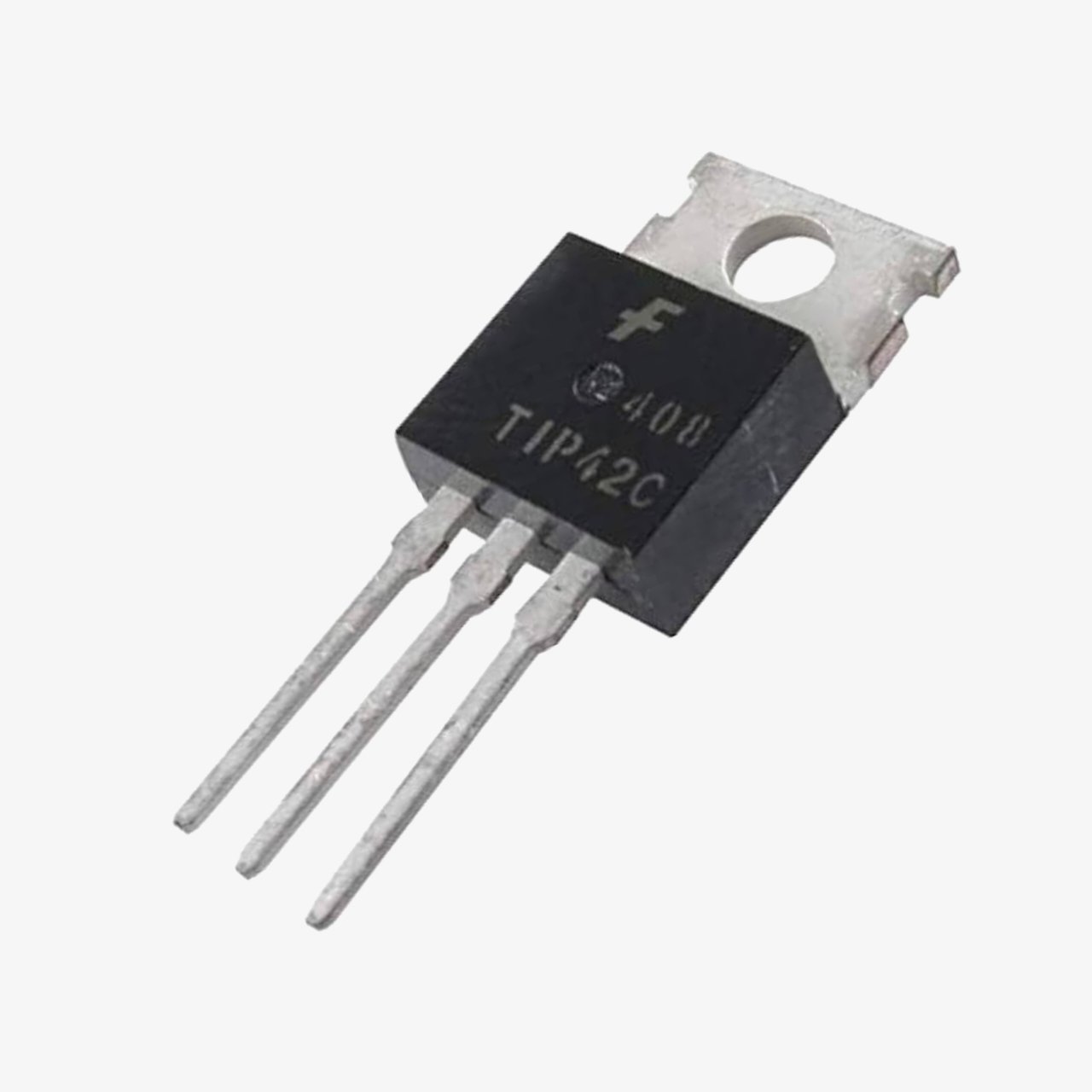

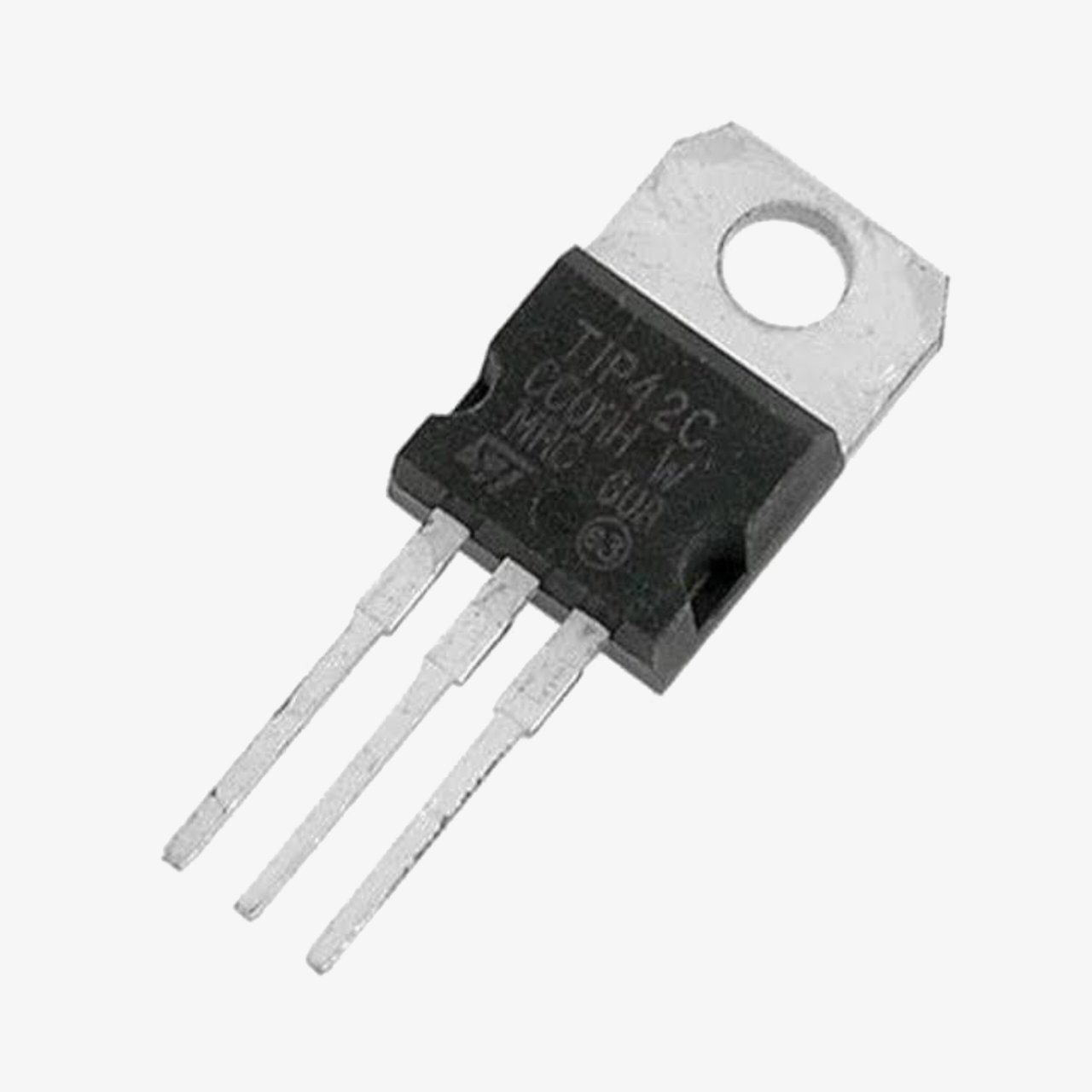

TIP42C PNP Power Transistor – 100V 6A TO-220 Package – 1 PCS

Description:

The TIP42C is a versatile PNP  transistor designed to deliver reliable performance in various electronic applications. With its three-layer structure, it efficiently amplifies changes in base current to produce corresponding changes in collector current, making it suitable for amplifier and switching circuits. This transistor features low saturation voltage and simple drive requirements, ensuring ease of use in different circuit designs. Its high safe operating area and low distortion characteristics make it ideal for complementary designs requiring low distortion. Additionally, its compact size and ease of handling further enhance its usability.

Features:

• PNP transistor for amplifier and switching applications
• Low saturation voltage for efficient operation
• Simple drive requirements for ease of use
• High safe operating area for reliability
• Suitable for low distortion complementary designs
• Easy to carry and handle

Detailed Specifications:

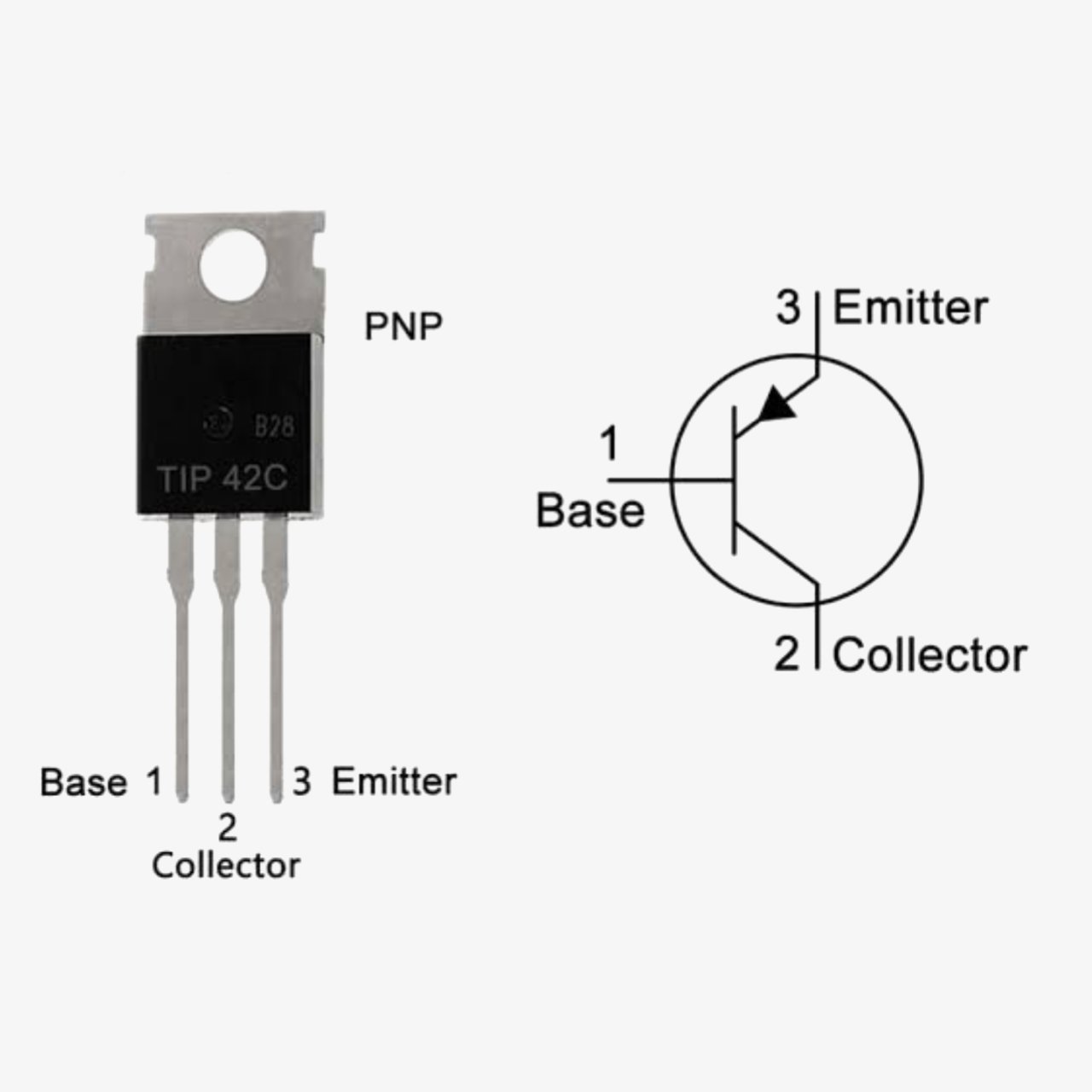

• Transistor Polarity: PNP
• Collector−Emitter Voltage (VCEO): 40V DC
• Collector−Base Voltage (VCBO): 40V DC
• Continuous Collector Current (Ic): 6A DC
• Continuous Base Current (Ib): 2A DC
• Emitter Base Voltage (VEBO): 5V DC
• Power Dissipation (Pd): 65W
• Operating Temperature Range: -65°C to 150°C
• DC Current Gain (hFE): 15-75

Applications:

• Amplifier circuits
• Switching circuits
• Power regulators
• Voltage converters
• Motor control
• Audio amplifiers
• Power supplies

Package Includes:

• 1 x TIP42C PNP Power Transistor – 100V 6A TO-220 Package – 1 PCS
