Description

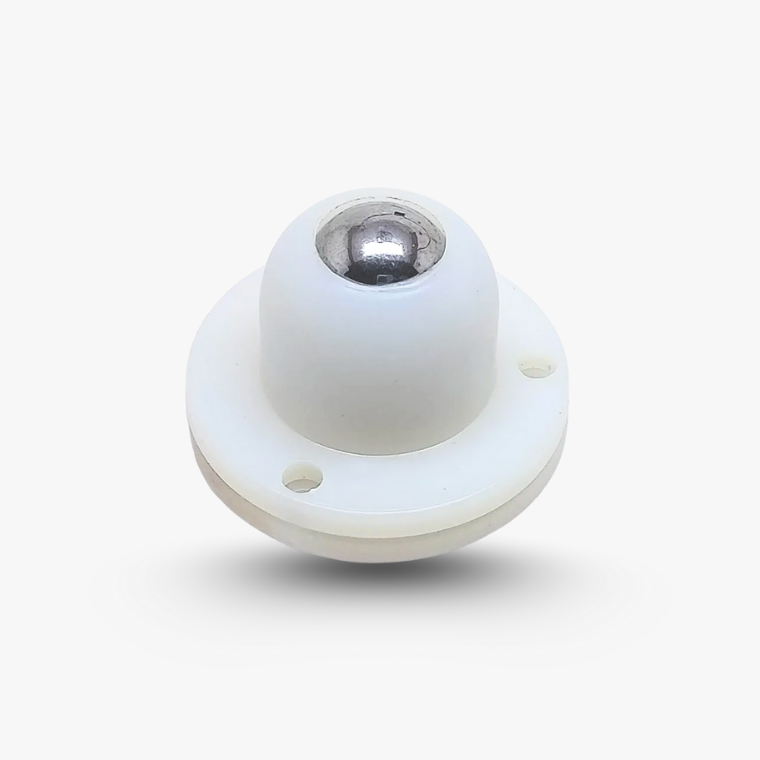

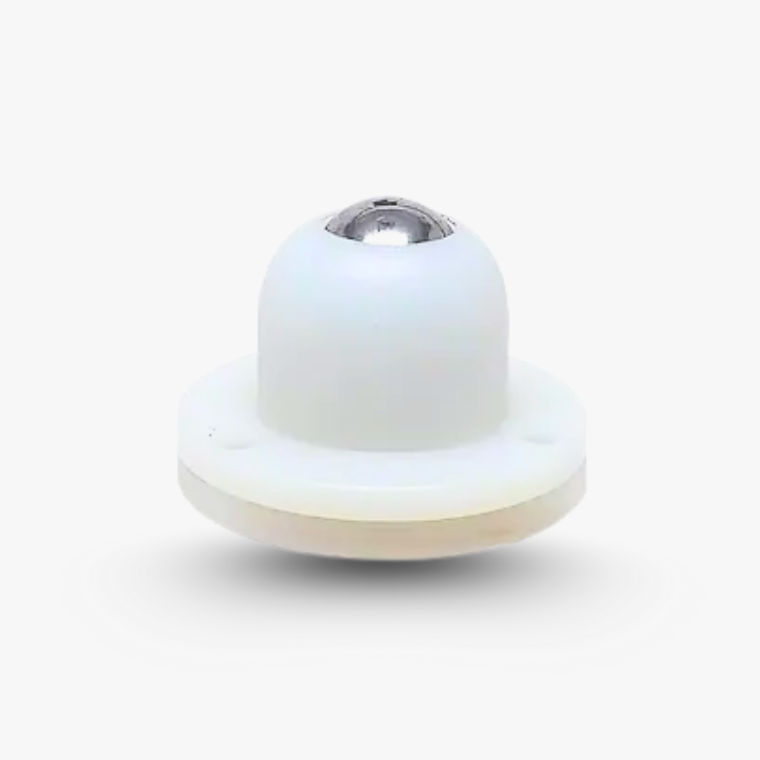

⚙️ Small Ball Castor Wheel – Omnidirectional Support for Robots

🔩 Smooth, Flexible & Reliable Movement

The small ball castor wheel is an omnidirectional wheel that acts as a support or neutral wheel for small robots. Designed to provide stability without restricting movement, it allows robots to move smoothly in any direction with greater flexibility.

---

🔑 Key Features

• 🔄 Omnidirectional Movement – Enables smooth multi-directional motion for small robots.

• ⚙️ Durable Construction – Stainless steel ball with a plastic housing for strength and lightweight design.

• 🛠️ Easy Mounting – Features three mounting holes spaced 120° apart for secure installation.

• 📏 Compact Size – Small and lightweight, perfect for mini robotics projects.

• 🤖 Stable Support – Works as a free-rolling support wheel alongside motor-driven wheels.

---

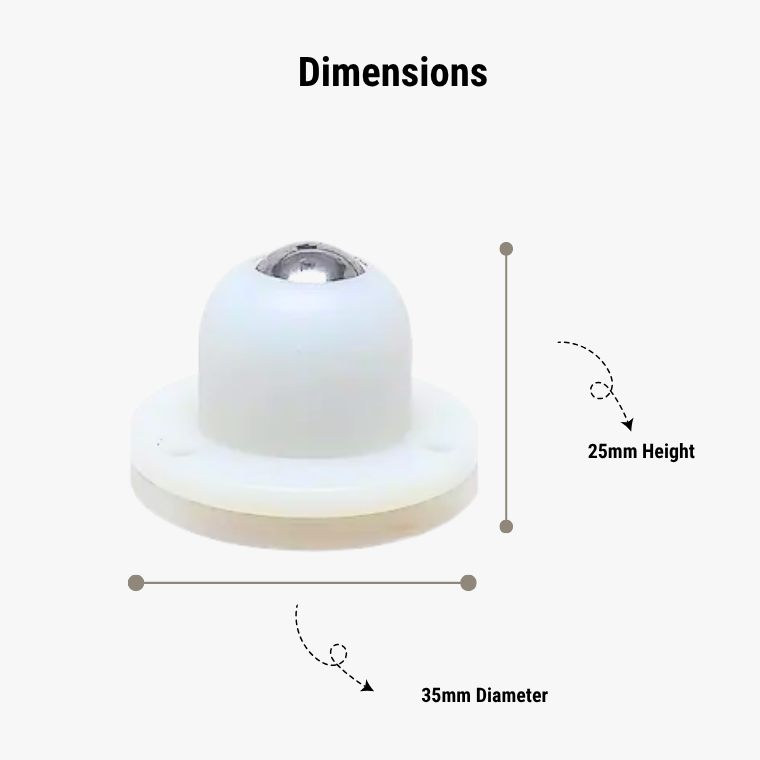

📋 Specifications

• Base Plate Diameter: 35mm

• Castor Wheel Diameter: 18mm

• Height: 25mm

• Ball Material: 304 Stainless Steel

• Body Case Material: Plastic

• Weight: 15g

• Mounting Holes: 3 holes, 120° apart, 3.4mm diameter

---

🎯 Ideal Applications

• 🤖 Small Robots – Works as a support/neutral wheel for balance and maneuverability

• 🔬 DIY Robotics Projects – Educational kits, mini bots, and prototypes

• 🏠 Lightweight Mechanical Projects – Small trolleys, models, and hobby builds

---

📦 Package Contents

• 1 × Small Castor Wheel
