RF24L01+PA+LNA SMA Wireless Transceiver Antenna

Description

RF24L01+PA+LNA SMA Wireless Transceiver Antenna

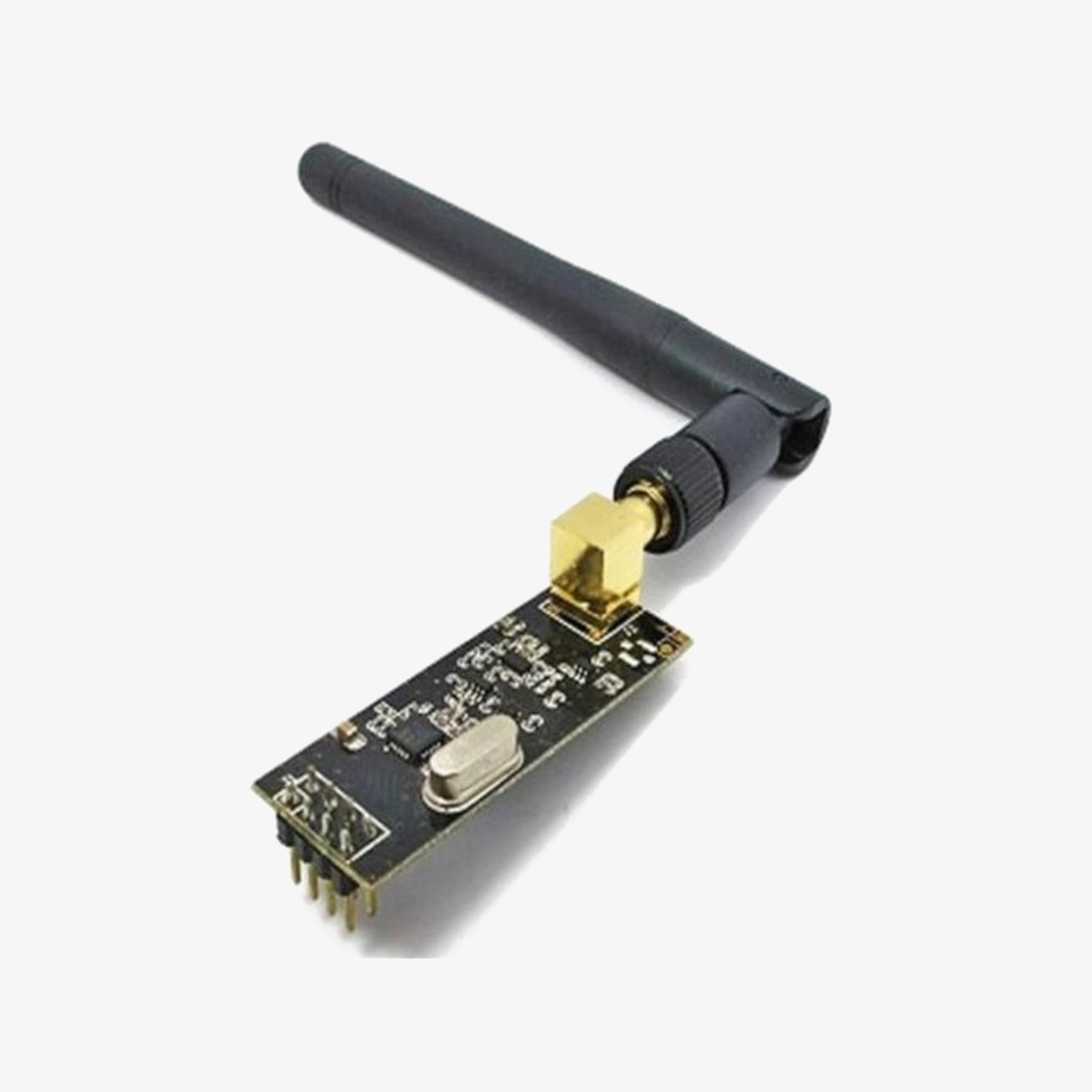

The NRF24L01 module is a state-of-the-art RF module that uses Nordic Semiconductor’s 2.4GHz transceiver, the NRF24L01+. This IC operates in the 2.4GHz band and comes with many new features, such as additional pipelines, buffers, and an auto-retransmit function. The board has a reverse-polarized SMA connector that maximizes the RF range, as well as a PA and LNA circuit, which enables long-distance communication when combined with an external antenna.

⚙️ Features & Specifications:

• 📡 Frequency Band: 2.4GHz ISM band (license-free)

• ⚡ Transmit Power: Greater than +20 dBm

• 🔧 Six-channel Data Reception

• 🚀 High Speed: 2Mbit/s, enabling high-quality VoIP

• 📶 Multi-frequency Points: 125 frequency points for multi-point communications and frequency hopping

• 🔒 Low Cost: Integrated high-speed signal processing for RF protocol, including automatic packet resend and acknowledge signal generation

• 🔌 SPI Interface: Easy communication with MCU I/O ports

• 🛠️ RF Development Simplification: No need for additional RF development

• 💻 Software Compatible: Fully compatible with NRF24L01 modules

📌 Applications:

• 📲 Wireless Communication Systems

• 🔧 Remote Control Systems

• 🎛️ Sensor Networks

• 📡 Data Transmission Projects

• 🤖 Robotics and Automation

🌟 Benefits:

• 📶 Long-range Communication up to 1000 Meters

• ⚙️ Enhanced Stability with PA and LNA Circuits

• 🔧 Simple Integration with Existing Systems

• 💪 Reliable Performance with Minimal Interference

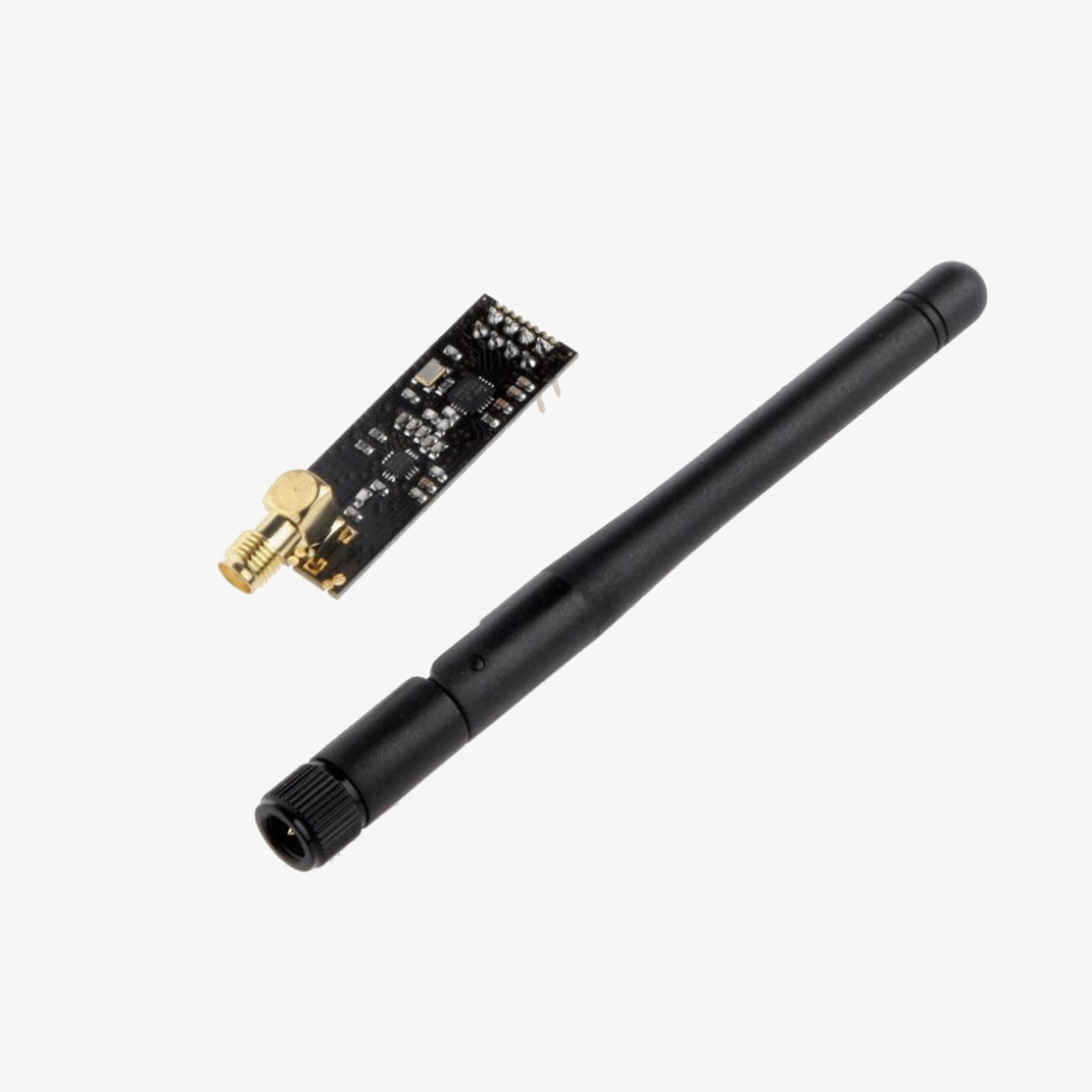

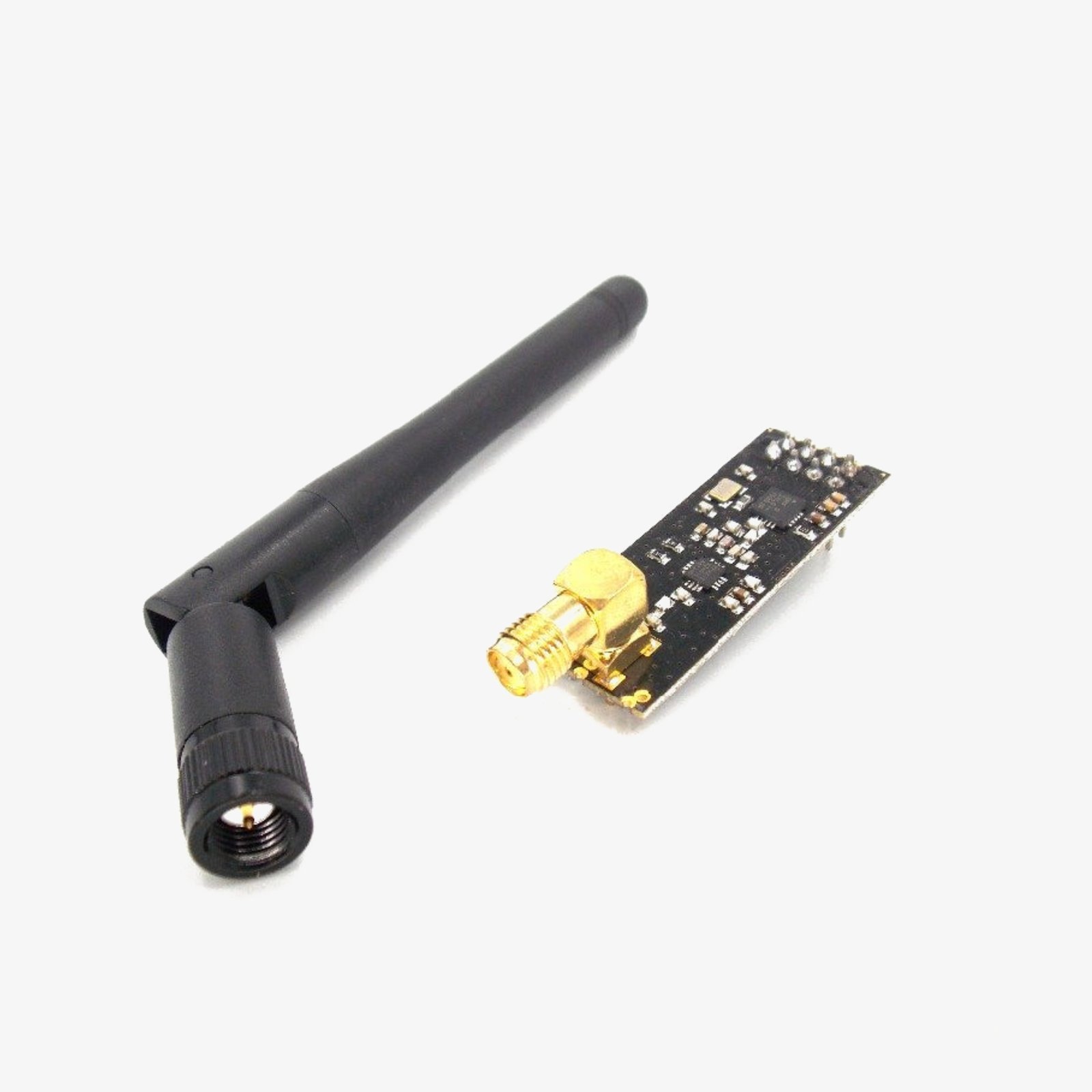

📦 Package Includes:

• 1 x nRF24L01+PA+LNA Module

• 1 x 2DB 2.4G Antenna
