FT232RL USB to TTL Serial Adapter Module – FTDI USB to TTL Converter

Description

FT232RL USB to TTL Serial Adapter Module – FTDI USB to TTL Converter for Arduino

The FT232RL USB to TTL Adapter Module is a high-quality FTDI-based USB-to-serial converter designed for seamless communication between your computer and microcontroller-based projects. Whether you’re working with Arduino, Raspberry Pi, ESP8266, or other development boards, this module provides stable and reliable data transmission with support for both 3.3V and 5V logic levels.

Key Features:

🔹 FT232RL Chipset – Ensures stable and high-speed USB-to-TTL communication.
🔹 Dual Voltage Support – Compatible with both 3.3V and 5V logic levels for versatile applications.
🔹 Built-in Overcurrent Protection – 500mA self-resetting fuse protects your circuits from power surges.
🔹 Mini USB Interface – Compact and easy to connect, making it perfect for embedded systems and debugging.
🔹 Communication Indicators – RXD/TXD LED indicators provide real-time data transmission status.
🔹 Multiple Pin Outputs – Includes DTR, RXD, TX, VCC, CTS, and GND for flexible integration.

Technical Specifications:

✔ Chipset: FT232RL
✔ Operating Voltage: 3.3V & 5V
✔ USB Power Protection: 500mA self-resetting fuse

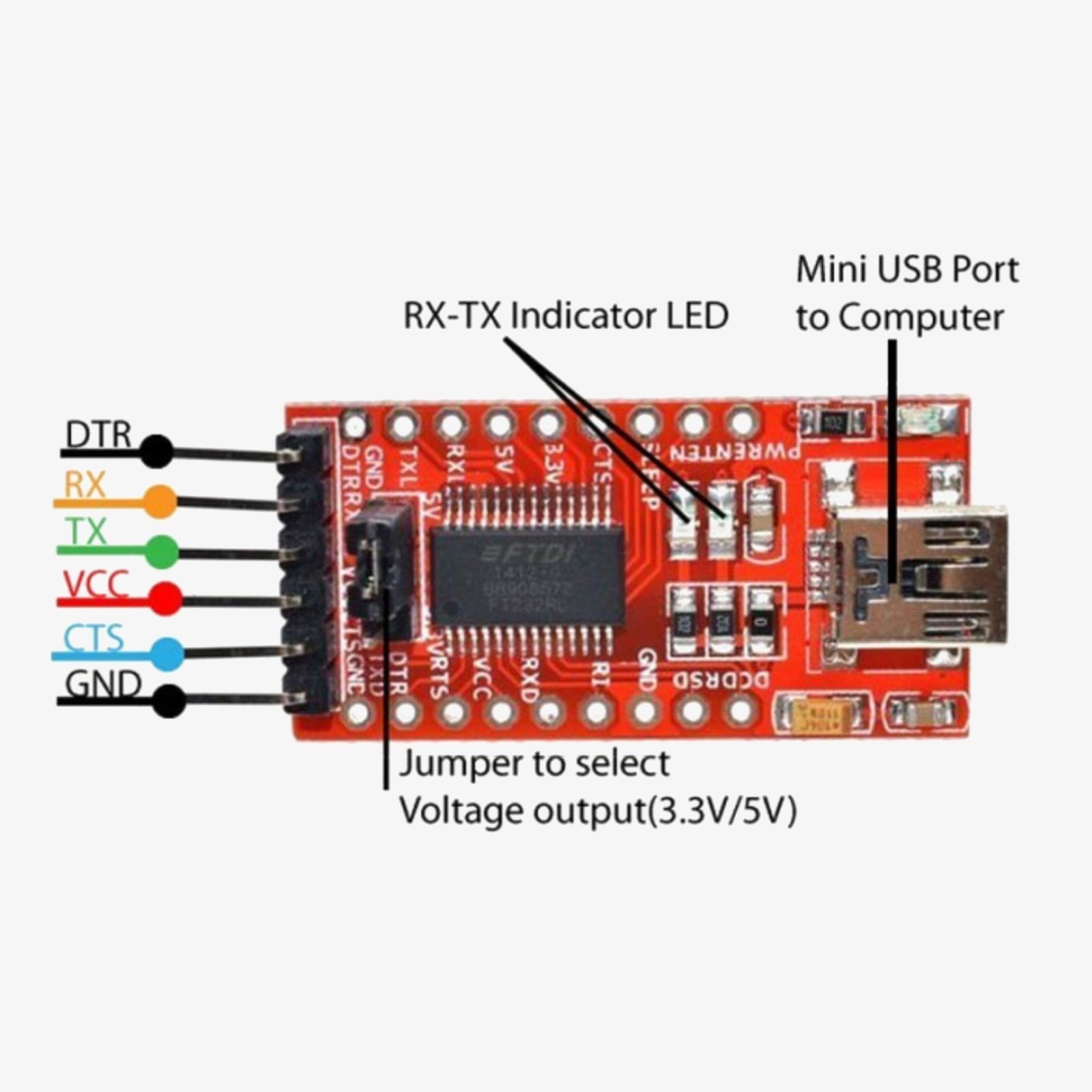

✔ Pin Configuration: DTR, RXD, TX, VCC, CTS, GND
✔ Pitch: 2.54mm (Standard Breadboard-Friendly)
✔ Interface: Mini USB
✔ Module Size: 36mm x 17.5mm

Package Includes:

✅ 1 x FT232RL USB to TTL Serial Adapter Module

Download & Driver Support:

To use this module, install the FTDI driver
