🌀 Flex & Force Sensor – Resistive Film Pressure Sensor RP-L-110

✨ Flexible Sensor for Force & Bend Detection

The RP-L-110 Flex & Force Sensor is a versatile, flexible sensor that changes resistance when bent or subjected to force. With just two output wires, it’s easy to integrate into your projects to detect bending, pressure, or touch. Perfect for robotics, wearable electronics, and interactive systems.

---

🔑 Key Features

• 🤏 Sensitive Force Detection – Detects forces from 20g to 10kg with fast response.

• 🔄 Bend Sensing – Changes resistance when flexed, ideal for gloves or motion sensing.

• ⚡ Fast Response Time – Activation in <10ms, with low hysteresis (<10%).

• 🛡 Stable & Safe – Low drift (<5% over 24h), not sensitive to electrostatic discharge (ESD) or EMI.

• 🖐 Flexible & Thin – Only 0.35mm thick, easy to integrate into tight spaces or wearable devices.

• 🛠️ Versatile Applications – Use for robotic whiskers, finger position sensing, door sensors, and more.

---

📋 Specifications

• Item Type: Film Pressure Sensor

• Pressure Sensing Range: 20g ~ 10kg

• Triggering Force: 20g (resistance < 200kΩ by default)

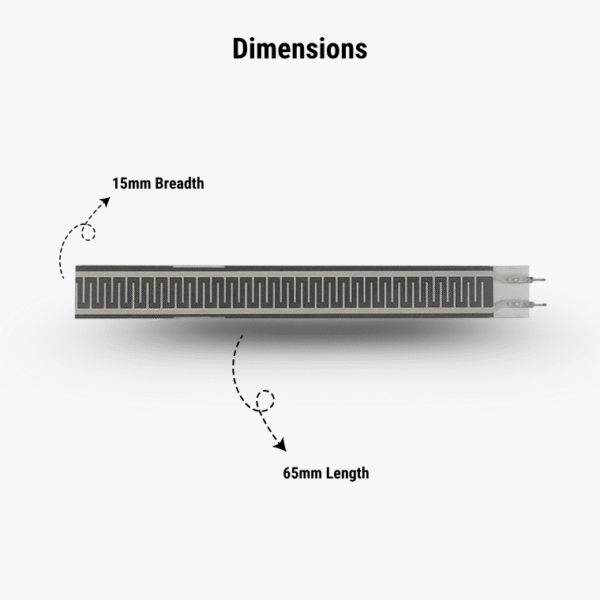

• Thickness: 0.35mm

• Shape: Flexible Sheet

• Not Triggering Resistance: >10MΩ

• Activation Time: <0.01s

• Hysteresis: ±10% (measured with 1000g force)

• Response Time: <10ms

• EMI: Not generated

• ESD Sensitivity: None

• Drift: <5% under 2.5kg load over 24h

---

🎯 Ideal Applications

• 🤖 Obstacle-Avoiding Robots – Sensor whiskers for detecting objects

• 🖐 Wearable Devices – Gloves or suits sensing finger or limb motion

• 🚪 Position Sensors – Doors, levers, or mechanical parts

• 🔬 Interactive Projects – DIY electronics and educational experiments

---

📦 Package Contents

• 1 × Flex Sensor Resistive Film Pressure Sensor RP-L-110
