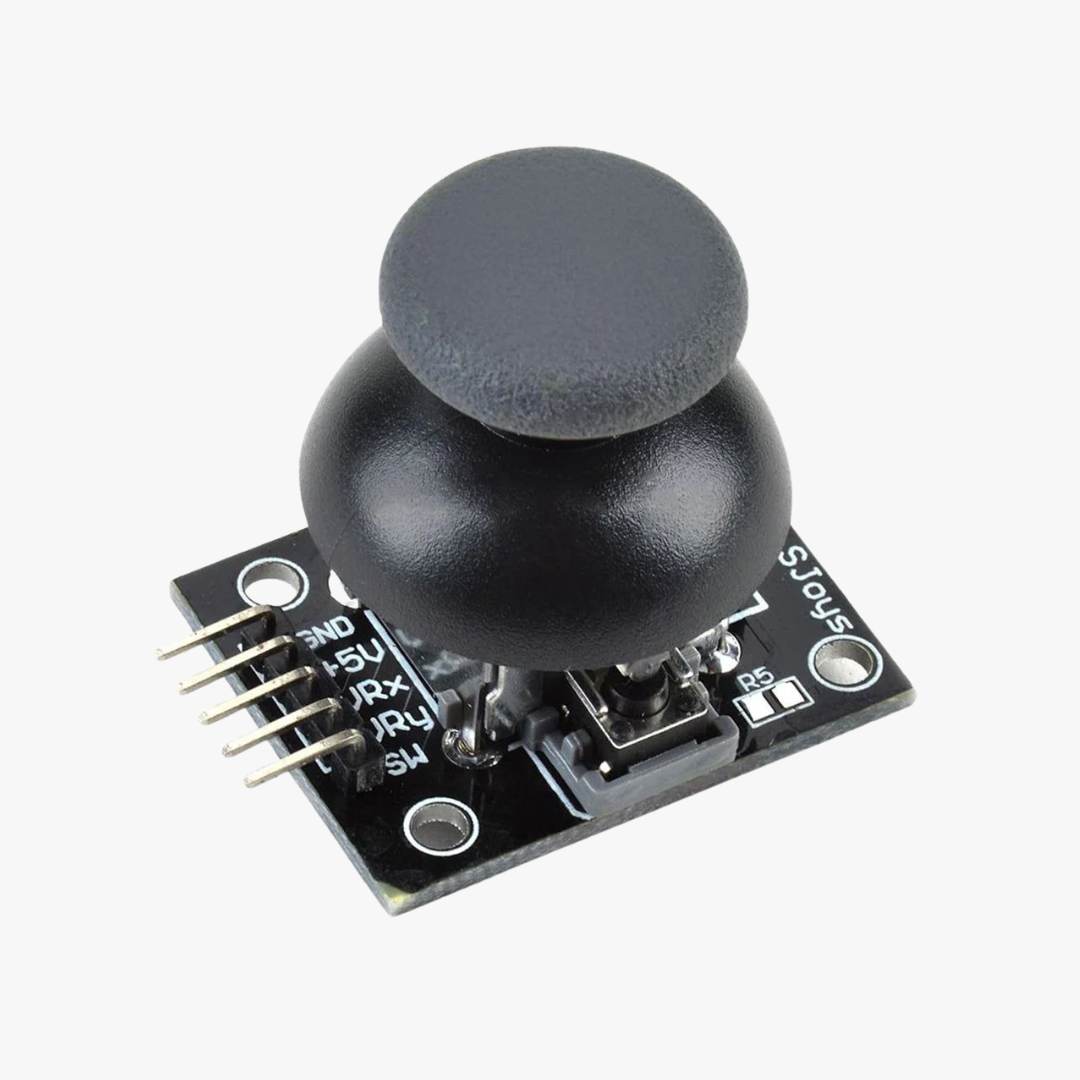

Dual Axis XY Joystick Module | Analog Stick with Push Button – 1Pcs

Description

Dual Axis XY Joystick Module | Analog Stick with Push Button for Arduino

Enhance your interactive electronics projects with this Dual Axis Joystick Module, perfect for Arduino and other microcontroller platforms. It provides smooth analog control over two axes (X and Y), using internal 10kΩ potentiometers, and includes a built-in push button for select or press-down functionality. Ideal for robotics, game controllers, and DIY control interfaces.

🔧 KEY FEATURES

• 🕹 Dual-Axis Analog Control
 – Measures X and Y position with smooth precision via two 10k potentiometers

• 🔘 Built-In Select Button
 – Press down on the joystick to activate an integrated switch

• 🌀 Auto-Centering Mechanism
 – Returns to center position automatically when released

• 🧩 Arduino & MCU Compatible
 – Works seamlessly with Arduino, Raspberry Pi, and other microcontrollers

• ⚖️ Compact & Lightweight
 – Minimal footprint for easy integration into compact projects

• 🔩 Cup-Type Knob Design
 – Comfortable and tactile control experience

📐 SPECIFICATIONS

• Operating Voltage: 5V DC
• Potentiometer Resistance: 10kΩ (X & Y axis)
• Button Type: Tactile switch (press-down)
• Interface: 2.54mm pitch header pins
• Dimensions: 4.0 × 2.6 × 3.2 cm
• Operating Temperature: 0°C to 70°C
• Knob Type: Cup-style analog stick
• Weight: Lightweight (approx.)

🔌 WIRING DETAILS

• 🟢 VRx: Analog output for X-axis
• 🔵 VRy: Analog output for Y-axis
• ⚪ SW: Digital output for button press
• 🔴 VCC: +5V DC supply
• ⚫ GND: Ground

🧰 IDEAL APPLICATIONS

• 🎮 DIY Game Controllers
• 🤖 Robotic Arm Control
• 🛠 Arduino or Microcontroller Projects
• 🧭 Pan-Tilt or Servo Direction Control
• 🧪 Human-Machine Interface Prototyping
• 🧬 Interactive School Projects

📦 PACKAGE INCLUDES

• 1 × Dual Axis XY Joystick Module
