DC 12V Battery Capacity Indicator With Voltage Measurements

Description

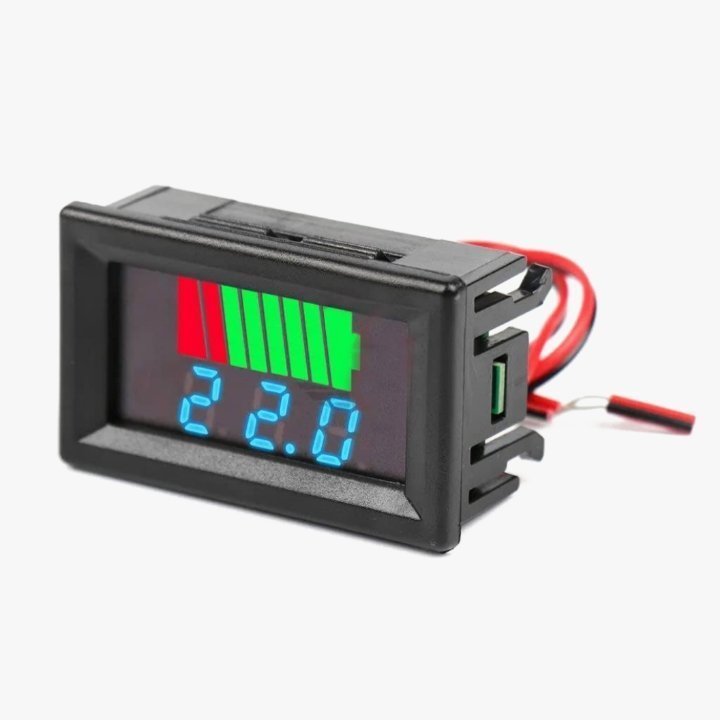

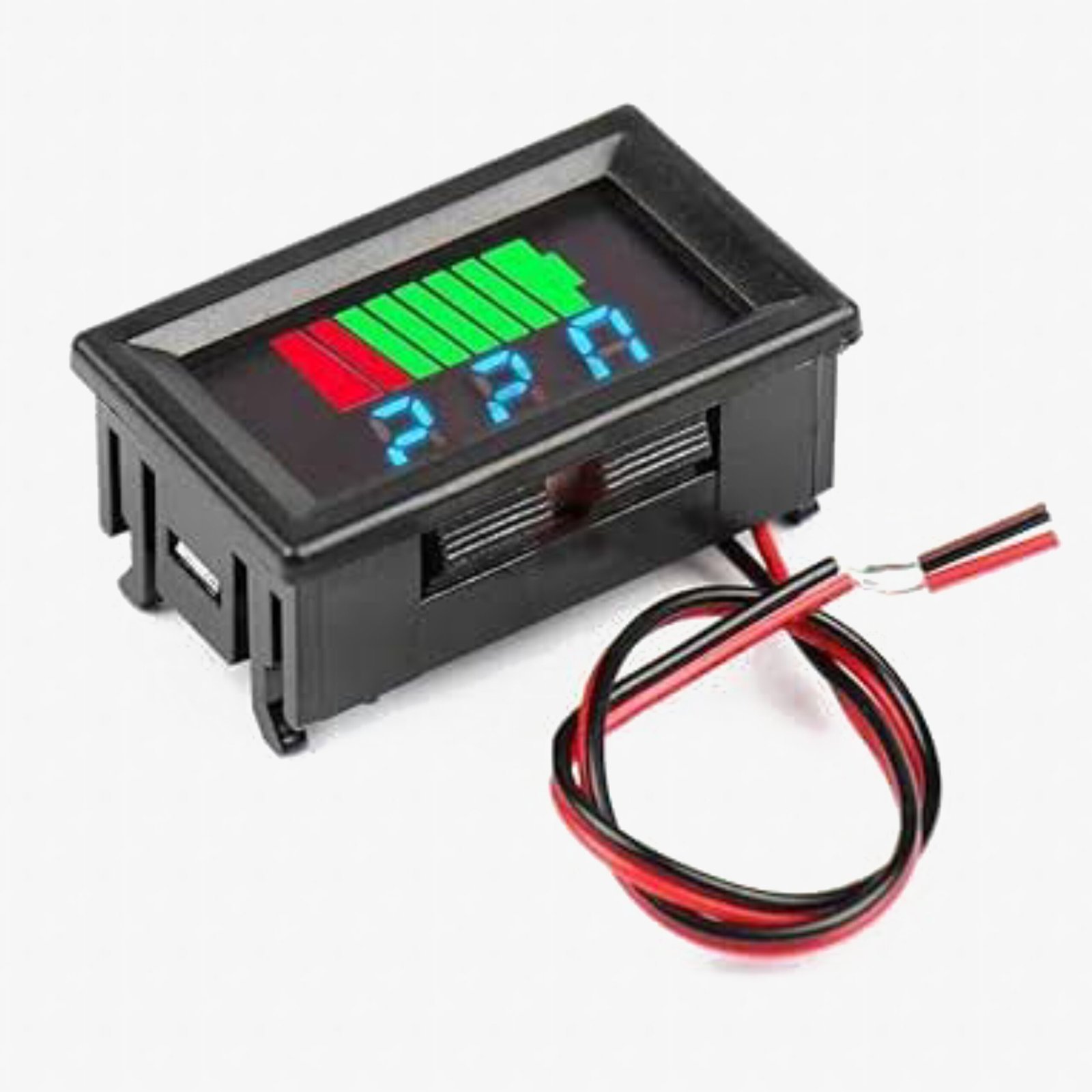

DC 12V Battery Capacity Indicator With Voltage Measurements

Product Overview:

The DC 12V Battery Capacity Indicator With Voltage Measurements is a reliable and accurate tool for monitoring the charge level of your lead-acid battery. With its 10-segment power indicator, this device offers a more precise measurement compared to the common 8-segment indicators found in the market. The battery-shaped electricity grid provides a more visually appealing and intuitive representation of the battery capacity, making it easier to understand at a glance.

Key Features:

• Precise 10-Segment Indicator: Offers a more accurate measurement of battery capacity.
• Battery-Shaped Grid: Provides a clear and intuitive visualization of the battery’s charge level.
• Three-Color Indication: Uses three colors to indicate different levels of charge, making it easy to understand.
• Two-Wire Measurement: Does not require a separate power supply for operation, simplifying installation.
• Wide Voltage Range: Supports a voltage range of DC 12V, 36V, and 60V, making it suitable for various applications.
• Low Power Consumption: Consumes only 5-15 mA of current, ensuring minimal impact on the battery.

Specifications:

• Voltage Error: ±1%
• Segment Levels: 10% 20% 30% 40% 50% 60% 70% 70% 90% 100%
• Withstand Voltage: DC 12V, 36V, 60V
• Working Current: 5-15 mA
• Refresh Rate: Approximately 300mS
• Lead Length: 20cm
• Dimensions: 48 x 29 x 22 mm
• Mounting Hole: 46 x 27 mm
• Net Weight: 16g
• Working Temperature: -10°C to 65°C
• Digital Display: Blue Light

Package Included:

• 3 x 10 Segment Digital Lithium Battery Charge Level Indicators
