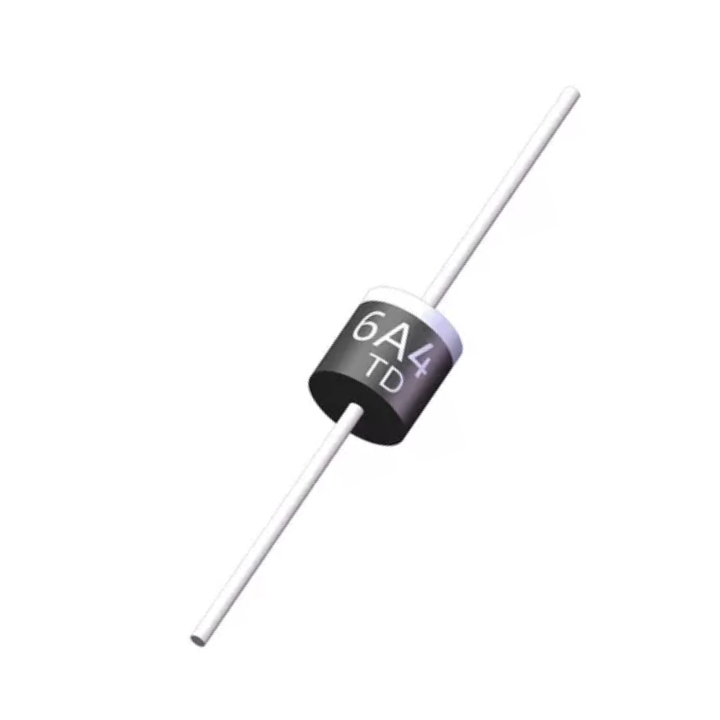

A4 Diode – 6Amp 400V Silicon Rectifier Power Diode – 5 Pcs Pack

Description

A4 Diode – 6Amp 400V Silicon Rectifier Power Diode – 5 Pcs Pack

The A4 Diode (6A4) is a high-performance silicon rectifier diode designed for reliable and efficient unidirectional current flow. With a maximum forward current of 6A and the ability to withstand reverse voltages up to 400V, this diode is ideal for a variety of applications, including rectification, voltage regulation, and circuit protection. Its robust construction ensures consistent performance in demanding environments.

Key Features:

✔ High Current Handling: Supports up to 6A of forward current for power-intensive applications.
✔ High Voltage Capacity: Can withstand up to 400V of reverse voltage.
✔ Low Forward Voltage Drop: Ensures efficient power management with a maximum of 0.90V.
✔ Reliable Performance: Low reverse leakage current of 10µA ensures efficiency.
✔ Wide Temperature Range: Operates effectively between -65℃ to 175℃.
✔ Versatile Use: Ideal for power supplies, automotive electronics, and industrial circuits.

Product Specifications:

⚡ Maximum Recurrent Peak Reverse Voltage: 400V
⚡ Maximum RMS Voltage: 280V
⚡ Maximum DC Blocking Voltage: 400V
⚡ Maximum Forward Current: 6A
📉 Reverse Current: 10µA (DC)
🔋 Forward Voltage: Max 0.90V
🌡 Operating Temperature Range: -65℃ to 175℃
📦 Type: Silicon Rectifier Power Diode

Ideal for:

🔋 Power Supplies – AC to DC rectification.
🚗 Automotive Electronics – Voltage regulation and protection.
🏭 Industrial Applications – Power control and rectification.
🛠️ DIY Projects – High-power circuit designs.

Package Includes:

📦 5 x A4 Diode (6A4) – 6Amp 400V Silicon Rectifier Power Diode
