6 Pins DPDT Slide Switch (On-On, 6 Leg)

Description

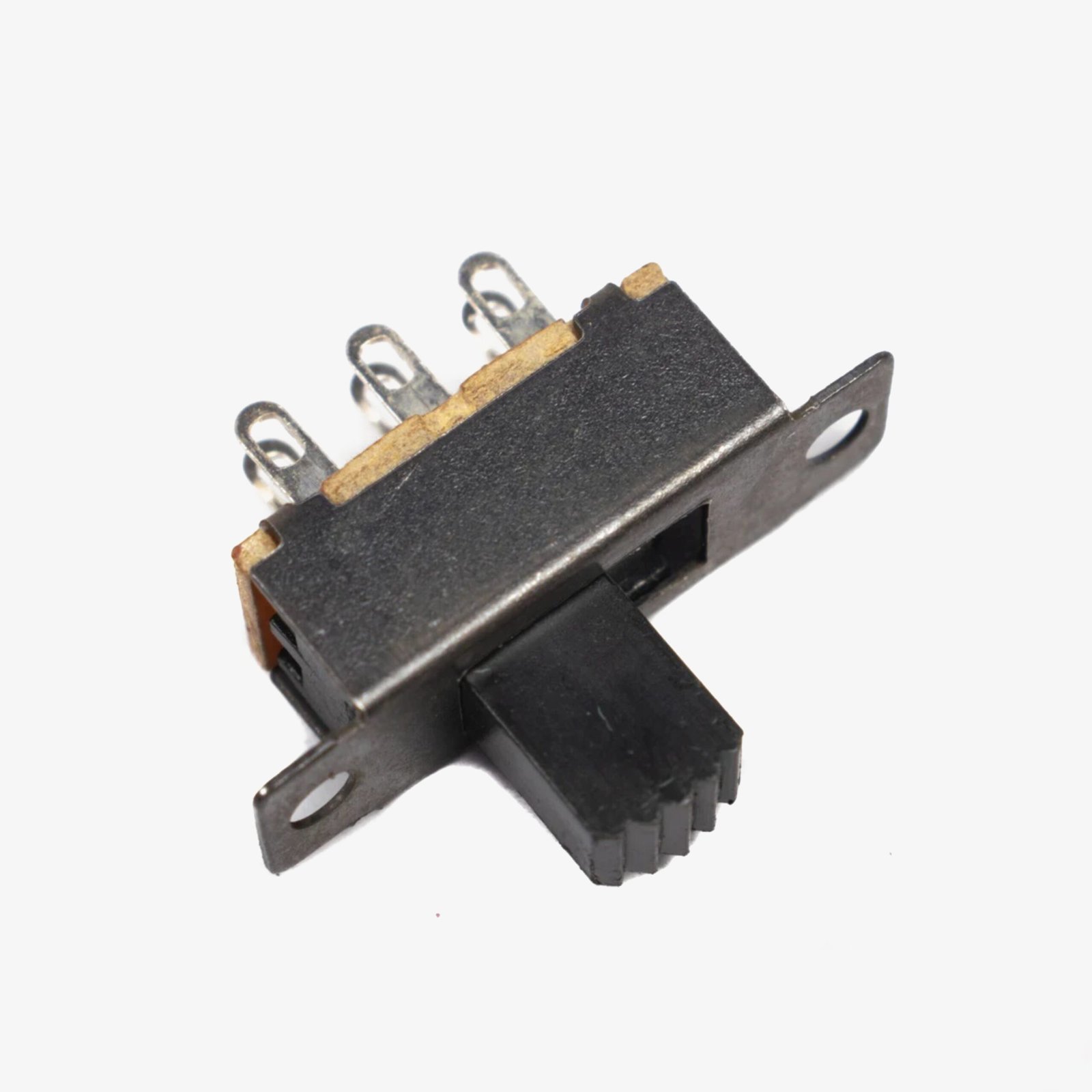

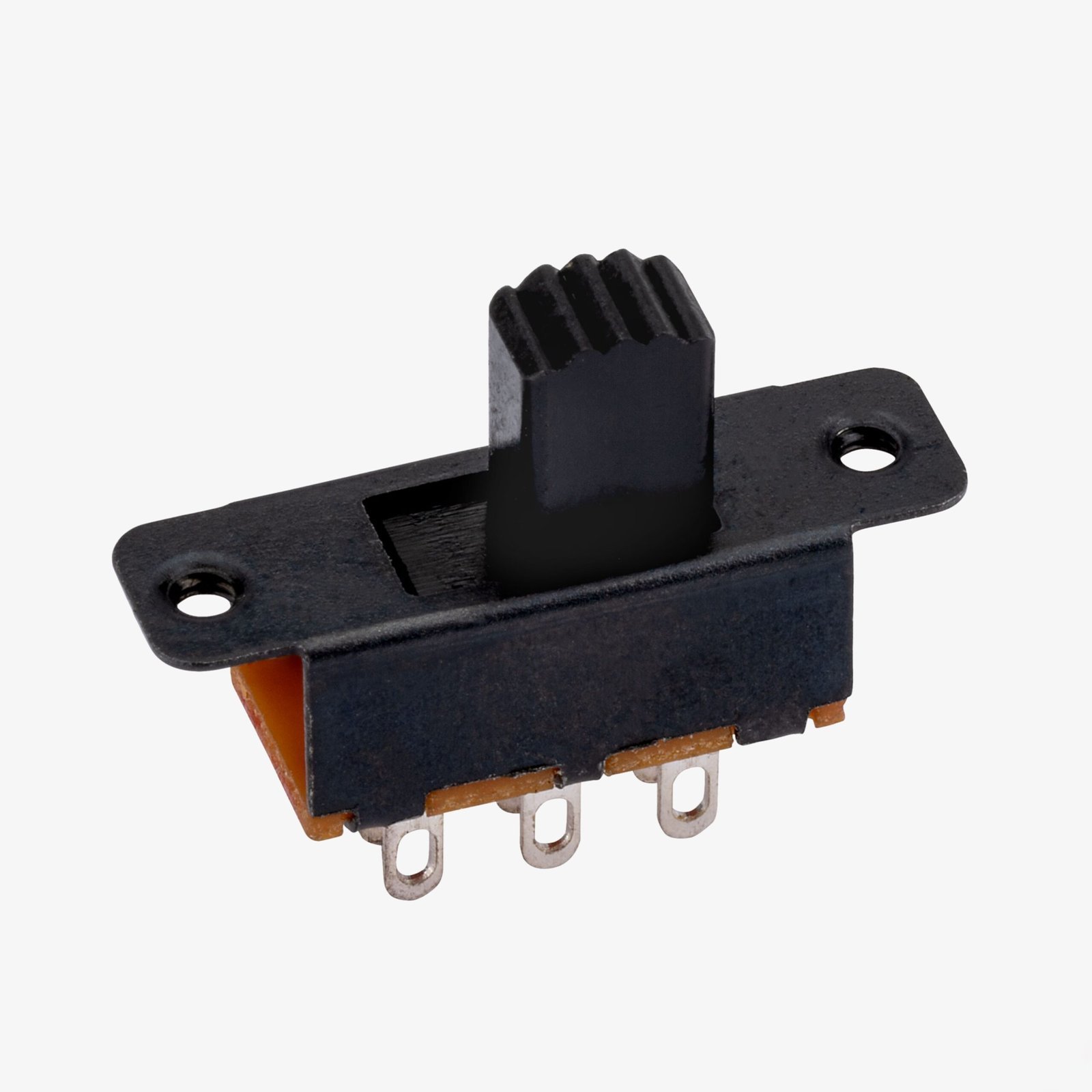

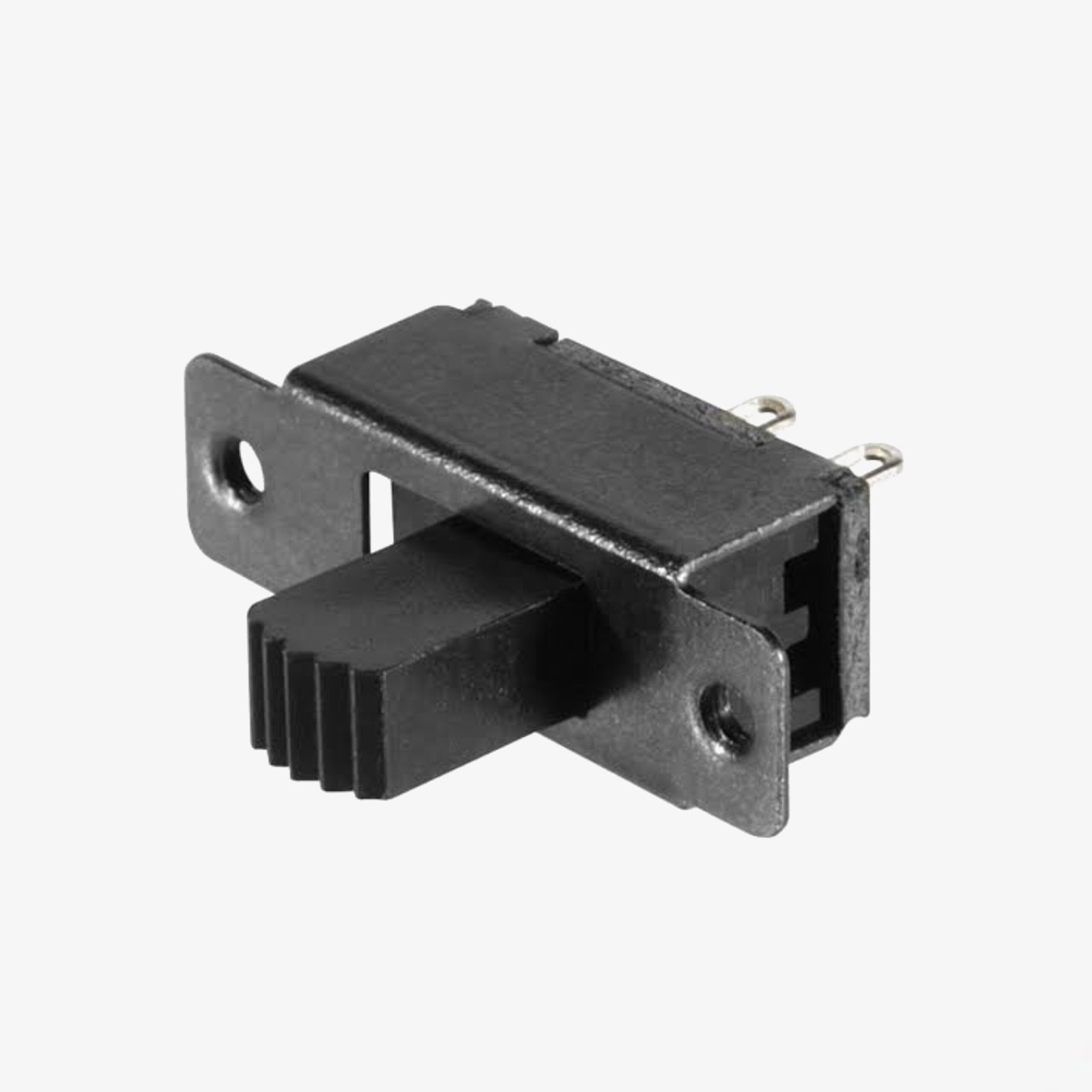

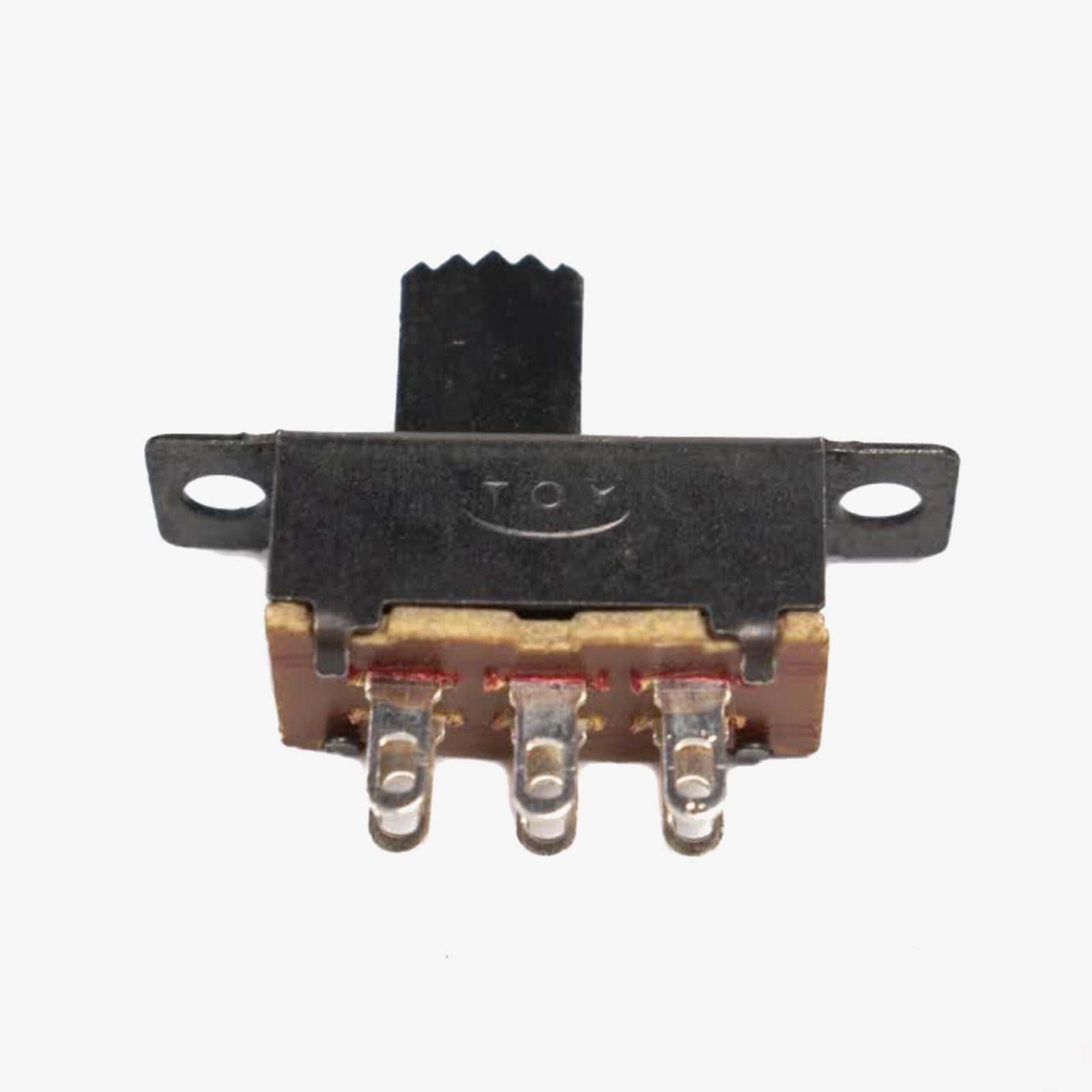

Mini DPDT Slide Switch (On-On, 6 Leg)

This Mini DPDT (Double Pole Double Throw) slide switch is a compact and reliable component ideal for various electronic projects requiring a small form factor. The switch operates in an On-On configuration, meaning it can connect each of its two poles to one of two terminals, enabling it to direct the current flow between two different paths. The switch features a 7mm actuator height for easy operation and comes with screw holes spaced 19mm apart for secure mounting.

Features & Specifications:

• 🔌 Type: Double Pole Double Throw (DPDT)
• 🔁 Configuration: On-On
• 📏 Actuator: 7mm Height for Easy Sliding
• 🧩 Terminals: 6 Legs for Secure Connections
• 🛠️ Mounting Holes: Screw Holes 19mm Apart for Easy Mounting
• 📐 Dimensions:
  • 📏 Length: 24mm
  • 📐 Height: 19mm
  • 📌 Width: 7.5mm
• ⚙️ Material: Durable Plastic and Metal Construction for Longevity and Reliability

Applications:

• ⚡ Control Systems: Ideal for Directing Current Flow in Small Electronic Circuits
• 🔀 Switching: Suitable for Use in Toggling Between Two Different Circuits
• 🔬 DIY Projects: Perfect for Custom Electronics Projects Due to Its Small Size and Easy Integration
• 🧪 Prototyping: Useful in Development and Testing of Electronic Designs

Benefits:

• ✅ Compact and Space-Saving Design
• 🔧 Easy to Operate with Smooth Sliding Action
• 🛡️ Provides Secure and Reliable Connections

Package Includes:

• 📦 1x Mini DPDT Slide Switch (On-On, 6 Leg)
