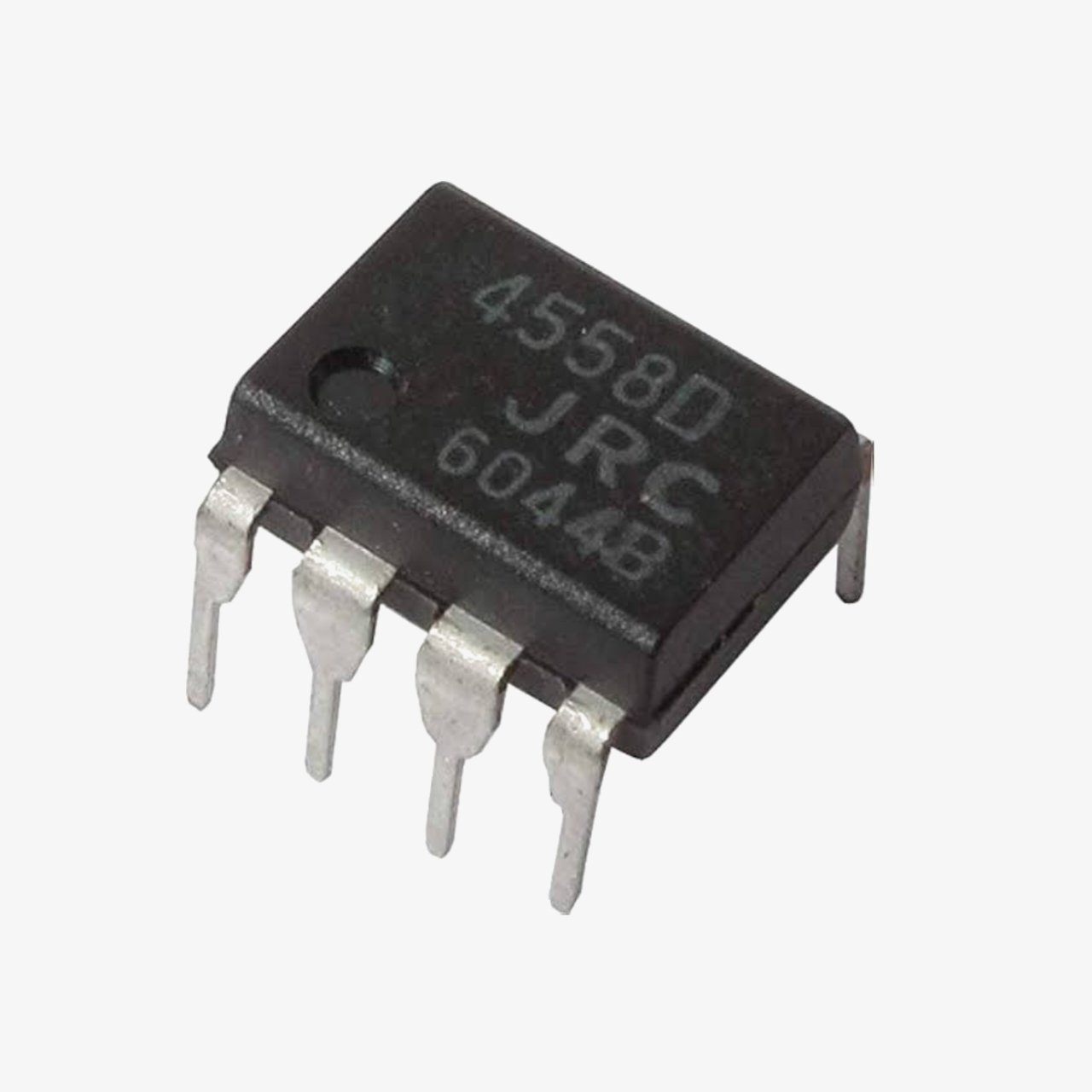

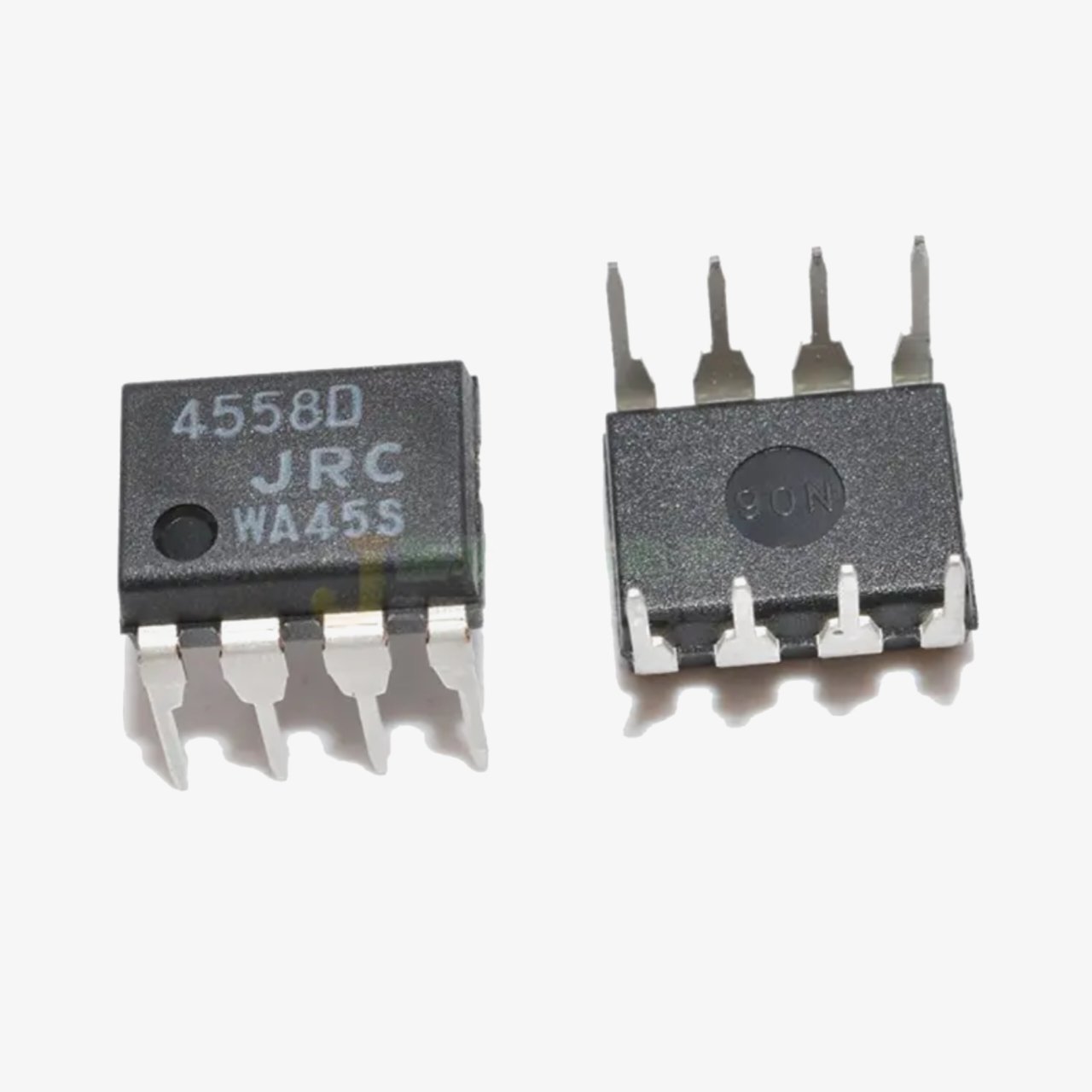

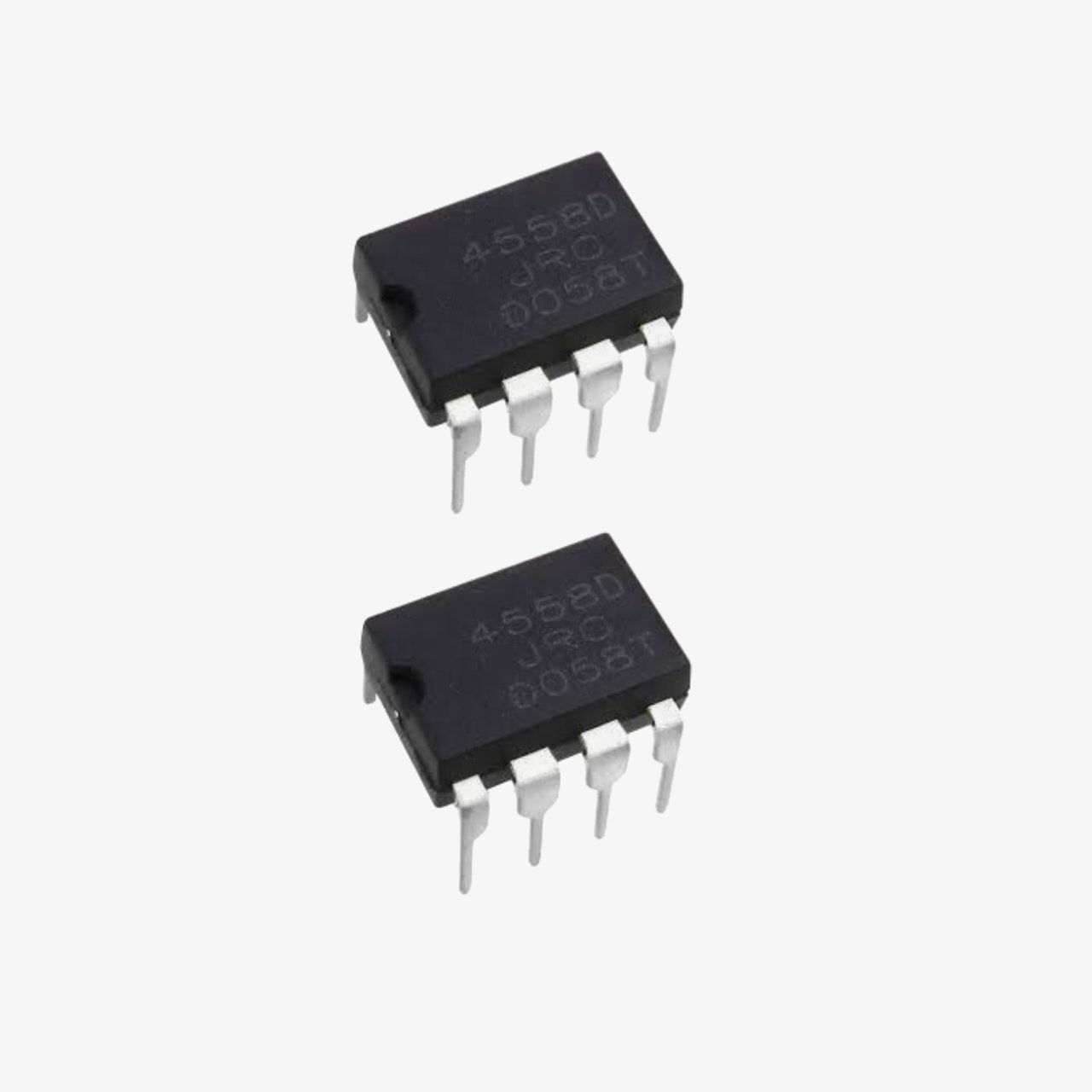

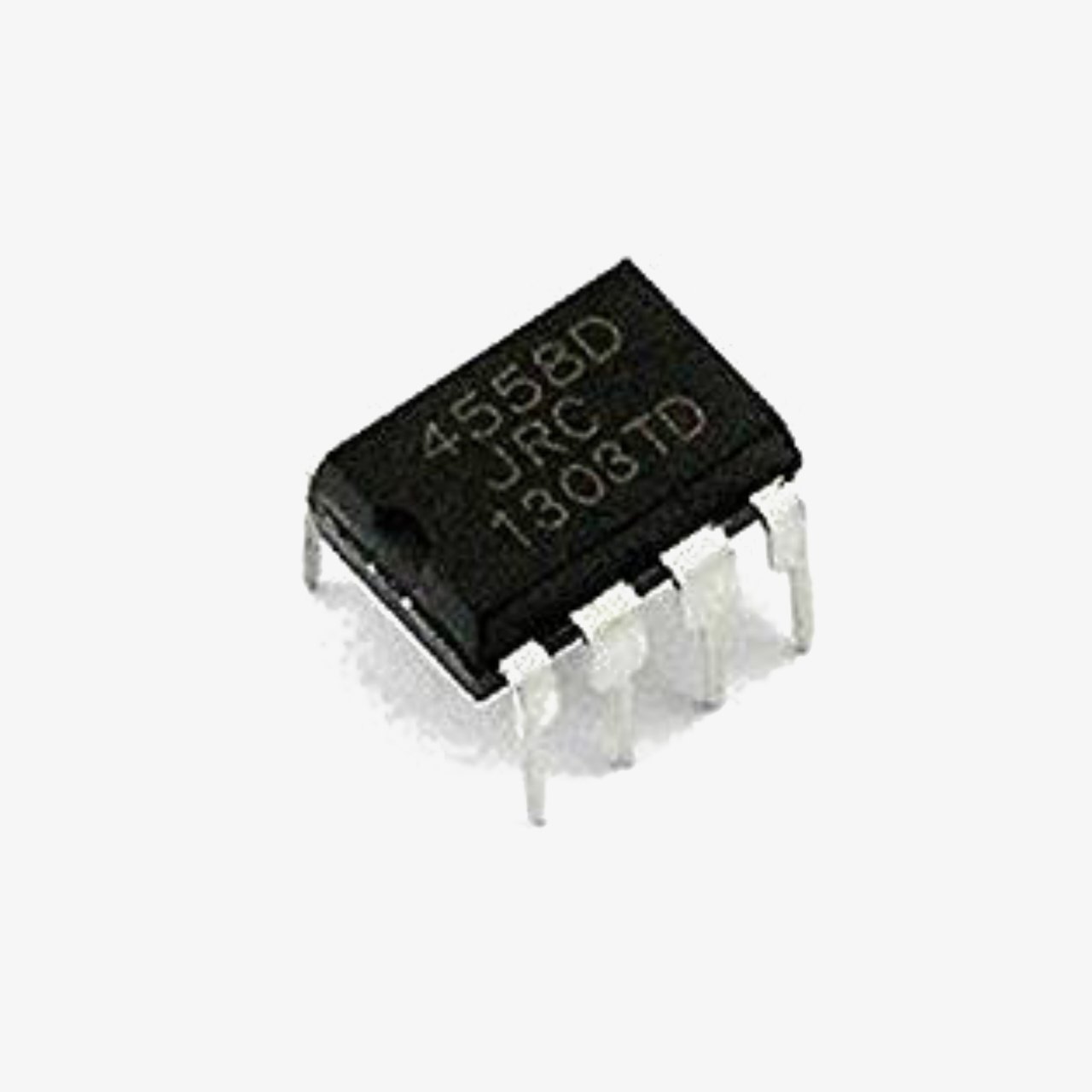

4558 Dual General-Purpose Operational Amplifier IC – 1 Pcs

The 4558 Dual Operational Amplifier IC (JRC4558D) is a reliable and versatile solution for general-purpose amplification needs. Built on a monolithic silicon chip, this IC offers high voltage gain and excellent input impedance, making it ideal for a wide range of applications. With a power supply range of ±4V to ±18V, it is suitable for transducer amplifiers, DC amplification blocks, and pedal circuits. Its compatibility with single-supply voltage systems simplifies integration, allowing it to operate directly from a standard 5V supply. Known for its low cost and reliability, the 4558 IC is a popular choice among hobbyists and professionals.

Key Features:

✔ Versatile Application: Suitable for general-purpose amplification and various electronic circuits.
✔ High Performance: Offers high voltage gain and excellent input impedance.
✔ Wide Power Supply Range: Operates between ±4V to ±18V for flexibility.
✔ Single-Supply Compatibility: Can run directly from a 5V power supply.
✔ Reliable Design: Monolithic dual operational amplifier with internal compensation.
✔ Cost-Effective: Affordable and widely used in DIY and professional projects.

Product Specifications:

⚡ IC Type: Dual Operational Amplifier (JRC4558D)
⚡ Voltage Range: ±4V to ±18V
⚡ Input Impedance: High, for sensitive signal amplification.
📏 Package: DIP-8 for easy PCB mounting.
📉 Application: Amplifiers, oscillators, filters, and signal processing circuits.

Ideal for:

🔋 Audio Circuits – High-quality amplification for audio signals.
📟 Signal Processing – Suitable for filters, oscillators, and transducer amplifiers.
🛠️ DIY Projects – Perfect for custom pedal circuits and amplifiers.

Package Includes:

📦 1 x 4558 Dual General-Purpose Operational Amplifier IC
