12v – 24v LED Light Controller & Dimmer for Single Color LED Strip

12v – 24v LED Light Controller & Dimmer for Single Color LED Strip

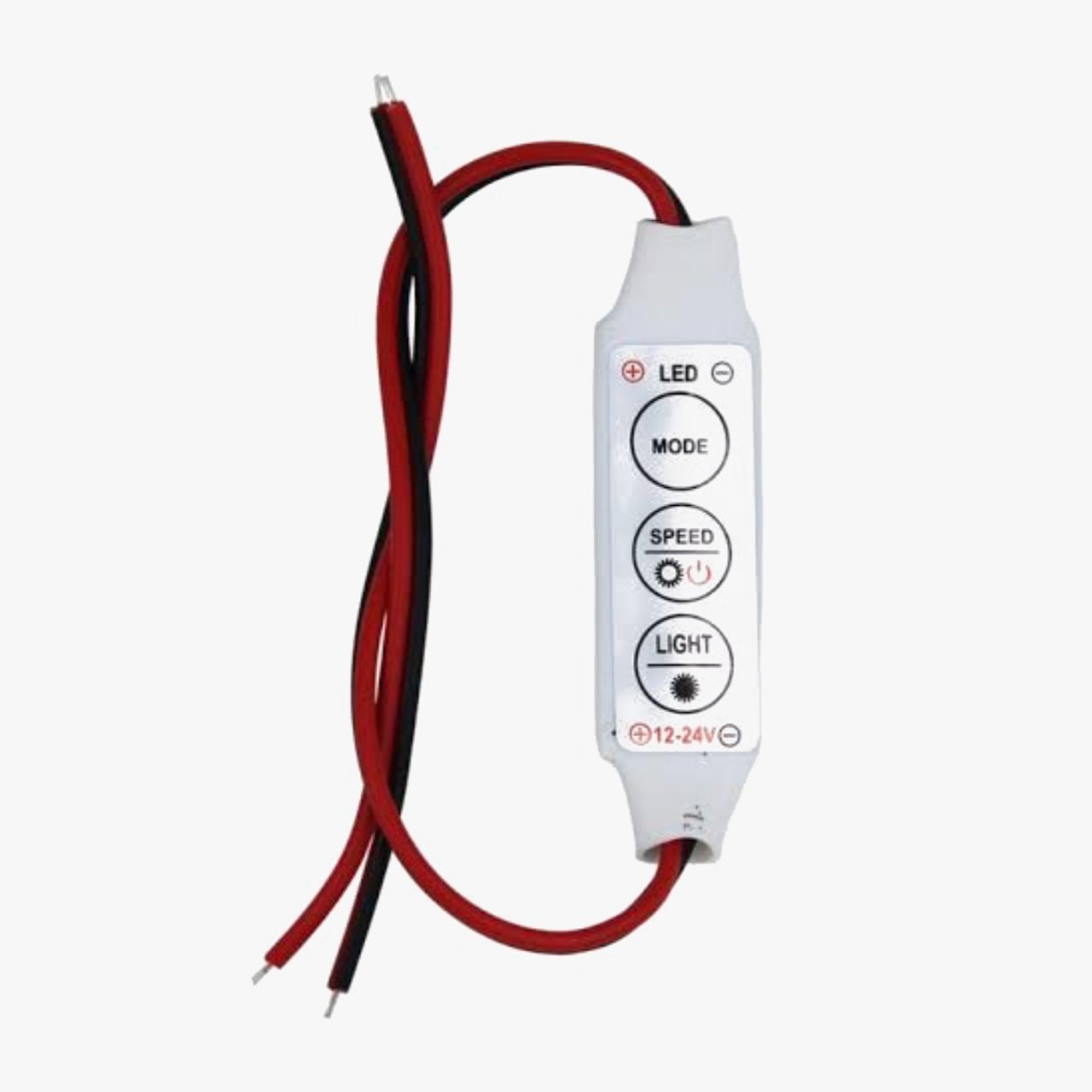

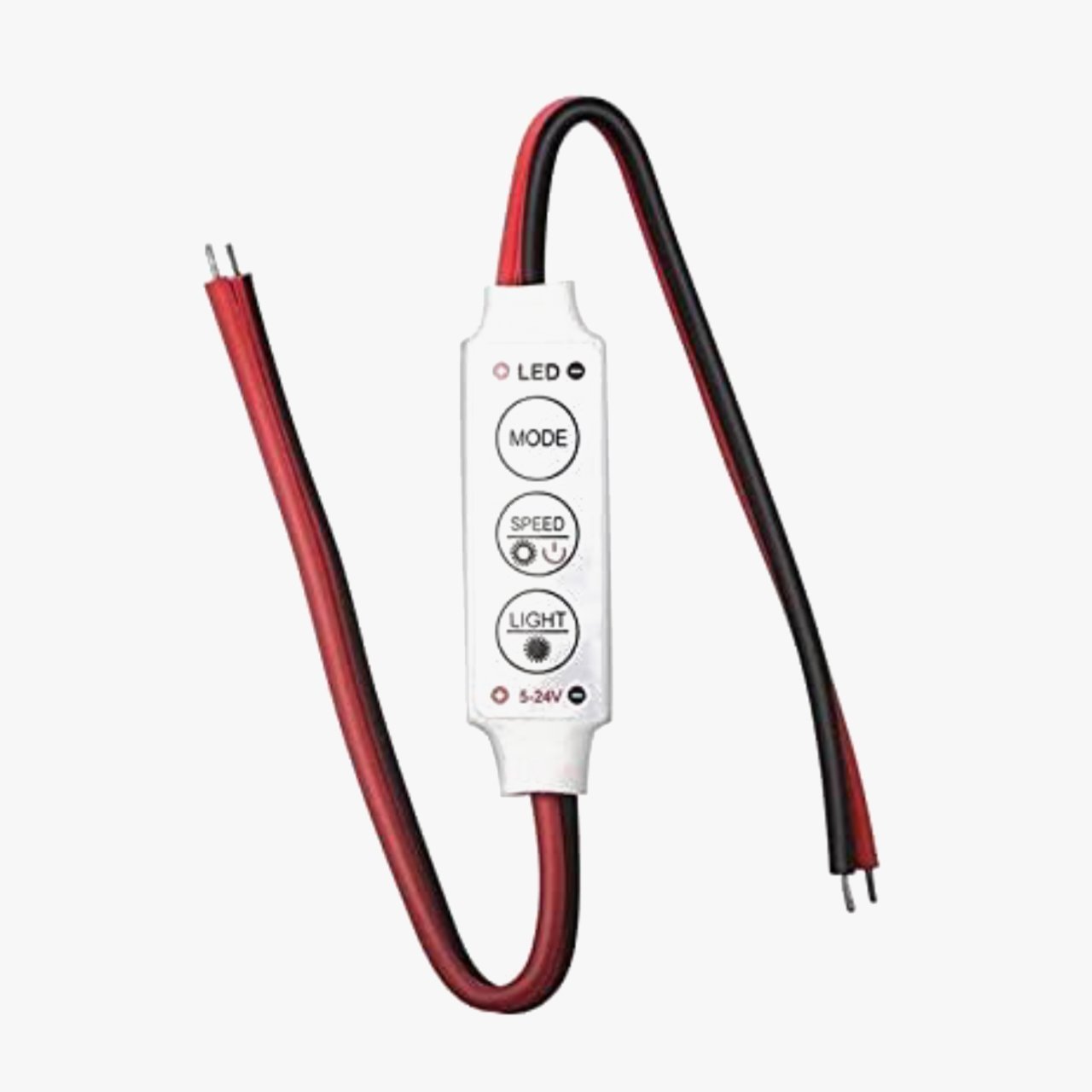

This ultra-slim, in-line touch LED dimmer controller is designed to control monochromatic LED strips. It offers convenient control over mode, speed, and brightness with a simple touch interface. With its auto memorizing function, the controller saves your last setting and reverts to it when turned back on.

Features:

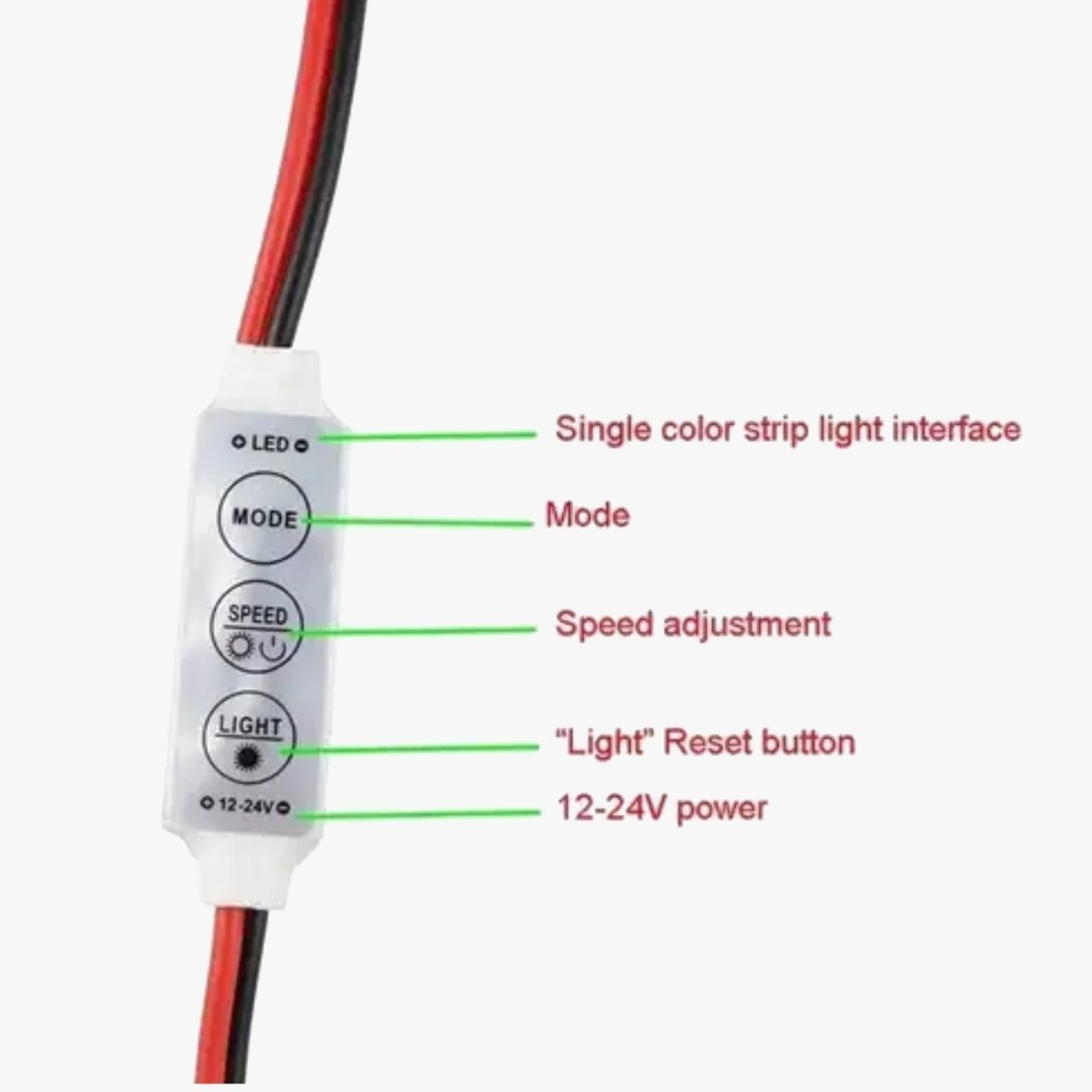

• Easy Operation: Change mode, speed, and brightness with just three keys.
• Dynamic Modes: Includes 8 dynamic modes such as static, fade, strobe, flash, etc., for single-color LEDs.
• Adjustable Brightness and Speed: Offers 8 brightness levels and 5 lighting speeds for single-color LEDs.
• Wide Voltage Range: Operates within DC 12V-24V, preventing reverse connection of power supply.
• Auto Memorizing Function: Saves your last setting for convenience.

Specifications:

• Voltage: DC 12-24V
• Output: 1 Channel
• Max Power Output: 144 watts
• Static Power Consumption: <1W

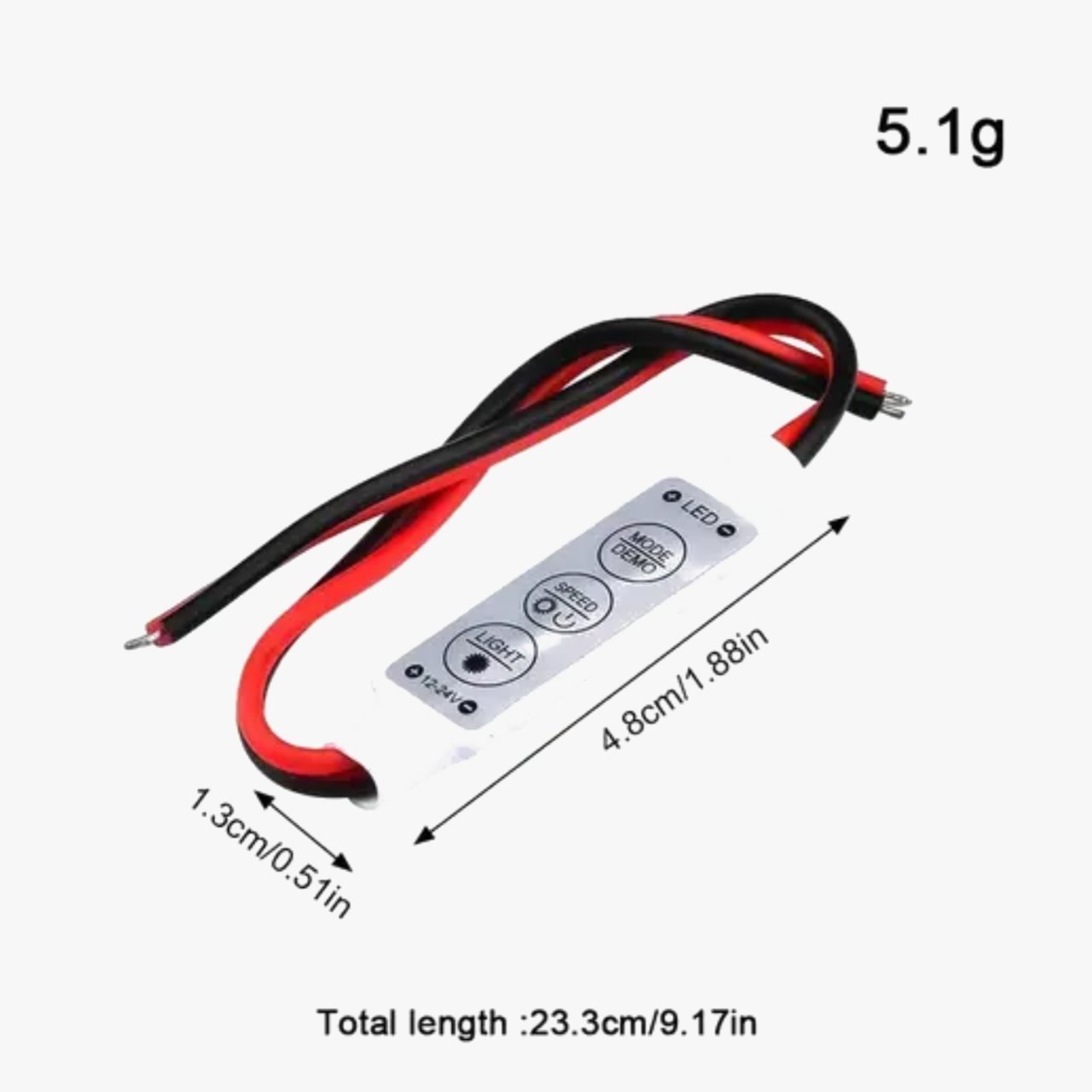

• Length: Approximately 225mm
• Working Temperature: -20°C to 60°C
• Connect Method: Common anode

Usage Tips:

1. Mode Selection:
   • Easily switch between 8 dynamic modes to achieve the desired lighting effect.
2. Brightness and Speed Adjustment:
   • Adjust brightness through 8 levels to suit your lighting needs.
   • Control the speed of dynamic modes with 5 different settings for perfect ambiance.
3. Installation:
   • Ensure proper connection following the common anode method.
   • Verify the working voltage is within the DC 12V-24V range to prevent damage.
4. Memory Function:
   • Utilize the auto memorizing feature to maintain preferred settings even after powering off.
5. Environment Suitability:
   • Suitable for various environments with a wide working temperature range of -20°C to 60°C.

Package Includes:

• 1 x Mini LED controller for single-color LED strip light
